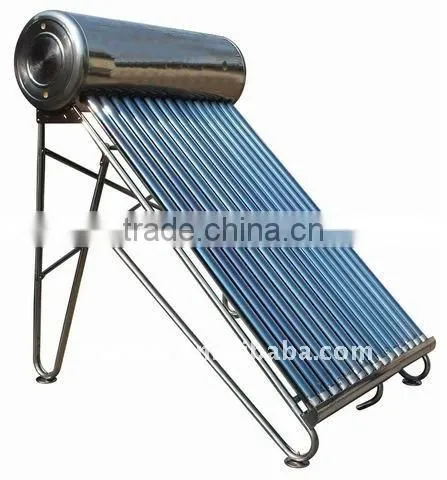

Homemade Non-pressurized Solar Heater 58*1800 mm Type
Negotiable
MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LFpower
Model Number:
SD-G2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Compact Pressurized Solar Water Heater With Evacuated Tube 58mm*1800mmNegotiableMOQ: 3 Sets -
Integrative Pressurized Copper Pipe Solar Water Heater With Anti-frezzseNegotiableMOQ: 3 Sets
-
Pre-heated Pressurized Solar Water Heater 150L,200Liters Tank HeatingUS$ 200 - 300MOQ: 3 Sets
-
Stainless Steel High Pressuried-heater Solar Water Heater 58*1800mmNegotiableMOQ: 3 Sets
-
Three Element Coating Tube Non-press Solar Water HeaterNegotiableMOQ: 3 Sets
Place of Origin
Zhejiang, China
Brand Name
LFpower
Model Number
SD-G2
Type
Non-Pressure
Application
Other, Water Heater, Commercial
Pipe Material
Glass
Specifications
Solar heater:1. stainless steel 304 Housing Material and Frame
2. CCC, CE, ISO9001 ISO14001
3. 5 years for whole system
Solar heater:
a)Vacuum Tube:
1. Evacuated Tube: tri-element tube;High boron and silicon content 3.3;Structure:Gradual change SS-AL-Nx/Cu selective absorption coating;Vacuum Degree:P<=5*10-4;Service Life:15 years
2.Dia(mm):58/47
3.Len(mm):1800/1500
b)Tank:
1.Dia outer/inner (mm): 470/360,420/310
2.Outer tank: stainless steel 304 BA/ stainless steel 304 2B
3.inner tank: stainless steel 3042B
4.Heat insulating layer: 55mm thickness polyurethane foam
c)Frame
1.Frame Material: Galvanized steel plate with plastic spraying 1.5mm thickness
2. Frame material:aluminum alloy with 2.0mm thickness
3.Frame material: stainless steel 304 with 1.2mm thickness.
d) Electric heater: 1.5Kw to 3Kw
Can produce according to customer's designated requirements
