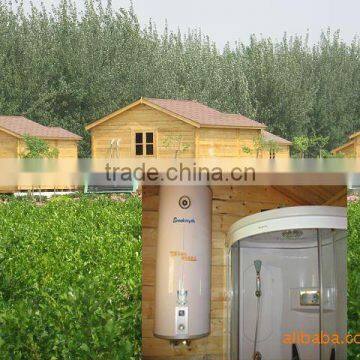

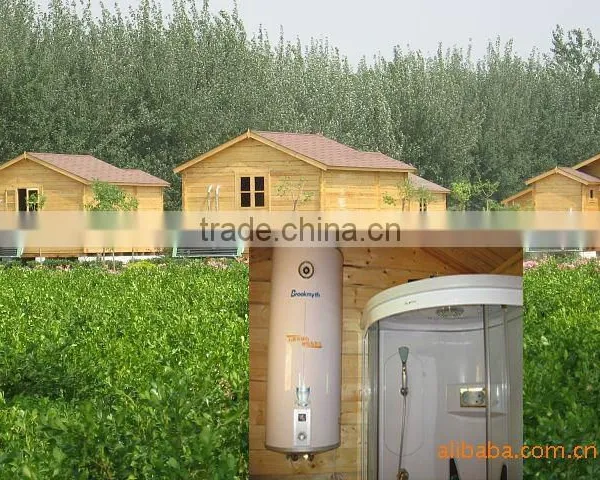

Help CenterTwo Copper Coil Split Heat Pipe Water Heater System
Related Products
-
Heat Pipe Solar Thermal Vacuum Tube Solar CollectorUS$ 100 - 800MOQ: 3 Sets -
Copper Heater Tube Solar Water Heater Tank 470NegotiableMOQ: 3 Sets
-
Copper Coil Solar Water Heater Tank 470mm Dia Out TankNegotiableMOQ: 3 Sets
-
Integrative Compact Solar Heating With Assistant Tank 5LNegotiableMOQ: 3 Sets
-
Pool Solar Water Heating for 50 Tons With Gas BoilUS$ 100 - 800MOQ: 3 Sets
Specifications
Water heater system1.EN12975 solar keymark
2.Anti-freezen & pressurized
3.10 years warranty
Water heater system
Working principle:
when the diffeference of collector temperature and tank temperature gets to the set value, the circulation system will start work. It will transmit the solar energy from solar collector to the tank.
solar water heater features:
a. Module design, arbitrary combination, harmonize with the building perfectly
b. Intelligent control and automatic operation
c. Anti-freeze: Using the anti-freezing liquid as the medium and the controller has
the anti-freezing function
d. Multifunction: bathing, washing, domestic heating etc.
e. Work at anytime and enjoyable.
f. Material of Model:
1) The pipeline is made of red copper and conducted by heat transfer medium liquid
2) Temperature preservation is equipped with standard electric water heater setting,
automatic temperature control exchanger, and increased anode magnesium bars
sticking to prevent furring
3) The insulating layer uses polyurethane bulk bubble and has a good effect of temperature preservation
4) Water tank (interior): Stainless steel inner tank
5) Manifold : aluminum alloy out casing & red copper flow passage
6) Glass tube: new trivalent element heat tube, borrosilicate glass 3.3
7) Solar working station
8) With heat pipe: anti-freezing > -35 degrees centigrade
9) Water capacity: 150L, 200L, 250L, 300L, 500L
10) Pressure: 6 Bars
11) Daily efficiency: >= 55%(>=42% in winter)
12) Heat preservation: 72h to 80h
13) Electric heater: 1.5Kw to 3Kw
| Solar collector(Heat pipe series)SC-H series | ||||||||||
| Model | SC-H-15-5818 | SC-H-18-5818 | SC-H-20-5818 | SC-H-24-5818 | SC-H-30-5818 | |||||
| Length of Tube | 1800mm | |||||||||
| Outer Diameter of Tube | φ58mm | |||||||||
| Tube Quantity | 15 | 18 | 20 | 24 | 30 | |||||
| Manifold | casing material,Aluminum Alloy,Thickness,1.8mm,Insulating layer,compressed rock wool | |||||||||
| Heat Pipe | pure red copper TU1+water,transfer power>=150W,Working pressure,4Mpa,welding pressure 4Mpa | |||||||||
| Dust Ring Gasket | Silicon Rubber | |||||||||
| Vacuum Tube | tri-element tube,High boron and silicon content 3.3,Structure,Gradual change SS-AL-Nx/Cu selective absorption coating,Vacuum Degree,P<=5*10-4,Service Life,10 years | |||||||||
| Mounting Frame | Aluminum Alloy,Thickness,1.8 mm, not have back-leg | |||||||||
| Rack Insert | ABS | |||||||||
| Dimension(CBM) | 0.24 | 0.32 | 0.33 | 0.39 | 0.5 | |||||
| Container Loading Quantity(set) | 20 | 102 | 78 | 77 | 63 | 57 | ||||
| 40 | 221 | 169 | 166 | 136 | 130 | |||||
| 40HQ | 278 | 213 | 209 | 172 | 171 | |||||
| Price(USD) | ||||||||||
