Home > Industrial Equipment & Components > Engine & Part > Engine > Two Stroke Power Outboard Motors Jet T3.5BMS for 3.5HP Motor

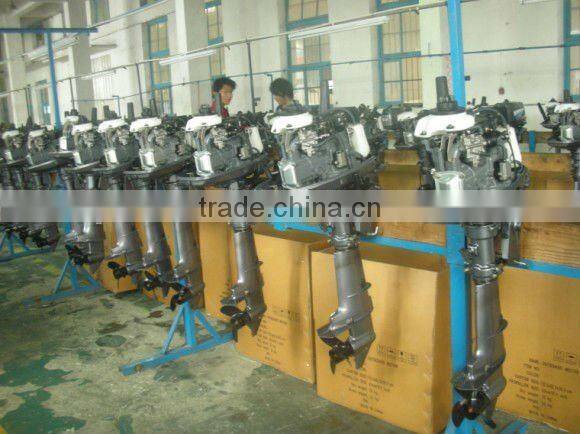

Two Stroke Power Outboard Motors Jet T3.5BMS for 3.5HP Motor
Negotiable
MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Engine:
2 Stroke
Engine Capacity:
> 6L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Small Power Outboard Motors Sample T2BMS , 2HPNegotiableMOQ: 3 Sets -
Impeller Type Outboard Motor 4 Stroke F4BMS for 4HPNegotiableMOQ: 3 Sets
-
Two-stroke Outboard Motor Boats F9.9BMS for 9.9hp Short ShaftNegotiableMOQ: 3 Sets
-
Outboard Motors Long Shaft T15BML Two Stroke 15hpNegotiableMOQ: 5 Sets
-
Gasoline Tohatsu Outboard Motors Cover 4hpNegotiableMOQ: 3 Sets
Condition
New
Engine
2 Stroke
Fuel Type
Gasoline
Cylinders
1
Engine Position
Outboard
Dimensions (L x W x H) (mm)
103*50.5*43
Specifications
Outboard motor,1.the MOQ have 5 sets
2.have short shaft,long shaft stroke ,4 stroke
3.have 1 year for the out board motor.
Outboard motor,
| MODEL(2 stroke) | T2BMS | T2.6BMS | T3.5BMS | T4BMS | T5BMS | T6BMS | T9.9BMS | T9.9BML | T15BMS | T15BML |
| H.P. | 2HP | 2.6HP | 3.5HP | 4HP | 5HP | 6HP | 9.9HP | 9.9HP | 15HP | 15HP |
| (mm/in)OVERALL LENGTH | 550(21.6) | 605(23.8) | 620(24.4) | 700(27.6) | 700(27.6) | 700(27.6) | 873(34.4) | 873(34.4) | 873(34.4) | 873(34.4) |
| (mm/in)OVERALL WIDTH | 220(8.6) | 200(7.9) | 220(8.6) | 310(12.2) | 310(12.2) | 330(13.0) | 330(13.0) | 330(13.0) | ||
| (mm/in)OVERALL HEIGH | 920(36.2) | 945(37.2) | 960(37.8) | 1007(39.6) | 1007(39.6) | 1007(39.6) | 1167(45.9) | 1167(45.9) | 1167(45.9) | 1167(45.9) |
| (mm/in)TRANSOM HEIGH | 417(16.4) | 417(16.4) | 432(17.0) | 435(17.1) | 435(17.1) | 435(17.1) | 381(15.3) | 567(22.3) | 381(15.3) | 567(22.3) |
| ENGINE TYPE | 2 stroke | 2 stroke | 2 stroke | 2 stroke | 2 stroke | 2 stroke | 2 stroke | 2 stroke | 2 stroke | 2 stroke |
| DISPLACEMENT(cc) | 43 | 50 | 74.6 | 102 | 102 | 102 | 246 | 246 | 246 | 246 |
| BORE*STROKE(mm) | 40*34 | 42*36 | 47*43 | 55*43 | 55*43 | 56*50 | 56*50 | 56*50 | 56*50 | |
| MAX. OUTPUT(hp/kw) | 1.4(2) | 1.9(2.6) | 2.5(3.5) | 2.9(4) | 3.6(5) | 4.4(6) | 7.3(9.9) | 11(15) | 7.3(9.9) | 11(15) |
| RPM | 4000-5500 | 3800-5200 | 4200-5300 | 4500-5500 | 4500-5500 | 4500-5500 | 4500-5500 | 4500-5500 | 4500-5500 | 4500-5500 |
| STARTING SYSTEM | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL |
| IDLING SPEED(IN NEUTRAL) | 1400-1500 | 1250-1350 | 1250-1350 | 1000-1100 | 1000-1100 | 1000-1100 | 700-800 | 700-800 | 700-800 | 700-800 |
| TRIM METHOD | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL |
| IGNITION SYSTEM | TCI | CDI | CDI | CDI | CDI | CDI | CDI | CDI | CDI | CDI |
| CONTROL SYSTEM | TILLER | TILLER | TILLER | TILLER | TILLER | TILLER | TILLER | TILLER | TILLER | TILLER |
| GEAR POSITIONS | Forward-neutral | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse | ||
| PROPELLER(in) | 3*7 1/4*5" | 3*7 1/4*5" | 3*7 1/4"*6" | 3*7 4/5"*8" | 3*7 4/5"*8" | 3*7 4/5"*8" | 3*9 1/4"*8" | 3*9 1/4"*8" | 3*9 1/4"*8" | 3*9 1/4"*8" |
| Integral fuel tank capacity(L) | 1.1 | 1.4 | 1.5 | 2.5 | 2.5 | 2.5 | ||||
| Separate fuel tank capacity(L) | 12 | 12 | 12 | 24 | 24 | 24 | 24 | |||
| WEIGHT(KG) | 11 | 11 | 13 | 20 | 20 | 20 | 36 | 37.5 | 36 | 37.5 |
| Fuel :Oil RATIO | 25:1 | 50:1 | 50:1 | 50:1 | 50:1 | 50:1 | 50:1 | 50:1 | 50:1 | 50:1 |
| PACKED CASE SIZE(cm) | 95*41*27.5 | 95*41*27.5 | 103*50.5*43 | 112.5*62.5*38.5 | 112.5*62.5*38.5 | 112.5*62.5*38.5 | 134.5*80*51 | 134.5*80*51 | 134.5*80*51 | 134.5*80*51 |
| CONTAINER LOADING20/40/40HQ) | 270/560/640 | 270/560/640 | 256/550/600 | 65/140 | 65/140 | 65/140 | 48/96/120 | 48/96/120 | 48/96/120 | 48/96/120 |
