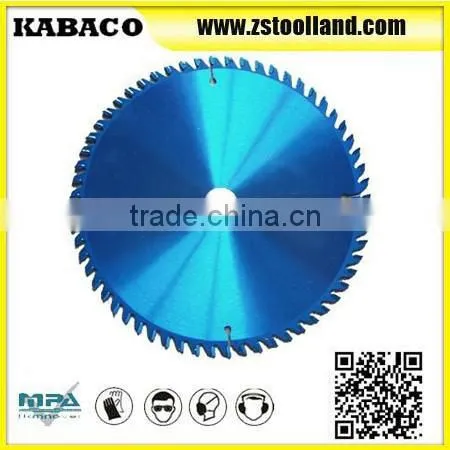

Tungsten Carbide T.C.T. Saw Blade For Wood cutting

FOB Price

USD $1.05 - $30.36 / Piece

200 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai Port

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	KABACO, OEM	Model Number:	TCT
Type:	Saw Blade	Blade Material:	Tungsten Carbide Steel	Finishing:	Other, upon request
Size:	4"4.5"5"7"9"10"12"

Product Description

Tungsten Carbide T.C.T. Saw Blade For Wood cutting

T.C.T. Saw Blade For Wood T.C.T. Saw Blade For WoodT.C.T. Saw Blade For Wood T.C.T. Saw Blade For Wood
These blades are suitable for cutting woods,boards,alumiums alloy steel,plastics,non-ferrous metals, steels, composite material. T.C.T. Saw Blade For WoodT.C.T. Saw Blade For Wood T.C.T. Saw Blade For Wood T.C.T. Saw Blade For Wood T.C.T. Saw Blade For WoodT.C.T. Saw Blade For Wood T.C.T. Saw Blade

Features: T.C.T. Saw Blade For WoodT.C.T. Saw Blade For Wood T.C.T. Saw Blade For Wood

1. Material of Teeth: Micro Grained Tungsten Carbide Tips supplied from the worlds most advanced tungsten manufacturers ; T.C.T. Saw Blade
2. Material of Saw Body: perfectly tensioned steel plates for true run;
3. Expansion Slot: Laser Cut Expansion Slots allow blade to expand and contact during heated operation;
4 . Noise Reduction Slots: Laser Cut Resin filled noise reduction slots on low noise blades;

5 .Tooth Model: Left & Right side bevel teeth, alternate top bevel teeth, trapeziform-flat teeth, flat teeth.

General Purpose of T.C.T. Saw Blade For wood cutting

General Purpose of T.C.T. Saw Blade For Wood Cutting

OD	Bore Diameter mm	Thckness mm	T-type	Teeth No.
105mm/4''	20	1.2	ZY	24,30,40
115mm/4.5"	20	1.2	ZY	24,30,40
125mm/5”	20	1.2	ZY	24,30,40
150mm/6"	25.4	1.2	ZY	24,30,40,60
180mm/7"	25.4	1.5	ZY	24,30,40,60,80
205mm/8”	25.4	1.5	ZY	24,30,40,60
235mm/9”	25.4/30	1.8	ZY	30,40,60,80
255mm/10”	25.4/30	2.0	ZY	40,60,80,100,120
305mm/12”	25.4/30	2.2	ZY	40,60,80,100,120
355mm/14”	25.4/30	2.2	ZY	40,60,80,100,120
405mm/16”	25.4/30	2.5	ZY	60,80,100,120
455mm/18''	25.4/30	2.5/3.0	ZY	60,80,100,120
500mm/20''	25.4/30	2.5/3.0	ZY	60,80,100,120
550mm/22''	25.4/30	2.5/3.0	ZY	60,80,100,120

T.C.T Saw Blades for Cutting Aluminum and Other Alloy Materials

OD	Bore Diameter mm	Thickness mm	T-type	Teeth NO.
205mm/8''	25.4	1.8	TP	100
235mm/9''	25.4/30	1.8	TP	100
255mm/10''	25.4/30	2.0	TP	80/100
305mm/12''	25.4/30	2.2	TP	80/100/120
355mm/14''	25.4/30	2.2	TP	100/120
405mm/16''	25.4/30	2.5	TP	100/120
455mm/18''	25.4/30	2.5	TP	100/120
500mm/20''	25.4/30	2.5	TP	100/120

T.C.T Saw Blade for Cutting Steel Tube,Mild Steel,Copper Tube etc.

OD	Bore Diameter mm	Thickness mm	T-type	Teeth No.
100mm/4''	19	1.2	PP	20-30
125mm/5''	20	1.4	PP	20-30
150mm/6''	20	1.4	PP	24-48
185mm/7''	20	1.4	PP	24-48
200mm/8''	20	1.6	PP	24-60
230mm/9''	20/25.4	1.6	PP	24-60
255mm/10''	20/25.4	1.6	PP	24-80

T.C.T. Saw Blade Occasion Problems, Cause and Recommendation

PROBLEM	CUUSE	RECOMMENDATION
Blade does not cut	Insufficient power chosen to permit saw blade to cut properly	Check power
Uneven segment wear	Misalignment of saw blade,blade is worn out of round	Check the machine and replace worn equipment.
Excessive wear	Horsepower and RPM are too high	Ensure proper HP and RPM
Cracken core	Saw blade is too hard for the material being cut,excessive cutting pressue and overheating cause loss of tension,so unblanced steel core cracks	C the dealer or manufacturer and use saw blde with a soft bond.
Loss of Tension	Saw blade is excessively hard for the material	Make sure saw blade is correct,consult the manufacturer
Arbor hole out of round	Saw blade is seated improperly	Make sure saw blade is properly seated on main shaft,tighen flanges properly.
Vibration	Improper power and RPM Chosen	Ensure proper RPM and power
