Home > Industrial Equipment & Components > Cutter & Tongs > Saw Blade > TCT Circle Saw Blade for Panels Cutting
US$ 1.05 - 30.36
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KABACO
Model Number:
TCT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TCT Saw Blade for Panels CuttingUS$ 1.05 - 30.36MOQ: 200 Pieces -
7'' TCT Saw Blade For Wood CuttingUS$ 1.05 - 30.36MOQ: 200 Pieces
-
MPA Approved TCT Saw Blade For Cutting Plastic Steel and AluminumUS$ 1.05 - 30.36MOQ: 200 Pieces
-
MPA Approved TCT Saw Blade For Wood CuttingUS$ 1.05 - 30.36MOQ: 200 Pieces
-
Professional Tungsten Carbide TCT Saw Blade For WoodUS$ 1.05 - 30.36MOQ: 200 Pieces
Place of Origin
Jiangsu, China
Brand Name
KABACO
Model Number
TCT
Type
Saw Blade
Blade Material
Tungsten Carbide Steel
Finishing
Other, upon request
Size
TCT saw blade
tct saw blade for panel tct saw blade for panel

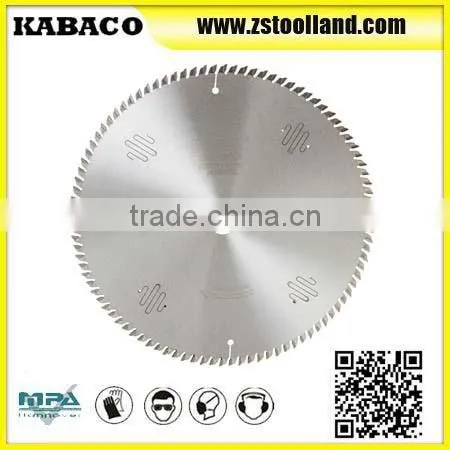

TCT CircleSaw Blade for Panels Cutting
tct saw blade for panel tct saw blade for panel
These blades are suitable for cutting double faced laminated chipboard without chiping,specially designed with a negative radial angle,it is ideal for table saws notfitted with scorer..tct saw blade for panel tct saw blade for panel
Tungsten carbide TCT Saw Blade For Wood cutting
General Purpose of T.C.T. Saw Blade For Wood Cutting
| OD | Bore Diameter mm | Thckness mm | T-type | Teeth No. |
| 105mm/4'' | 20 | 1.2 | ZY | 24,30,40 |
| 115mm/4.5" | 20 | 1.2 | ZY | 24,30,40 |
| 125mm/5” | 20 | 1.2 | ZY | 24,30,40 |
| 150mm/6" | 25.4 | 1.2 | ZY | 24,30,40,60 |
180mm/7" | 25.4 | 1.5 | ZY | 24,30,40,60,80 |
| 205mm/8” | 25.4 | 1.5 | ZY | 24,30,40,60 |
| 235mm/9” | 25.4/30 | 1.8 | ZY | 30,40,60,80 |
| 255mm/10” | 25.4/30 | 2.0 | ZY | 40,60,80,100,120 |
| 305mm/12” | 25.4/30 | 2.2 | ZY | 40,60,80,100,120 |
| 355mm/14” | 25.4/30 | 2.2 | ZY | 40,60,80,100,120 |
| 405mm/16” | 25.4/30 | 2.5 | ZY | 60,80,100,120 |
| 455mm/18'' | 25.4/30 | 2.5/3.0 | ZY | 60,80,100,120 |
| 500mm/20'' | 25.4/30 | 2.5/3.0 | ZY | 60,80,100,120 |
| 550mm/22'' | 25.4/30 | 2.5/3.0 | ZY | 60,80,100,120 |
T.C.T Saw Blades for Cutting Aluminum and Other Alloy Materials
| OD | Bore Diameter mm | Thickness mm | T-type | Teeth NO. |
| 205mm/8'' | 25.4 | 1.8 | TP | 100 |
| 235mm/9'' | 25.4/30 | 1.8 | TP | 100 |
| 255mm/10'' | 25.4/30 | 2.0 | TP | 80/100 |
| 305mm/12'' | 25.4/30 | 2.2 | TP | 80/100/120 |
| 355mm/14'' | 25.4/30 | 2.2 | TP | 100/120 |
| 405mm/16'' | 25.4/30 | 2.5 | TP | 100/120 |
| 455mm/18'' | 25.4/30 | 2.5 | TP | 100/120 |
| 500mm/20'' | 25.4/30 | 2.5 | TP | 100/120 |
T.C.T Saw Blade for Cutting Steel Tube,Mild Steel,Copper Tube etc.
| OD | Bore Diameter mm | Thickness mm | T-type | Teeth No. |
| 100mm/4'' | 19 | 1.2 | PP | 20-30 |
| 125mm/5'' | 20 | 1.4 | PP | 20-30 |
| 150mm/6'' | 20 | 1.4 | PP | 24-48 |
| 185mm/7'' | 20 | 1.4 | PP | 24-48 |
| 200mm/8'' | 20 | 1.6 | PP | 24-60 |
| 230mm/9'' | 20/25.4 | 1.6 | PP | 24-60 |
| 255mm/10'' | 20/25.4 | 1.6 | PP | 24-80 |
Other size also available
T.C.T. Saw Blade Occasion Problems, Cause and Recommendation
| PROBLEM | CUUSE | RECOMMENDATION |
| Blade does not cut | Insufficient power chosen to permit saw blade to cut properly | Check power |
| Uneven segment wear | Misalignment of saw blade,blade is worn out of round | Check the machine and replace worn equipment. |
| Excessive wear | Horsepower and RPM are too high | Ensure proper HP and RPM |
| Cracken core | Saw blade is too hard for the material being cut,excessive cutting pressue and overheating cause loss of tension,so unblanced steel core cracks | C the dealer or manufacturer and use saw blde with a soft bond. |
| Loss of Tension | Saw blade is excessively hard for the material | Make sure saw blade is correct,consult the manufacturer |
| Arbor hole out of round | Saw blade is seated improperly | Make sure saw blade is properly seated on main shaft,tighen flanges properly. |
| Vibration | Improper power and RPM Chosen | Ensure proper RPM and power |
