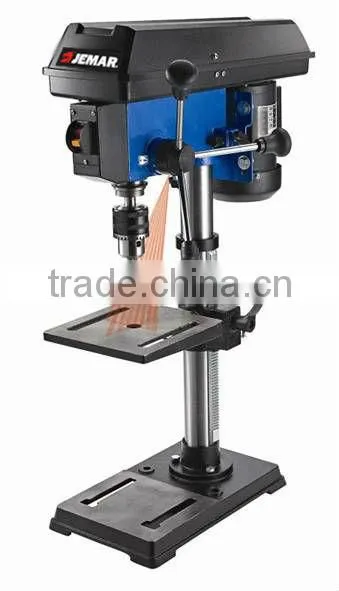

Help CenterJBD-516 16mm Bench Drill Press
US$ 30 - 80
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
JEMAR
Model Number:
JBD516
Drill Type:
Drill Press
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1800W 10" Miter Saw JCMS1825LUS$ 70 - 100MOQ: 100 Pieces -
SMS255 2100W 10" Miter SawUS$ 50 - 200MOQ: 140 Pieces
-
JMS-2000L 2000W 10" Miter Saw With Laser GuideUS$ 100 - 200MOQ: 125 Pieces
-
DSMS305 12" Compound Miter SawUS$ 100 - 200MOQ: 100 Pieces
-
JFO-250 1800W Flipover Saw Miter SawUS$ 100 - 200MOQ: 300 Pieces
Brand Name
JEMAR
Model Number
JBD516
Drill Type
Drill Press
Application
wood, plastic, metal
Frequency
50Hz
Max. Drilling Diameter
16mm
No-Load Speed
580~2650RPM
Rated Input Power
500W
Rated Voltage
230V
Weight
23.5kg
Specifications
1) 500W2) 5 spindle speeds
3) 16mm drilling capacity
4) Locking depth stop
5) Fully adjustable table with angle indicator
FEATURES:
1) Plastic Cover
2) Rack and pinion table adjustment
3) Table tilts 0-45° left or right
4) Adjustable depth Stop for quick and easy drilling
SPECIFICATIONS:
Motor: 230V, 50HZ, 500W
Max. Drilling Capacity: 16MM
Spindle Travel: 50mm
Spindle Taper: MT2
Column Diameter: 50mm
Spindle Speed: 5 speed, 580~2650RPM
Table Size: 185x185MM
Base size: 340X209MM
Laser Guide: Yes
Chuck Size: 16mm
Max. Distance From Spindle Axis To Surface Of Colum: 127MM
Max.Distance From Spindle End to surface of table: 321MM
Max Distance from spindle end to surface of base: 439MM
packing size: 595X435X267MM
Loading Amount: 380 pcs/20", 808pcs/40"
G.W/N.W: 23.5/21.5KGS
Other models in the range:
| JBD-16 | JDP-16 | JBD-13 | |
| Voltage: | 230V 50Hz | 230V 50Hz | 230V 50Hz |
| Power input: | 550W | 550W | 250W |
| Max. drilling capacity: | 16mm | 16mm | 13mm |
| Chuck capacity: | 3-16mm | 3-16mm | 1.5-13mm |
| Spindle taper: | MT2 | MT2 | MT2 |
| Speeds: | 215-3,130MIN-1 | 215-3,130MIN-1 | 625-2500min-1 |
| Swing: | 169mm | 169mm | 104mm |
| Spindle travel: | 80mm | 80mm | 50mm |
| Height: | 995mm | 1580mm | 580mm |
| Distance-spindle to base: | 640mm | 1210mm | 290mm |
| Max. distance-spindle to table: | 450mm | 775mm | 200mm |
| Diameter of table: | 290mm | 290mm | 160X160mm |
| Net weight: | 46.00kgs | 51.50kgs | 19.00kgs |
