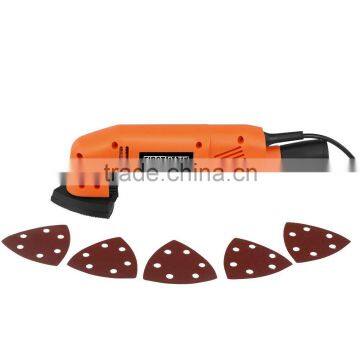

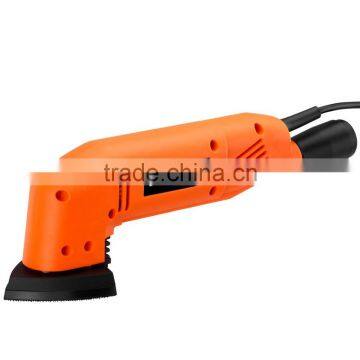

280w Hot Sale Electric Orbital Sanders Tools

 Features of orbital sander:

1.Double insulated.

2.Easy grip, ergonomic design for optimal handling.

3.All ball and roller bearing for smooth running.

4.Precise finishing in confined areas.

5.Slipping switch for easy permanent operation.

6.Hook-and-loop sanding paper installation.

7.Sanding pad accepts standard punched sanding paper.

8.Integrated dust gangway & vacuum connector for dust extraction.

9.Variable-speed dial matches speed to the application.

Using the dust extraction system

This orbital sander is designed to be connected to a household vacuum cleaner hose or workshop dust extraction system. This is the preferred and most effective method of dust extraction.

Attach a suitable vacuum hose to the Dust Extraction Port.

Selecting the right grade of sanding sheet

Sanding sheets are available in a variety of different grades.

Coarse (60 grit),

Medium (120 grit)

Fine (240 grit).

Use a coarse grit to sand down rough finishes medium grit to smooth the work, and fine grit to finish off.

Always use good quality sanding sheets to maximise the quality of the finished task.

It is advisable to do a trial run on a scrap piece of material to determine the optimum grades of sandpaper for a particular job. If there are still marks on your work after sanding try either going back to a coarser grade and sanding the marks out before recommencing with the original choice of grit ,or try using a new piece of sandpaper to eliminate the unwanted marks before going on to a finer grit and finishing the job.

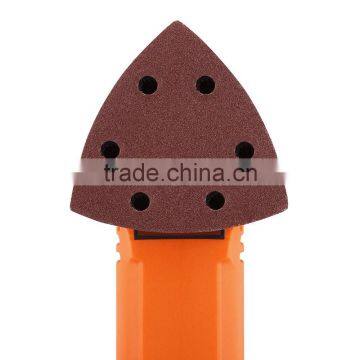

Fitting a sanding sheet

In order for the dust extraction system to function, this orbital sander must only be used with punched sanding sheets with holes that match the holes in the Sanding Base:

Remove the old sanding sheet (if fitted), by peeling it away from the Hook and Loop Sanding Base.

Remove any dust or debris from the Hook and loop Sanding Base.

Match the holes in a suitable sanding sheet with the holes in the Hook Loop Sanding Base.

Simply press the sanding sheet on to the pad to attach it.

Operation-orbital sander

Connect the plug to the power supply.

Hold the triangle sander securely by the Main Grip.

Ensure the tool is not in contact with the work piece before commencing with switching on.

Toggle the ON/OFF Switch to the “1” position, to start the machine. Toggle the ON/OFF Switch into the “0” position, to stop the machine.
