430W 125mm diy cordless electric wood sanders wood sanders
- 60000 Piece / Pieces per Month
- shanghai/ningbo/shenzhen/qingdao
- T/T L/C D/P D/A Credit Card PayPal
- GuangZhou HT Advanced Hot Sell Industrial Grade Palm Sander, Sanding Equipemnt, Angle Grinder, Orbital Sander
- Beltgrinder is manufactured Multi-purpose Belt Sharpener distributors
- Belt Grinding Machine, Distributor of Abrasive Belt Grinding Machines
- SNUOK Triangle Belt Sander Tube Polisher
- Multifunctional industrial belt sander Aluminum copper belt sander edge grinding and polishing machine
- Hand abrasive belt grinder Deburring grinder Belt metal polishing machine
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | FIRSTRATE electric wood sanders | Model Number: | OS43001 electric wood sanders |
Power Source: | Electricity | Variable Speed: | Yes | Rated Voltage: | 230V |
Rated Input Power: | 430W | Frequency: | 50Hz/60Hz | No-Load Speed: | 6000-13000opm |
Sand Pad Size: | 125cm | Application: | Wood/metal | Weight: | 2.11KG |
Product Description

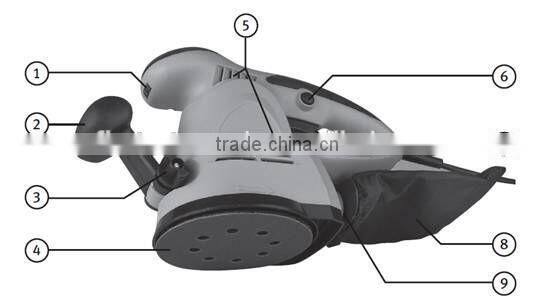

430W 125mm diy cordless electric wood sanders wood sanders
1. Speed selector
2. Adjustable handle
3. Adjustable handle locking knob
4. Hook and loop sanding pad
5. Motor cooling vents
6. Lock button
7. Power switch
8. Dust bag
9. Dust bag coupling sleeve
Product Specifications
Voltage | 230 V AC, 50 Hz/ 120V AC,60Hz |
Output power | 430 W |
Orbits/min. | 6000-13000opm |
Sanding pad diam. | 125 mm |
Sound Pressure (LpA) | 81 dB(A) (K: 3 dB) |
Sound Power (LwA) | 92 dB(A) (K: 3 dB) |
Vibration Value | 10.8 m/s2 (K: 1.5 m/s2) |
Features of electric wood sanders:
- Dust box bag helps keep work area clean
- Lock-on switch for continuous use with variable speed dial
- 8 hole hook and loop sanding base for through pad dust extraction
- Front and rear soft grip
Operation of electric wood sanders:

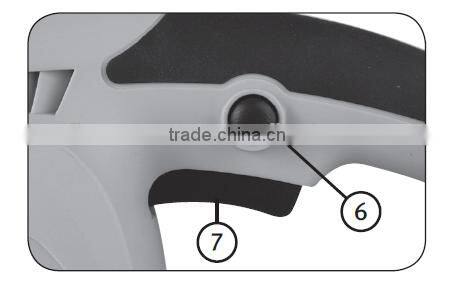

Switching the sander on/off
The electric wood sanders is started and stopped by holding or releasing the power switch (7). To lock the power trigger (7) in the on position: Press the lock button (6) and trigger (7) simultaneously and then release the trigger (7) before the lock button (6). To disengage the trigger lock: Press only the power trigger (7) and then release it.

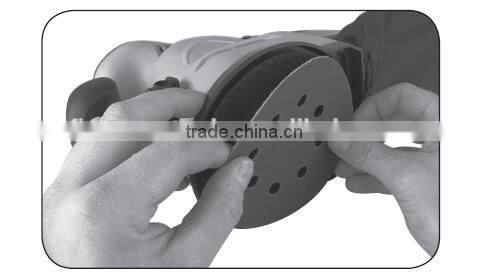

Attaching sandpaper
Make sure that the sandpaper is the right size (125 mm), has the correct hole pattern and is of the hook and loop (velcro) type. Line the holes in the sandpaper up with the holes on the sanding pad and press them firmly together.

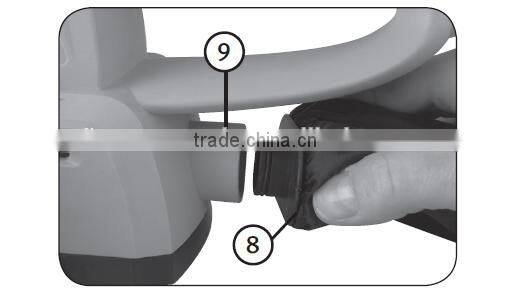

Attaching the dust bag
The dust bag (8) pushes onto the sander’s coupling sleeve (9).

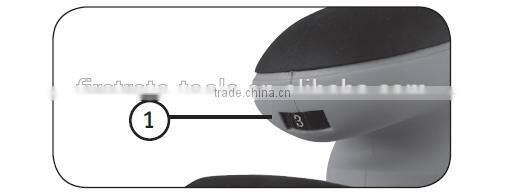

Setting the speed
The speed can be set from 6000 to 13000 orbits/minute. The speed can be adjusted using the speed selector (1), even during operation. Do not to exert too much pressure on the sander, especially at lower speeds when the motor is not cooled as much by the lower speed of the cooling fan.

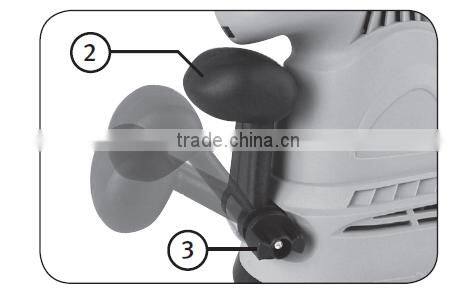

Setting the angle of the handle
To adjust the handle (2), first loosen the locking knob (3), set the desired angle and then tighten the locking knob (3).
Care and Maintenance
- Always keep the motor’s ventilation openings free of dust and debris.
- Clean the machine as needed using a lightly moistened cloth and mild detergent if necessary. Avoid using abrasive cleaning agents and solvents.
Troubleshooting Guide
Problem | Possible Cause | Possible solution |
The machine does not start. | No power. | Check that the wall socket works. |
Worn brushes. | Contact Customer Services if there is a motor or electrical fault. | |
Short circuit. | ||
Faulty power switch. | ||
The machine runs slowly. | Overloading. | Reduce downward pressure on sander. |
The motor is overheated. | Do not press down too hard. | |
The sanding pad bearings are worn. | Contact our Customer Services. | |
Strange noise. | Mechanical fault. | Contact our Customer Services. |
Faulty windings. | ||
Heavy vibration. | Loose sanding pad. | Tighten the sanding pad and make sure it is attached correctly. |
Sparks in the motor | Stuck carbon brushes. | Contact our Customer Services. |
Winding short circuited. | ||
Commutator short-circuited. |
packed in color box or nylon bag
- Specializing in manufacturing and exporting power tools for more than 8 years
- Export to more than 15countries in Europe, NA the Middle East, Southeast Asia, Africa, South America and areas etc.
- Replying the e-mail with 24 hours
- All products destined abroad are in compliance CE, CB, GS, SAA, EMC, ETL and comply to PAH, RoHS and REACH
- Stable production, consistent quality and fair price
- Each “component fabrication workshop” is responsible to perform their own QC audits to internal AQL standards or OEM client specifications.
- Each “assembly workshop” carries out their own IQC and OQC regardless of whether they’re utilizing internally produced or externally purchased components.
- During assembly, there are further inspections on sub-assemblies at regular “critical to performance” intervals.
Q: What’s your MOQ?
A: Normally our MOQ is 500 units per model, but we can also accept 100-300pcs, it depends on the model.
Q: What’s your payment terms?
A: We could accept L/C sight, T/T ,Paypal and E-credit etc.
Q: What’s the delivery time?
A: Normally our lead time is 45days, but if the quantity is large, or it’s related to some special components, the lead time would be longer.
Q: Can I get free samples?
A: Yes. You pay the sample cost and shipping cost first. We will return you the money back when place official orders.
Our service:
a.1 year warranty
b.1%-2% Spare Parts
c. OEM & ODM are welcome
d. trial orders are available
e. 24 hours online service.
