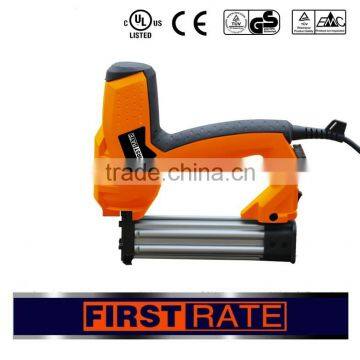

portable electric stapler gun nail gun
Voltage |
220-20VAC 100-120VAC |
Frequency |
50/60Hz |
Impact rate |
30/min |
Housing |
Nylon |
Magazine |
Aluminum alloy base |
Magazine capacity |
50nails |
Application |
Stsple:15-25mm T-brad nail:15,20,25,30,32mm |
Features:
1.Handling Comfort:
TPR handle
Extend long trigger
Ergonomically-designed for better
2.Double Safety:
Contact-firing safety mechanism
Power switch protected
3.Superior Performance:
Professional model
Two styles staple & brad nail 15 to 32mm
4.Ease Of Loading & Clearance:
Wide-open magazine makes loading or jam clearance an ease task
5.Durability & Precision:
Reinforced housing and aluminum
Alloy magazine
Easy for jam clearance
Hardened driving blade to ensure extended tool life
6.Jam-Proof Design:
Unique exist design eliminates jamming

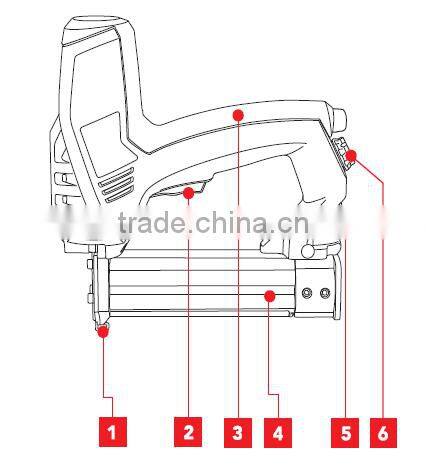

1.Safety Striker Pin |
4.Magazine |
2.On/Off Trigger |
5.Power Switch |
3.Handle |
6.Variable Depth Adjustment Dial |
Operation
Loading staples
Ensure the tool is disconnected from the power supply before performing any of the following operations.

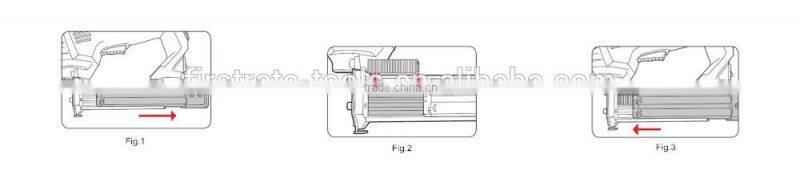

1.Squeeze the magazine latch and pull the magazine away from the tool. (Fig.1)
2.Slide a row of staples over the middle of the magazine so that the staples straddle the inner chamber. (Fig.2)
3.Close the magazine, ensuring it clicks into place. (Fig.3)
Loading nails

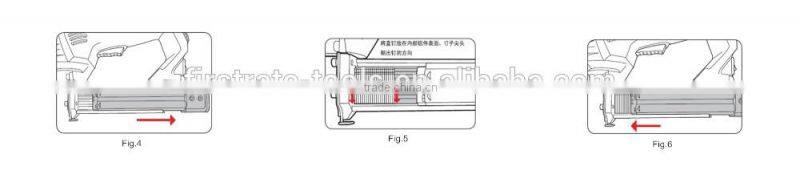

1.Squeeze the magazine latch and pull the magazine away from the tool. (Fig.4)
2.Insert a row of nails into the second track of the magazine. The nails should be flush against the inner chamber. (Fig.5)
3. Close the magazine, ensuring it clicks into place. (Fig.6)
Note: If the magazine will not close, the magazine may be over capacity. Remove some nails/staples then try to close again.
Controls
The tool is recommended for use with a residual current device with a rated residual current of 30mA or less.
Power switch

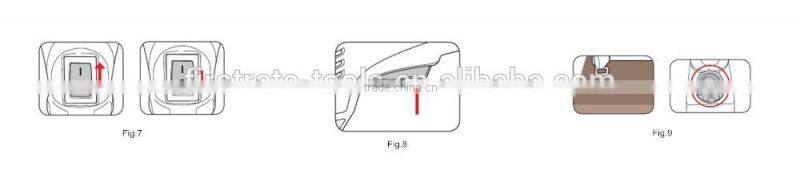

1.To supply the tool with power, flick the power switch to the “1” position. (Fig.7)
2.To turn off, flick the power switch to the “O” position. (Fig.7)
On/Off trigger
To fire the nail and staple gun, squeeze the on/off trigger. (Fig.8)
Variable depth adjustment dial
The variable depth adjustment dial allows you to control the depth at which the nail gun fires a nail or staple. (Fig.9)
1.To find the correct depth setting, fire a nail into a scrap piece of material.
2.Adjust the dial and fire another nail. Repeat until the nail is driven flush with the work surface.
Operating the nail gun
1.Push the power switch to the “1” position. (Fig.10)
2.Set the variable depth adjustment dial. (Fig.10)

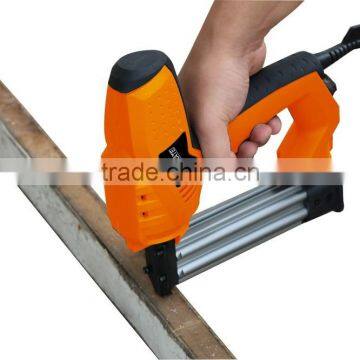

3.Place the staple nail gun against the work surface so that the nosepiece of the tool is where you want the staple/nail to be located. (Fig.11)
4.Push the tool firmly down on the work surface to depress the safety striker pin. (Fig.11)
5.Squeeze the trigger switch to fire a staple/nail. (Fig.12)
Q: What’s your MOQ?
A: Normally our MOQ is 500 units per model, but we can also accept 100-300pcs, it depends on the model.
Q: What’s your payment terms?
A: We could accept L/C sight, T/T ,Paypal and E-credit.
Q: What’s the delivery time?
A: Normally our lead time is 45days, but if the quantity is large, or it’s related to some special components, the lead time would be longer.
Q: Can I get free samples?
A: Yes.
Our service:
a.1 year warranty
b.1%-2% Spare Parts
c. OEM & ODM are welcome
d. trial orders are available
E. Reply within 24 hours
