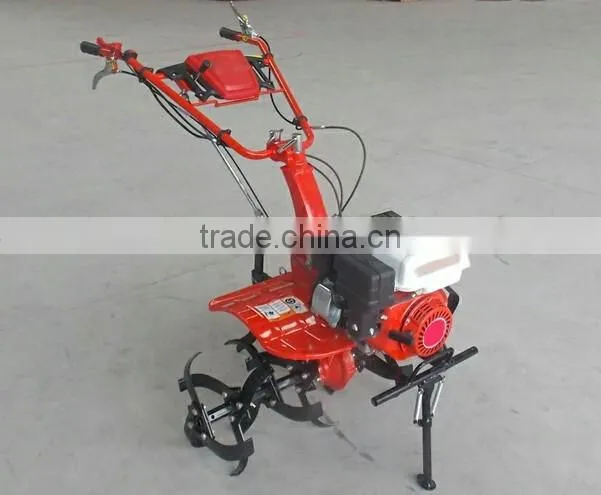

manufacture price 9HP 210CC gasoline hand tillers agriculture usage cultivator
♦ Product Description
Model |
TWGT1100B |
|
Tiller |
Transmission |
Gear driving, straight concection |
Clutch |
wet friction plate |
|
Gear Shifting |
-1,0,1,2 |
|
Tilling Depth(mm) |
150~300 |
|
Tilling Width(mm) |
800~1100 |
|
Productivity(m2/h) |
≥400 |
|
N.W./G.W.(kg) |
155/140 |
|
Tyre & blade |
Tyre size |
3.50-6 |
Blade |
HT-5(standard); optional refer to blades series |
|
Engine |
Engine Model |
HT170FB |
Engine Type |
single cylinder, 4-stroke, air-cooled, OHV,gasoline |
|
Bore x stroke(mm) |
70×54 |
|
Compression Ratio |
8.5:1 |
|
Fuel consumption(g/kw.h) |
395 |
|
Fuel Tank Capacity(L) |
3.6L |
|
Displacement(ML) |
210 |
|
Max power |
9HP/3600 |
|
Starting |
Manual start; electric start(optional) |
|
Packing |
20’ GP/40'HQ capacity(sets) |
66/135sets |
Packing dimension(mm) |
1050*570*780mm |
|
Package material |
Carton box with iron frame/ wooden box |
|
Description:
This series power tiller can be equipped with lamp, water pump, ridge, sprayer, trailer, furrow plough, seeder, fertilizer distributor.etc. Well perform between mountain and hilly farmland, dry and paddy field, orchard, vegetable greenhouse, potato land, corn land and coco land, sand land etc.
1.6.5hp vertical type gasoline engine is little to control.
2.Better small machine could be guarantee the farm worker in some time.
3.Its advantage is fit for old man,woman to finish tilling fields.
4.Special diesel engine must need special transmission to match each the gearbox of tiller is our patent solely.
5.Two wheels tractors be supplied from 4.85KW ( 6hp) to 14.70kw (20hp)
6.Features: Compact,Agile,Light,Reliable,Convenience,High Quality.
7.Suitable for paddy fields,upland plains,mountain and hilly areas.and for plough,rotary tillage,sow,threshing ,suction and so on.
8.Equipped with lightnings for driving at night.
9.Can be used as a stationary power source for drainage and irrigation.
10.With quick coupling,easy to change farming implements. Cultivator,mower,trailer,water pump,power tiller,snow blower,rotary plough,etc.
11. Different product colors is optional, to adapt to different market

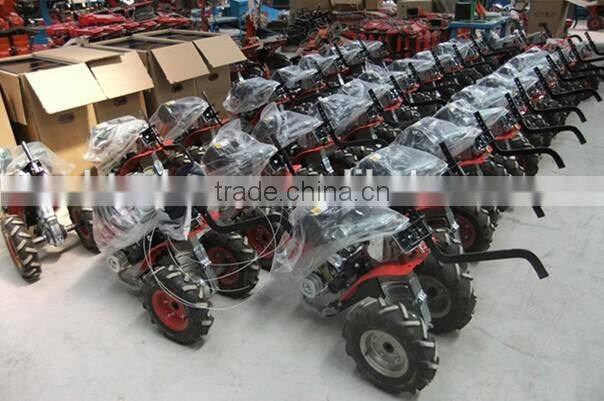

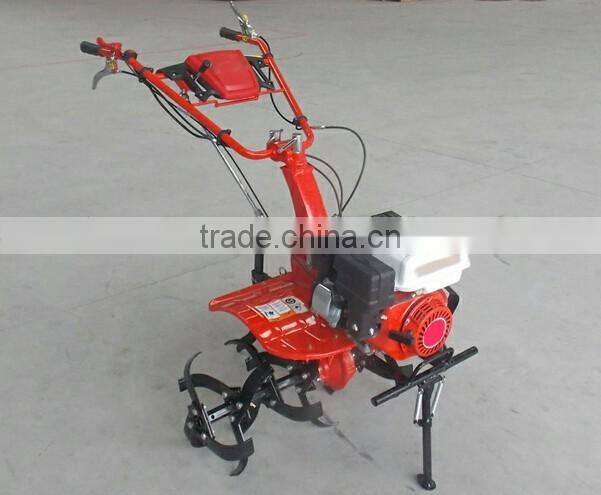

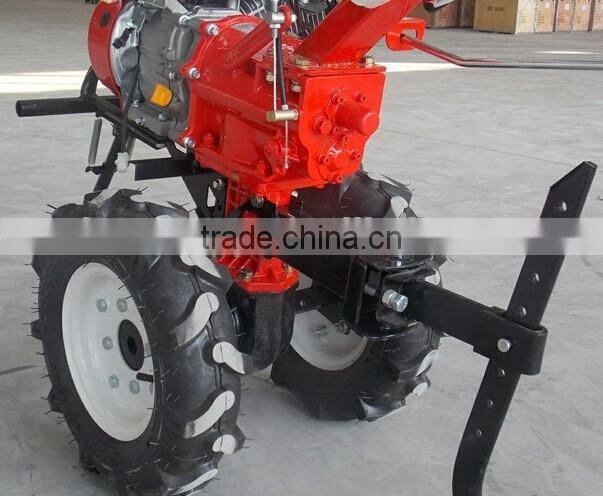

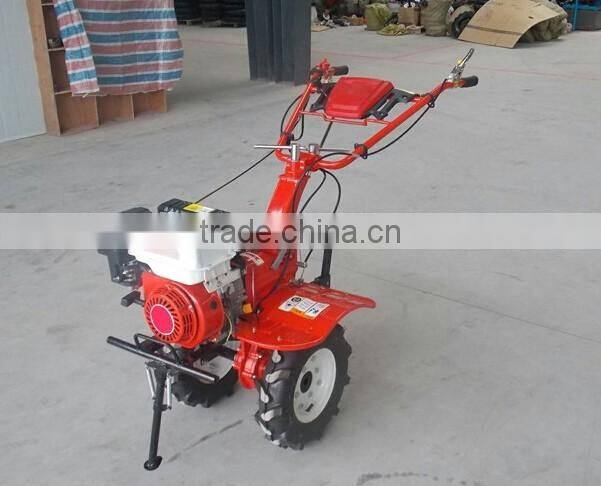

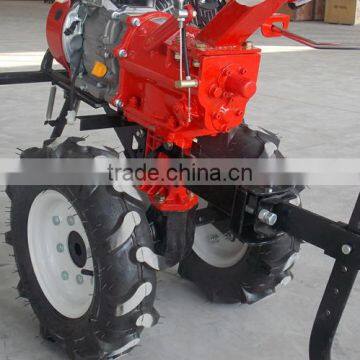

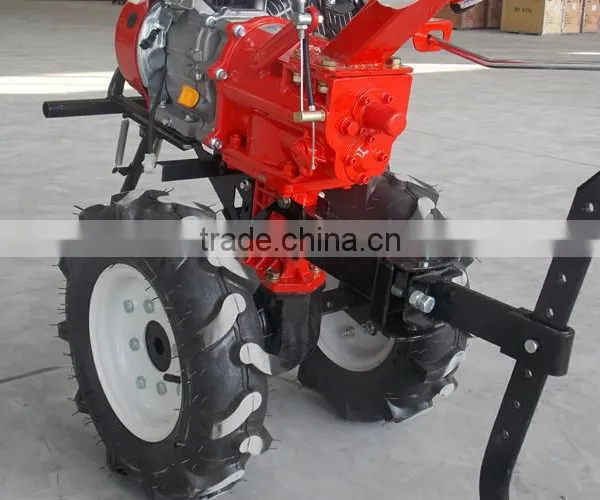

♦ Product Show

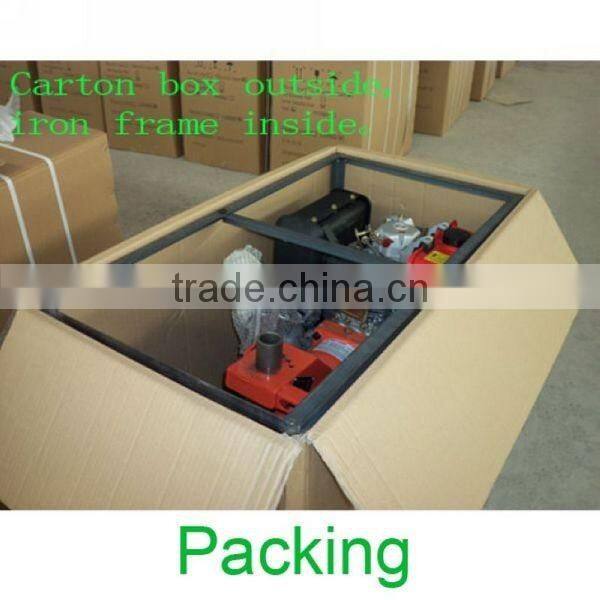

♦ Packing and shippment
