600W 180mm Radial Tile Cutter

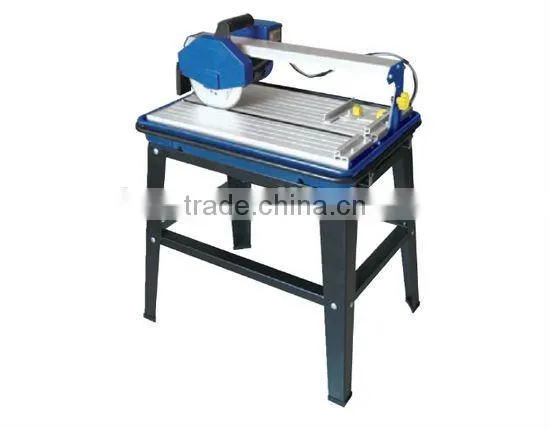

600W 180mm Radial Tile Cutter photo-1
US$ 40 - 70 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
AWLOP
Model Number:
RTC180B
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name AWLOP
Model Number RTC180B
Power Source Electricity
Saw Type Other
Application Tile Saw
Rated Voltage 230V/120V
Rated Input Power 600W
No-Load Speed 2950/min
Frequency 50Hz/60Hz
Blade Diameter 180mm
Max. Cutting Width 25mm

600W 180mm Radial Tile Cutter



Voltage/Frequency 230V-50Hz/120V-60Hz
Input power 600W
No-load speed2950/min
Max. cutting depth25mm( 90º )
 17mm( 45º )
Table size600*385mm
Blade diameterø180mm
Table tilting range 0-45º
Complete with floor stand
Supplied with parallel fence & mitre guide



1. Continuous rim diamond cutting wheel for excellent performance

2. Large steel work table with rubber surface 600x385mm
3. Sturdy aluminum stop Infinitely adjustable miter stop for diagonal cuts
4. Motor holder tilts  0 °- 45 °for jolly cuts
5. Motor guide with 4-fold ball bearing
6. IP54 protection degree
7. Lager water trough with cooling water pump
8. Plunge cutting function for cutting sqblare holes on tiles

9. Constructed in the shape of a bench-mounted timber cutting unit  for cutting lengthwise at an angle for for making transverse cuts.
10. The platform can be rotated by up to 45 degree around the saw blade axis.
11. The angle of delivery of material to be cut can be adjusted in the range of 0 degree to 45 degree relative to the saw blade.
12. The depth of cut can be set by stepless adjustment between 0 and 20mm.



600W Radial Tile Cutter.  Any question, pls contact us no hesitation. More information, please visit
