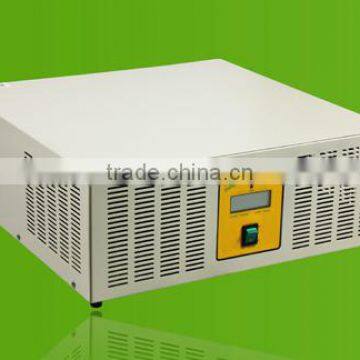

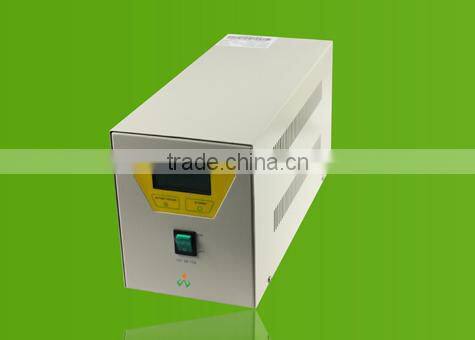

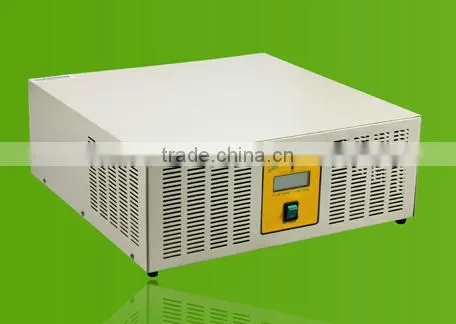

WIND TURBINE OFF-GRID PURE SINE WAVE INVERTER 1/2/3/5/10/15/20KW CE/UL/IEC

Wind Turbine and Solar power Off-grid Pure Sine Wave  Inverter 1.5KW/2KW/3KW/5KW/10KW/15kw/20kw

IEC/ UL / CE aproved inverter

Rated Output Capacity             Rated Battery Voltage             Rated Output Voltage               Optional Function              Feature

03 300VA                                   12 12V 1 110V                           Single Phase                    N Normal                    01 50Hz

05 500VA                                   24 24V 2 120V                           Single Phase                     M By-pass                  02 60Hz

06 600VA                                   36 36V 3 220V                           Single Phase                                                       03 +50Hz

                                                                                                                                                                                                     Dry-contact signal

10 1KVA                                     48 48V 4 230V                           Single Phase                                                                           04 +60Hz

                                                                                                                                                                                                     Dry-contact signal

20 2KVA                                     96 96V 5 240V                            Single Phase                                                                          11 50Hz

                                                                                                                                                                                                     Horizontal

30 3KVA                                     110 110V A 220V                       Three Phase                                                                            12 60Hz

                                                                                                                                                                                                     Horizontal

50 5KVA                                     120 120V B 240V                       Three Phase                                                                   XX Other

100 10KVA                                 192 192V C 380V                      Three Phase

150 15KVA                                 220 220V D 400V                      Three Phase

200 20KVA                                 240 240V E 415V                       Three Phase

300 30KVA                                  360 360V

INTRODUCTION:

The pure sine wave inverter, which is developed by our company, is an intelligent device of converting DC power into stable AC power, providing effective power supply for Traffic inconvenience, the harsh environment of the mountain area, a pasturing area, border, islands and other areas without electricity.

With decent appearance, easy operation, and visual indication of LCD, the inverter has automatic AC voltage stabilizing output and perfect protection function, high efficiency, and low no-load loss.

PERFORMANCE FEATURES:

-Intelligentized, modularized, simple structure design with powerful function.

-Frequency toroidal transformer ensures that inverter has high efficiency and low no-load loss.

-Perfect protection and alarming function, thus the system has a high stability.

-LCD display function, visually display battery voltage and other status parameters.

-Pure sine wave output, compared with square wave or modified wave, has higher efficiency and higher capability of driving load.

-Core components adopt SCM to control, which makes the circuit structure simple, and the control method and control strategy more flexible.

-Power module adopts high quality Mitsubishi Module

-European CE certification.

OPTIONAL FUNCTIONS:

-By-pass function: It will switch to the city grid automatically when the battery is under voltage, which ensures the continuity and stability of system.

-Optional Light-control and time-control function: inverter output can be controlled according to the light intensity, no need manual operation. There are three control modes: Light Control On and Light Control Off; Light Control On and Time Control Off; Constant on. This function should be supported together with our controller.
