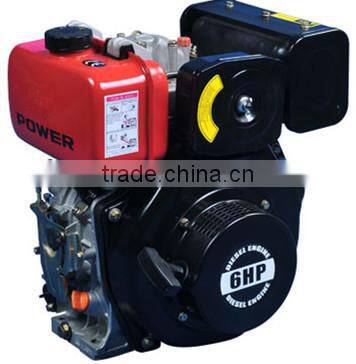

Air-cooled 4-stroke Single Cylinder 4.5 7 10 11HP Diesel Engine For Sale 170,178,186,188

US$ 215 - 215 MOQ: 10 Sets

Key Specifications

Condition:

New

Fuel:

Diesel

Stroke:

4 Stroke

Qingdao Techwell Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Fuel Diesel

Stroke 4 Stroke

Cylinder Multi-cylinder

Cold Style Other, Air-cooled

Start Electric Start

Place of Origin Shandong, China

Brand Name OEM

Model Number TE178F

Dimension(L*W*H) 480*465*525mm

Weight 33kg

Certification ISO

Warranty One Year

Promotion Sales 2015 Final ----Diesel Engine 170F, 178F, 186F

Specification:

Model	170F(E)		178F(E)		178FS(E)		178FA(E)
Type	Single-cylinder, vertical, 4-stroke, air-cooled, diesel engine
Bore x stroke(mm)	70x55		78x62		78x62		78x64
Displacement(ml)	211		296		296		305
Compression Ratio	20:1		20:1
Rated speed(rpm)	3000	3600	3000	3600	1500	1800	3000	3600
Rated output(KW)	2.5	2.8	3.68	4.0	3.68	4.0	3.68	4.0
Max output(KW)	2.8	3.1	4.0	4.4	4.0	4.4	4.0	4.4
Fuel consumption(g/kw.h)	294.9	310.0	290.0	307.0	290.0	307.0	290.0	307.0
Starting fashion	Manuel or Electric Start
Fuel tank capacity (L)	2.5		3.5
Oil capacity (L)	0.8		1.1
Fuel type	0# (Summer), -10# (Winter) diesel
Oil type	40CC
Continuous running time (h)	3.0	2.5	2.5	2.0	2.5	2.0	2.5	2.0
Overall dimension (mm)	415x385x470		480x465x525
N.W/G.W.(kg)	26/31		33/38

Specification

Model	186F(E)		186FS(E)		186FA(E)
Type	Single-cylinder, vertical, 4-stroke, air-cooled, diesel engine
Bore x stroke(mm)	86x70		86x70		86x72
Displacement(ml)	406		406		418
Compression Ratio	19:1
Rated speed(rpm)	3000	3600	1500	1800	3000	3600
Rated output(KW)	5.7	6.3	5.7	6.3	5.7	6.3
Max output(KW)	6.3	6.8	6.3	6.8	6.3	6.8
Fuel consumption(g/kw.h)	283.5	295.7	283.5	295.7	283.5	295.7
Starting fashion	Manuel or Electric Start
Fuel tank capacity (L)	5.5
Oil capacity (L)	1.65
Fuel type	0# (Summer), -10# (Winter) diesel
Oil type	40CC
Continuous running time (h)	2.5	2.0	2.5	2.0	2.5	2.0
Overall dimension (mm)	510x475x565
N.W/G.W.(kg)	48/53
