SHANTUI Wheel Loader with 6 tons capacity

Name: SHANTUI Wheel Loader with 6 tons capacity
Brand: SHANTUI
Price: USD $60,000 - 70,000 / Set

FOB Price

USD $60,000 - $70,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Qingdao Shanghai Tianjin
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Brand Name:	SHANTUI	Model Number:	SL60W
Place of Origin:	Shandong, China	Type:	Front Loader	Moving Type:	Wheel Loader
Dimension(Long * Breadth * High):	835130823480mm	Rated Load:	6000kg	Certification:	AAA
Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Shantui SL60W

SHANTUI Wheel Loader / 6 tons capacity + 3.5m3 bucket + 175kw Shangchai Engine / Shantui SL60W

TECHNICAL PARAMETERS

ITEM		SL60W	SL60W-2
Engine		Shangchai SC11CB240.1G2B1	Weichai WD10G240E21
Rated power (kW/rpm)		7/88	7/88
Displacement (L)		9.726	10.45
Minimum diesel consumption (g/kW•h)		215	230
Ma×imum torque (NM)		920	912
Operating weight (kg)		19000	21000
Dimension L×W×H (mm)		8351×3082×3480	8692×3082×3548
Center distance of tires (mm)		2250	2250
Wheel base (mm)		3200	3400
Loading capacity (t)		6	6
Bucket capacity (m³)		3.5	3.5
Ma×imum traction force (KN)		167	167
Ma×imum breakout force (KN)		185	185
Static tipping load (full turn) (kg)		12000	12000
Gradeability (°)		30	30
Minimum turning radius (mm)	Outside of bucket	6520	6808
Minimum turning radius (mm)	Outside of tire	7290	7618
Turning angle (°)		36	36
Dumping height (mm)	Standard Arm	3238	3314
	E×tended	-	-
	Long	-	-
Dumping reach (mm)	Standard Arm	1218	1205
	E×tended	-	-
	Long	-	-
Lifting/Lifting,dumping and lowering time (S)		452/957	50/103
Travel speed (km/h)	Forward 1	0–8	0–8
	Forward 2	0–15	0–15
	Forward 3	0–24	0–24
	Forward 4	0–38	0–38
	Reverse 1	0–8	0–8
	Reverse 2	0–24	0–24
	Reverse 3	-	-

MAIN FEATURES

The best feature of the SL60W series, other than its sheer size, is its tubeless tires that offer deeper treads for greater traction. It offers all the advantages of the 50W Series but with upgraded performance, strength and efficiency.

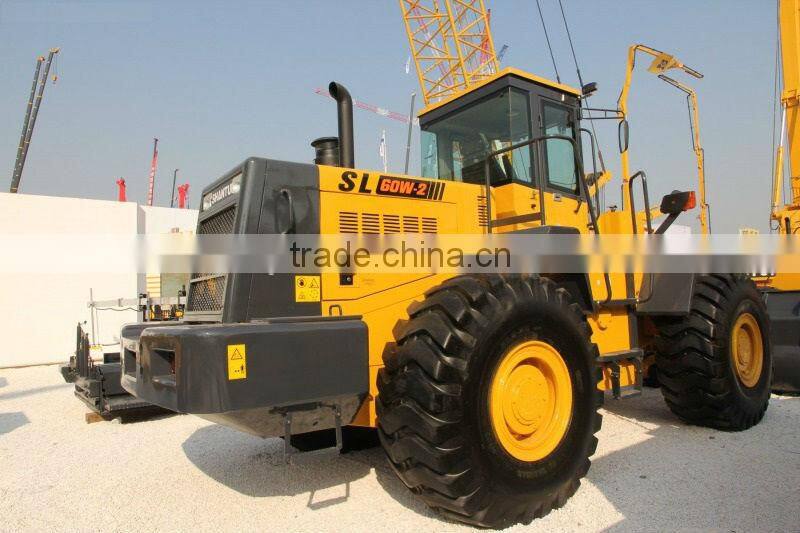

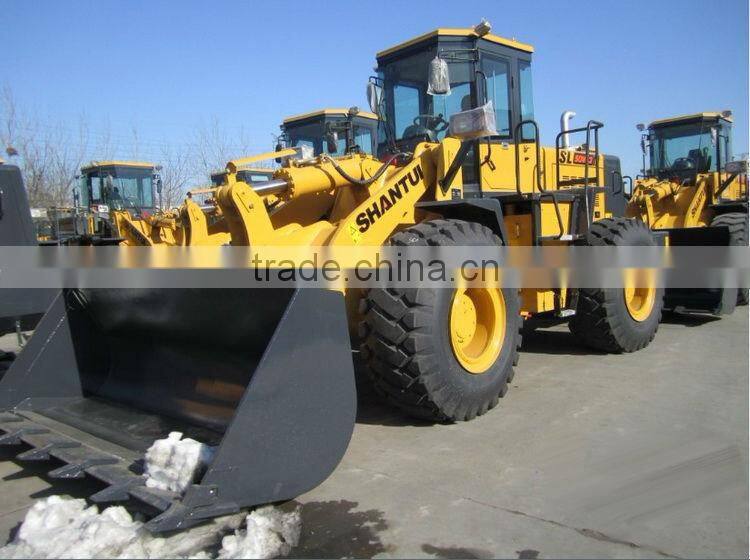

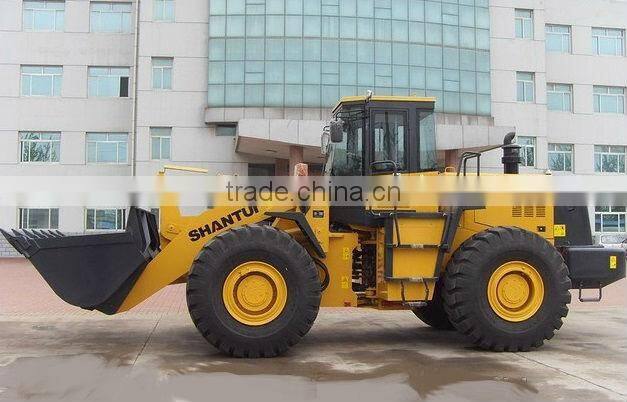

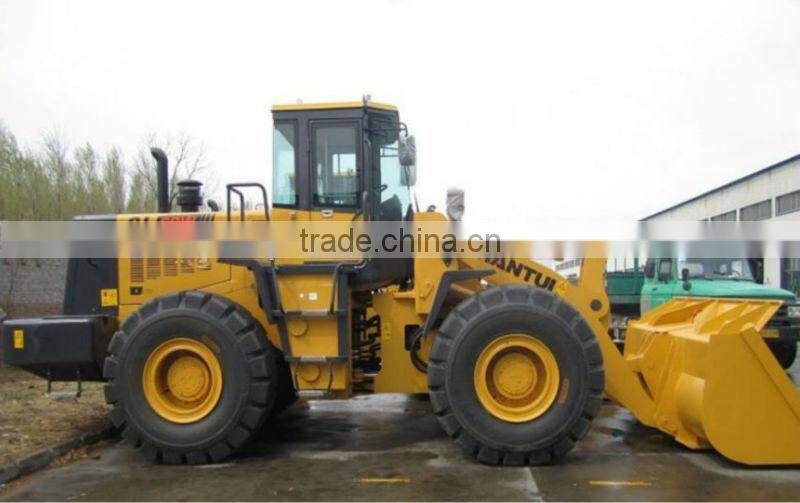

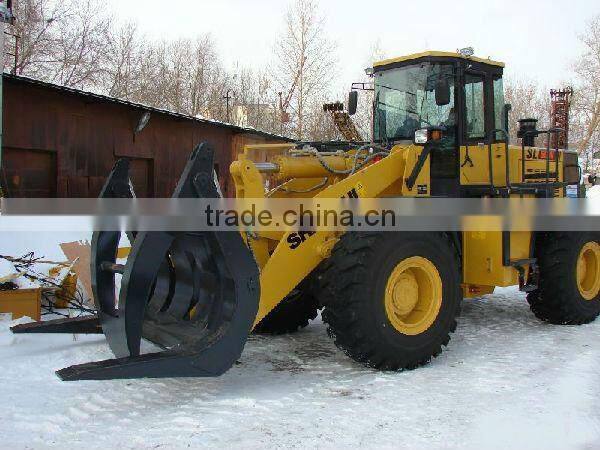

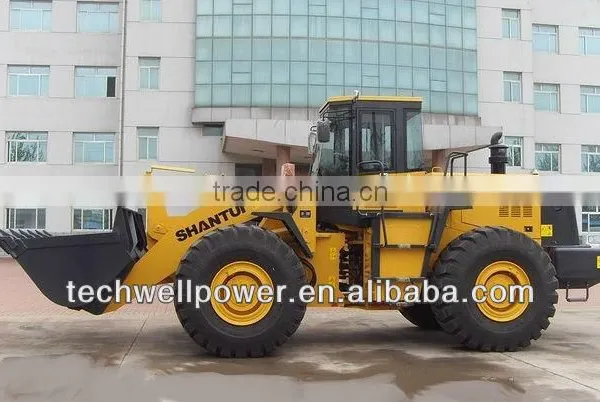

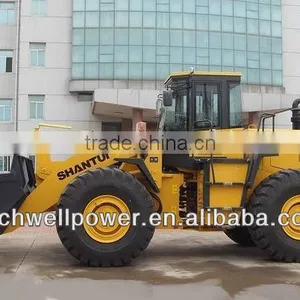

REFERENCE PHOTOS

OTHER MODELS - 6 Tons Loader

SL60W-2 (Weichai Engine)

SL60W-3 (DF Cummins Engine)

Other smaller models available for sale:

SL20W

SL30W

SL50W

SL50W-2

SL50W-3
