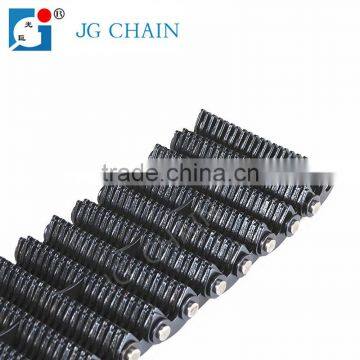

Help CenterHigh Tensile Strength Low Noise Silent Chain cl 12
Related Products
-
High Tensile Strength Low Noise Width 54mm Silent Chain cl 12US$ 18 - 25MOQ: 50 Meters -
Industrial Standard Steel Tooth Silent Chain cl 16US$ 19.8 - 25.2MOQ: 1 Meter
-
Inverted Tooth Middle Guide CL16 Silent ChainsUS$ 20 - 60MOQ: 10 Pieces
-
CL08 Low Noise Chain Made in China P12.7 Silent ChainUS$ 10 - 15MOQ: 1 Meter
-
CL08 Low Noise Chain Manufacturer Industrial Steel Silent ChainUS$ 9 - 10MOQ: 1 Meter
|
JG Chain No.# |
P | b1 | d2 | L | Lc | h1 | h2 | Guide | #No. of Plates | U. T. S. (kN) | Wt. (kg/m) |
| CL06 | 9.525 | 13.50 | 3.96 | 18.50 | 20.00 | 5.30 | 10.10 | Side | 9 | 10.00 | 0.60 |
| 16.50 | 21.50 | 23.00 | 11 | 12.50 | 0.73 | ||||||
| 19.50 | 24.50 | 26.00 | 13 | 15.00 | 0.85 | ||||||
| 22.50 | 27.50 | 29.00 | 15 | 17.50 | 1.00 | ||||||
| 28.50 | 33.50 | 35.00 | Center | 19 | 22.50 | 1.26 | |||||
| 34.50 | 39.50 | 41.00 | 23 | 27.50 | 1.53 | ||||||
| 40.50 | 45.50 | 47.00 | 27 | 32.50 | 1.79 | ||||||
| 46.50 | 51.50 | 53.00 | 31 | 37.50 | 2.06 | ||||||
| 52.50 | 57.50 | 59.00 | 35 | 42.50 | 2.33 | ||||||
| CL08 | 12.70 | 19.50 | 5.08 | 24.50 | 26.00 | 7.00 | 13.40 | Side | 13 | 23.40 | 1.15 |
| 22.50 | 27.50 | 29.00 | 15 | 27.40 | 1.33 | ||||||
| 25.50 | 30.50 | 32.00 | 17 | 31.30 | 1.50 | ||||||
| 28.50 | 33.50 | 35.00 | Center | 19 | 35.20 | 1.68 | |||||
| 34.50 | 39.50 | 41.00 | 23 | 43.00 | 2.04 | ||||||
| 40.50 | 45.50 | 47.00 | 27 | 50.80 | 2.39 | ||||||
| 46.50 | 51.50 | 53.00 | 31 | 58.60 | 2.74 | ||||||
| 52.50 | 57.50 | 59.00 | 35 | 66.40 | 3.10 | ||||||
| 58.50 | 63.50 | 65.00 | 39 | 74.30 | 3.45 | ||||||
| 64.50 | 69.50 | 71.00 | 43 | 82.10 | 3.81 | ||||||
| 70.50 | 75.50 | 77.00 | 47 | 89.90 | 4.16 | ||||||
| CL10 | 15.875 | 30.00 | 5.94 | 37.00 | 39.00 | 8.70 | 16.70 | Center | 15 | 45.60 | 2.21 |
| 38.00 | 45.00 | 47.00 | 19 | 58.60 | 2.80 | ||||||
| 46.00 | 53.00 | 55.00 | 23 | 71.70 | 3.39 | ||||||
| 54.00 | 61.00 | 63.00 | 27 | 84.70 | 3.99 | ||||||
| 62.00 | 69.00 | 71.00 | 31 | 97.70 | 4.58 | ||||||
| 70.00 | 77.00 | 79.00 | 35 | 111.00 | 5.17 | ||||||
| 78.00 | 85.00 | 87.00 | 39 | 124.00 | 5.76 | ||||||
| CL12 | 19.05 | 38.00 | 6.90 | 45.00 | 47.00 | 10.50 | 20.10 | Center | 19 | 70.40 | 3.37 |
| 46.00 | 53.00 | 55.00 | 23 | 86.00 | 4.08 | ||||||
| 54.00 | 61.00 | 63.00 | 27 | 102.00 | 4.78 | ||||||
| 62.00 | 69.00 | 71.00 | 31 | 117.00 | 5.50 | ||||||
| 70.00 | 77.00 | 79.00 | 35 | 133.00 | 6.20 | ||||||
| 78.00 | 85.00 | 87.00 | 39 | 149.00 | 6.91 | ||||||
| 86.00 | 93.00 | 95.00 | 43 | 164.00 | 7.62 | ||||||
| 94.00 | 101.00 | 103.00 | 47 | 180.00 | 8.33 | ||||||
| CL16 | 25.40 | 45.00 | 8.90 | 53.00 | 56.00 | 14.00 | 26.70 | Center | 15 | 111.00 | 5.31 |
| 51.00 | 59.00 | 62.00 | 17 | 125.00 | 6.02 | ||||||
| 57.00 | 65.00 | 68.00 | 19 | 141.00 | 6.73 | ||||||
| 69.00 | 77.00 | 80.00 | 23 | 172.00 | 8.15 | ||||||
| 81.00 | 89.00 | 92.00 | 27 | 203.00 | 9.57 | ||||||
| 93.00 | 101.00 | 104.00 | 31 | 235.00 | 10.98 | ||||||
| 105.00 | 113.00 | 116.00 | 35 | 266.00 | 12.41 | ||||||
| 117.00 | 125.00 | 128.00 | 39 | 297.00 | 13.82 | ||||||
| CL20 | 31.75 | 57.00 | 10.84 | 67.00 | 70.00 | 17.50 | 33.40 | Center | 19 | 165.00 | 8.42 |
| 69.00 | 79.00 | 82.00 | 23 | 201.00 | 10.19 | ||||||
| 81.00 | 91.00 | 94.00 | 27 | 237.00 | 11.96 | ||||||
| 93.00 | 103.00 | 106.00 | 31 | 273.00 | 13.73 | ||||||
| 105.00 | 115.00 | 118.00 | 35 | 310.00 | 15.50 | ||||||
| 117.00 | 127.00 | 130.00 | 39 | 346.00 | 17.27 |
High tensile strength low noise silent Chain cl 12
Introduction of company:
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001
Main Products: Roller Chain, Leaf Chain, Automobile Chain, Timing Chain, Driving Chain, Conveyor Chain, Chainsaw Chain, Guide Bar, Special Chain...
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year.
3. Any response from our customers will be highly appreciated.
Certification:
High tensile strength low noise silent Chain cl 12
Q:How to order with us ?
A:Pls. see buying guides below.
Q:Can you do custom logo on the chain?
A:Yes,we can do custom logos by molding. Need your Authorization Letter.
Q:What is your saw chain sample fee?
A:Free sample , clients pay the shipping fees.
Q:How to visit factory?
A:Leave us a message,and we will pick you up by car for free.
Q:What is your mass products delivery time?
A:30days for 200,000pcs.Exact time should be according to the QTY.
Please send your inquiry if you need our products,Thanks!
High tensile strength low noise silent Chain cl 12
