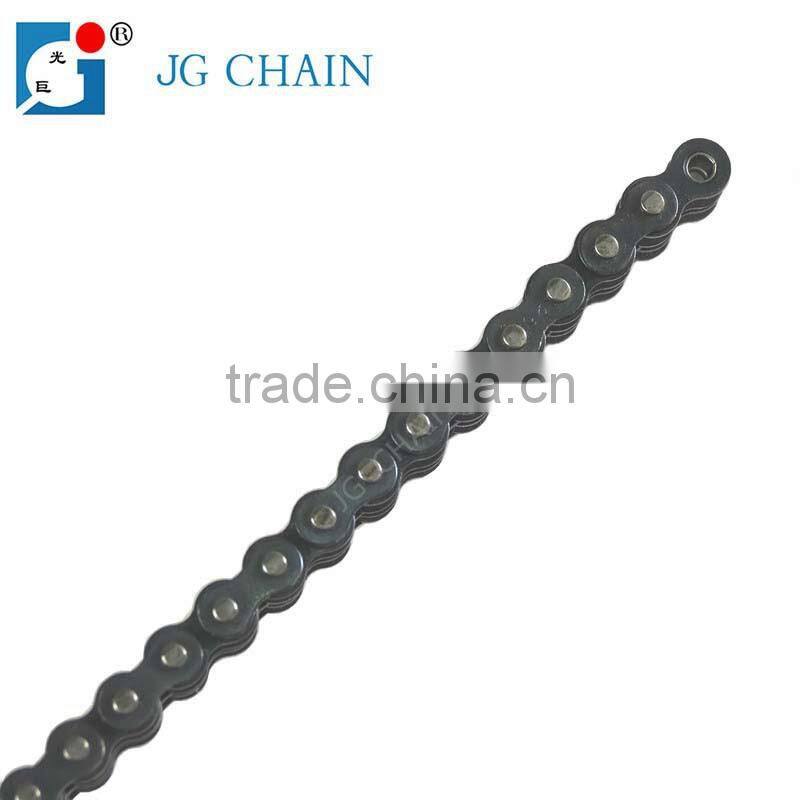

Ansi standard a series carbide steel transmission roller chain #25 chain
Ansi standard a series carbide steel transmission roller chain #25 chain

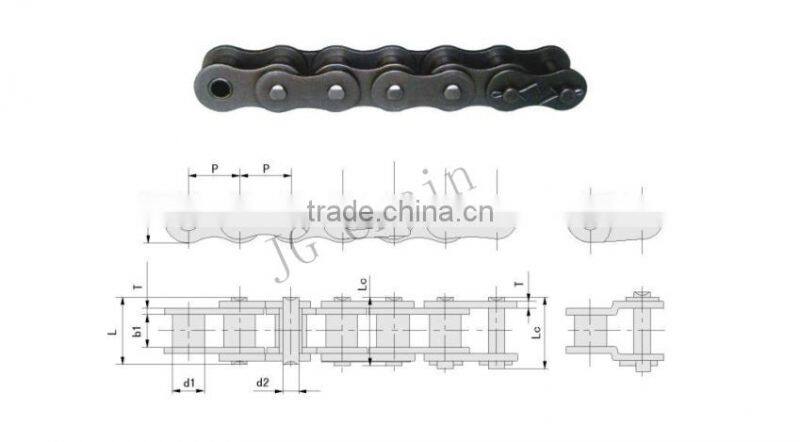

DIN/ISO Chain NO. | ANSI Chain NO. | Pitch | Roller diameter | Width Between Innerplates | Pin diameter | Pin length | Inner Plate depth | Plate Thick-ness | Ultimate Tensile strength |
| p | d1 max | b1 min | d2 max | L/Lc max | h2 max | t/T max | Q min | ||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| *03C | *15 | 4.7625 | 2.48 | 2.38 | 1.62 | 6.1/ 6.90 | 4.30 | 0.60 | 1.80/409 |
*04C-1 | *25 | 6.350 | 3.30 | 3.18 | 2.31 | 7.90/ 8.40 | 6.0 | 0.80 | 3.5/795 |
| *06C-1 | *35 | 9.525 | 5.08 | 4.77 | 3.58 | 12.40/ 13.17 | 9.0 | 1.30 | 7.90/1795 |
| 085-1 | 41 | 12.700 | 7.77 | 6.25 | 3.58 | 13.75/ 15.00 | 9.91 | 1.30 | 6.67/1516 |
| 08A-1 | 40 | 12.700 | 7.95 | 7.85 | 3.96 | 16.60/ 17.80 | 12.00 | 1.50 | 14.10/3205 |
| 10A-1 | 50 | 15.875 | 10.16 | 9.40 | 5.08 | 20.70/ 22.20 | 15.09 | 2.03 | 22.20/5045 |
| 12A-1 | 60 | 19.050 | 11.91 | 12.57 | 5.94 | 25.90/ 27.70 | 18.00 | 2.42 | 31.80/7227 |
| 16A-1 | 80 | 25.400 | 15.88 | 15.75 | 7.92 | 32.70/ 35.00 | 24.00 | 3.25 | 56.70/12886 |
| 20A-1 | 100 | 31.750 | 19.05 | 18.90 | 9.53 | 40.40/ 44.70 | 30.00 | 4.00 | 88.50/20114 |
| 24A-1 | 120 | 38.100 | 22.23 | 25.22 | 11.10 | 50.30/ 54.30 | 35.70 | 4.80 | 127.0/28864 |
| 28A-1 | 140 | 44.450 | 25.40 | 25.22 | 12.70 | 54.40/ 59.00 | 41.00 | 5.60 | 172.4/39182 |
| 32A-1 | 160 | 50.800 | 28.58 | 31.55 | 14.27 | 64.80/ 69.60 | 47.80 | 6.40 | 226.8/51545 |
| 36A-1 | 180 | 57.150 | 35.71 | 35.48 | 17.46 | 72.80/ 78.60 | 53.60 | 7.20 | 280.20/63682 |
| 40A-1 | 200 | 63.500 | 39.68 | 37.85 | 19.85 | 80.30/ 87.20 | 60.00 | 8.00 | 353.80/80409 |
| 48A-1 | 240 | 76.200 | 47.63 | 47.35 | 23.81 | 95.50/ 103.00 | 72.39 | 9.50 | 510.30/1159770 |
Ansi standard a series carbide steel transmission roller chain #25 chain
Ansi standard a series carbide steel transmission roller chain #25 chain
Introduction of company
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001
Main Products: Leaf Chain, Automobile Chain, Silent Chain, Driving Chain, Conveyor Chain, Special Chain...
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year.
3. Any response from our customers will be highly appreciated.
Certification
Q: How to establish the trust and know our quality?
A: Sample can be sent to clients for quality checking first.
A: Yes,we can do custom logos by molding. Need your Authorization Letter.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
