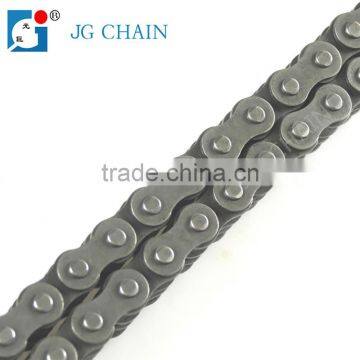

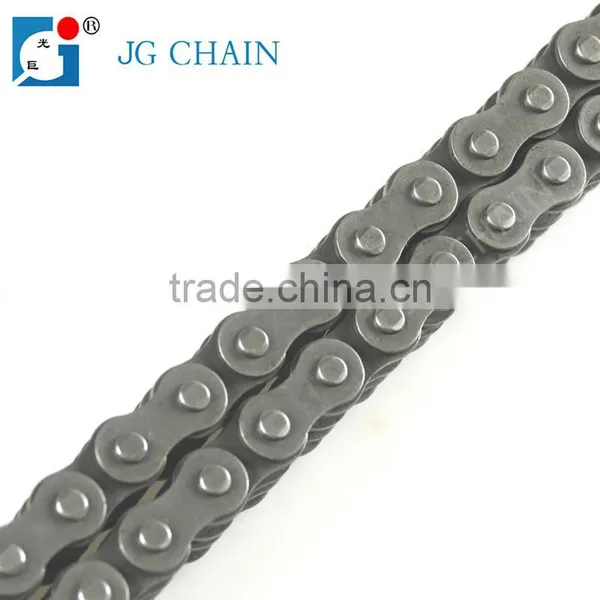

Zhuji quality mini iron transmission drive parts double row roller chain 04c
Zhuji quality mini iron transmission drive parts double row roller chain 04c
|
DIN/ISO Chain NO. |
ANSI Chain NO. |
Pitch |
Roller diameter |
Width Between Innerplates |
Pin diameter |
Pin length |
Inner Plate depth |
Plate Thick-ness |
Transverse pitch |
Ultimate Tensile strength |
| p |
d1 max |
b1 min |
d2 max |
L/Lc max |
h2 max |
t/T max |
Pt |
Q min |
||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
*04C-2 |
*25-2 |
6.350 | 3.30 | 3.18 | 2.31 |
14.5/ 15.0
|
6.00 | 0.80 | 6.40 | 7.00/1591 |
| *06C-2 | *35-2 | 9.525 | 5.08 | 4.77 | 3.58 | 22.5/ 23.3 |
9.00 |
1.30 |
10.13 |
15.80/3591
|
| 085-2 | 41-2 | 12.700 | 7.77 | 6.25 | 3.58 | 25.7/ 26.9 |
9.91 |
1.30 |
11.95 |
13.34/3032 |
| 08A-2 | 40-2 | 12.700 | 7.95 | 7.85 | 3.96 |
31.0/ 32.2
|
12.00 | 1.50 | 14.38 | 28.20/6409 |
| 10A-2 | 50-2 | 15.875 | 10.16 | 9.40 | 5.08 | 38.9/ 40.4 |
15.09 |
2.03 |
18.11 |
44.40/10091 |
| 12A-2 | 60-2 | 19.050 | 11.91 | 12.57 | 5.94 | 48.8/ 50.5 |
18.00 |
2.42 |
22.78 |
63.60/14455 |
| 16A-2 | 80-2 | 25.400 | 15.88 | 15.75 | 7.92 |
62.7/ 64.3 |
24.00 | 3.25 | 29.29 | 113.40/25773 |
| 20A-2 | 100-2 | 31.750 | 19.05 | 18.90 | 9.53 |
76.4/ 80.5 |
30.00 | 4.00 | 35.76 | 117.00/40227 |
| 24A-2 | 120-2 | 38.100 | 22.23 | 25.22 | 11.10 |
95.8/ 99.7
|
35.70 | 4.80 | 45.44 | 254.00/57727 |
| 28A-2 | 140-2 | 44.450 | 25.40 | 25.22 | 12.70 |
103.3/ 107.9 |
41.00 | 5.60 | 48.87 | 344.8/78364 |
| 32A-2 | 160-2 | 50.800 | 28.58 | 31.55 | 14.27 | 123.3/ 128.1 |
47.80 | 6.40 | 58.55 | 453.60/103091 |
| 36A-2 | 180-2 | 57.150 | 35.71 | 35.48 | 17.46 |
138.6/ 144.4 |
53.60 | 7.20 | 65.84 | 560.50/127386 |
| 40A-2 | 200-2 | 63.500 | 39.68 | 37.85 | 19.85 |
151.9/ 158.8 |
60.00 | 8.00 | 71.55 | 707.60/160818 |
| 48A-2 | 240-2 | 76.200 | 47.63 | 47.35 |
23.81 |
183.4/ 190.8 |
72.39 | 9.50 | 87.83 | 1020.60/213955 |
Zhuji quality mini iron transmission drive parts double row roller chain 04c
Zhuji quality mini iron transmission drive parts double row roller chain 04c
Zhuji quality mini iron transmission drive parts double row roller chain 04c
Zhuji quality mini iron transmission drive parts double row roller chain 04c
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001
Main Products: Leaf Chain, Automobile Chain, Silent Chain, Driving Chain, Conveyor Chain, Special Chain...
Quality orientation: Above the average, mainly exported to USA, Europe, Asia etc.
Strictly according: ISO/ANSI/DIN standard.
Price orientation: Price-performance ratio is very high.
Why choose us?
1. We are manufacturer, better control of quality and delivery time.
2. We obtained the certificate of TUV GERMANY.
3. We have 21 years history in chain, sprocket, coupling field, and just focus on it, do about 8 years of export trading.
4. Its the scientific and technological small and medium enterprises of Zhejiang province.
5. Strong technology team and advanced equipment. (our manager was technical chief of chain general factory, at begin, there are only two factories in China before).
6. Short delivery time, equipment is advanced.
7. Price is just above the average in China, quality is strictly according to ISO/ANSI/DIN standard, so price-performance ratio is very high. Mainly exported to middle-high market.
8. Traffic is very easy, about 5 minutes drive distance from railway station and the exit of freeway.
9. We've got USD 60,000 trade assurance from , is the first batch of its members.
10. You could place trade assurance order to us by Alibaba, to assure the delivery time and quality.
11. We accept T/T, D/P, D/A, O/A, L/C payment terms, for small order, paypal, western union are both ok.
12. OEM/ODM are both available.
13. Marking your brand or other character on chain is workable, need your authorization of brand using.
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year.
3. Any response from our customers will be highly appreciated.
Certification
Q: How to establish the trust and know our quality?
A: Sample can be sent to clients for quality checking first.
A: Yes,we can do custom logos by molding. Need your Authorization Letter.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
