Zhejiang Zhuji Iso Certified Chain Factory b Series Alloy Steel Machine Parts Roller Chain Drives
US$ 4 - 7
MOQ: 1 Meter
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Roller Chain
Material:
Other, 40Mn
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ANSI Standard a Series Alloy Steel Material Industrial Transmission Roller Chain 40 ChainUS$ 1 - 3MOQ: 1 Meter -
ISO Standard Industry Equipment Driving Parts Simplex Alloy Steel Chain 06cUS$ 1 - 3MOQ: 1 Meter
-
06B Wholesale Industry Machine Parts Steel Roller Chain Manufacturer 9.525 Pitch ChainUS$ 1 - 2MOQ: 1 Meter
-
DIN Standard Transmission Steel Roller Chain 06b-2 Industry Chain Double Row ChainUS$ 2 - 3MOQ: 1 Meter
-
ISO Standard Alloy Steel b Series Industrial Machine Transmission Roller Chain 08b ChainUS$ 1 - 3MOQ: 1 Meter
Standard or Nonstandard
Standard
Type
Roller Chain
Material
Other, 40Mn
Tensile Strength
60kN/13636LB
Place of Origin
Zhejiang, China
Brand Name
JG chain
Model Number
16B-1
Zhejiang zhuji iso certified chain factory b series alloy steel machine parts roller chain drivess
Product Description

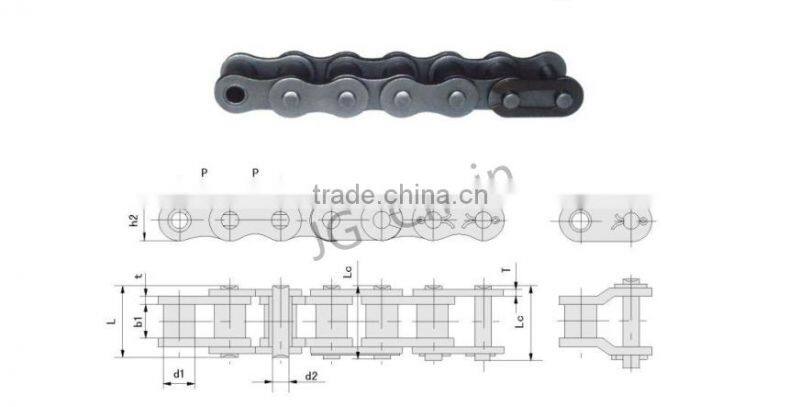

Specification
DIN/ISO Chain NO. | Pitch | Roller diameter | Width Between Innerplates | Pin diameter | Pin length | Inner Plate depth | Plate Thick-ness | Ultimate Tensile strength |
| p | d1 max | b1 min | d2 max | L/Lc max | h2 max | t/T max | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| 04B-1 | 6.000 | 4.00 | 2.80 | 1.85 | 6.80/ 7.8 | 5.00 | 0.60 | 3.0/682 |
| 05B-1 | 8.000 | 5.00 | 3.00 | 2.31 | 8.20/ 8.9 | 7.10 | 0.80 | 5.0/1136 |
| *06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15/ 14.1 | 8.20 | 1.30 | 9.0/2045 |
| 08B-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70/ 18.2 | 11.80 | 1.60 | 18.0/4091 |
| 10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50/ 20.9 | 14.70 | 1.70 | 22.4/5091 |
| 12B-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50/ 24.2 | 16.00 | 1.85 | 29.0/6591 |
| 16B-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10/ 37.4 | 21.00 | 4.15/3.1 | 60.0/13636 |
| 20B-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30/ 45,0 | 26.40 | 4.5/3.5 | 95.0/21591 |
| 24B-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40/ 57.8 | 33.20 | 6.0/4.8 | 160.0/36364 |
| 28B-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10/ 69.5 | 36.70 | 7.5/6.0 | 200.0/45455 |
| 32B-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00/ 71.0 | 42.00 | 7.0/6.0 | 250.0/56818 |
| 40B-1 | 63.500 | 39.37 | 38.10 | 22.89 | 82.20/ 89.2 | 52.96 | 8.5/8.0 | 355.0/80682 |
| 48B-1 | 76.200 | 48.26 | 45.72 | 29.24 | 99.10/ 107.0 | 63.80 | 12.0/10.0 | 560.0/127272 |
| 56B-1 | 88.900 | 53.98 | 53.34 | 34.32 | 114.6/ 123.0 | 77.80 | 13.5/12.0 | 850.0/193180 |
| 64B-1 | 101.60 | 63.50 | 60.96 | 39.40 | 130.0/ 138.5 | 90.17 | 15.0/13.0 | 112.0/254544 |
| 72B-1 | 114.30 | 72.39 | 68.58 | 44.48 | 147.4/ 156.4 | 103.60 | 17.0/15.0 | 1400.0/318180 |
More Products

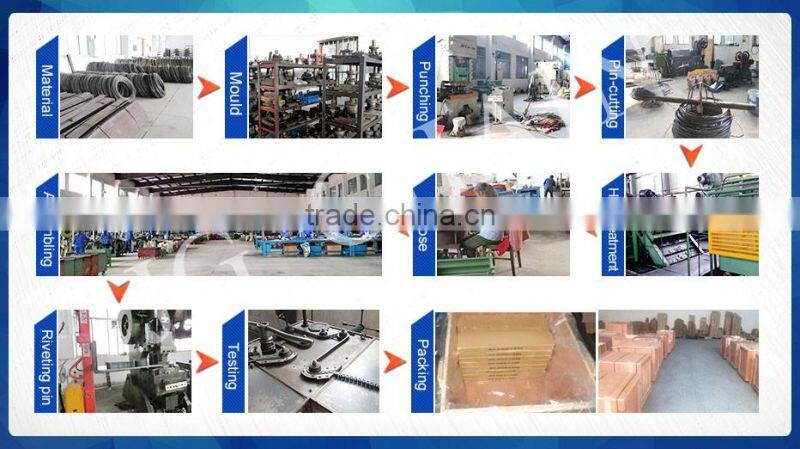

Production process
Packaging & Shipping

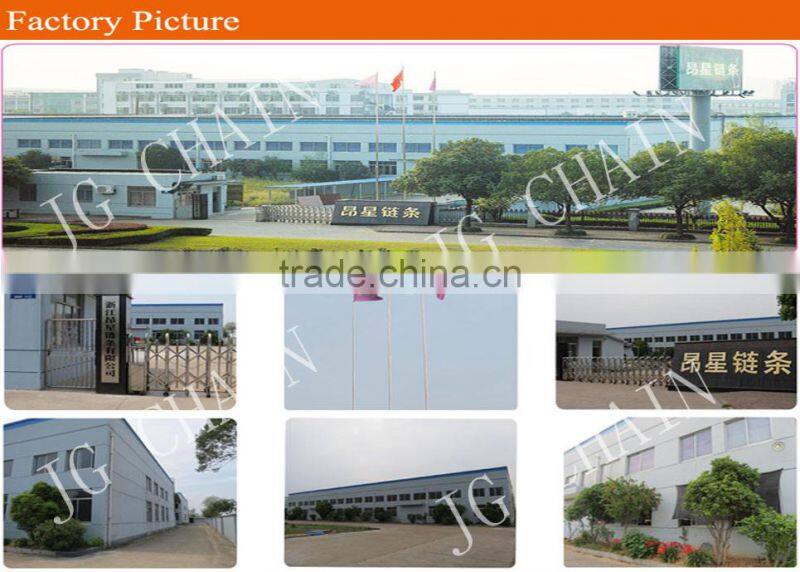

Company Information
Introduction of company
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001
Main Products: Leaf Chain, Automobile Chain, Silent Chain, Driving Chain, Conveyor Chain, Special Chain...
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year.
3. Any response from our customers will be highly appreciated.
Certification
FAQ
Q: How to establish the trust and know our quality?
A: Sample can be sent to clients for quality checking first.
Q: Can you do custom logo on the chain?
A: Yes,we can do custom logos by molding. Need your Authorization Letter.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
A: Yes,we can do custom logos by molding. Need your Authorization Letter.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
sample charge can be returned after place order later.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
