Zhejiang Transmission Drive Roller Chain 16b 1
US$ 2 - 5
MOQ: 1 Meter
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Roller Chain
Material:
Alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Transmission Steel Roller Chain Manufacturer Precision Simplex Chain b SeriesUS$ 1 - 2MOQ: 1 Meter -
Zhuji Professional Manufacturer Precision Transmission Roller Chain Simplex b Series Chain 10b1US$ 1 - 4MOQ: 1 Meter
-
Industrial Short Pitch Transmission Steel Simplex 16b 1 Roller ChainUS$ 6 - 9MOQ: 1 Meter
-
Durable 40Mn Steel Material b Series Transmission Parts 05b Duplex Machine Roller ChainUS$ 3 - 5MOQ: 1 Meter
-
06C-2 Made in China 40Mn Steel Double Row Transmission Roller Chain High Quality Bush ChainUS$ 2 - 5MOQ: 1 Meter
Standard or Nonstandard
Standard
Type
Roller Chain
Material
Alloy
Tensile Strength
60kN/13636LB
Place of Origin
Zhejiang, China
Brand Name
JG chain
Model Number
16B-1
Zhejiang transmission drive roller chain 16b 1
Product Description
Specification
|
DIN/ISO Chain NO. |
Pitch |
Roller diameter |
Width Between Innerplates |
Pin diameter |
Pin length |
Inner Plate depth |
Plate Thick-ness |
Ultimate Tensile strength |
| p |
d1 max |
b1 min |
d2 max |
L/Lc max |
h2 max |
t/T max |
Q min |
|
| mm | mm | mm | mm | mm | mm | mm | mm | |
| 04B-1 | 6.000 | 4.00 | 2.80 | 1.85 | 6.80/ 7.8 |
5.00 | 0.60 | 3.0/682 |
| 05B-1 | 8.000 | 5.00 | 3.00 | 2.31 | 8.20/ 8.9 |
7.10 | 0.80 | 5.0/1136 |
| *06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15/ 14.1 | 8.20 | 1.30 | 9.0/2045 |
| 08B-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70/ 18.2 | 11.80 | 1.60 | 18.0/4091 |
| 10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50/ 20.9 |
14.70 | 1.70 | 22.4/5091 |
| 12B-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50/ 24.2 |
16.00 | 1.85 | 29.0/6591 |
| 16B-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10/ 37.4 |
21.00 | 4.15/3.1 | 60.0/13636 |
| 20B-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30/ 45,0 |
26.40 | 4.5/3.5 | 95.0/21591 |
| 24B-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40/ 57.8 |
33.20 | 6.0/4.8 | 160.0/36364 |
| 28B-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10/ 69.5 |
36.70 | 7.5/6.0 | 200.0/45455 |
| 32B-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00/ 71.0 |
42.00 | 7.0/6.0 | 250.0/56818 |
| 40B-1 | 63.500 | 39.37 | 38.10 | 22.89 | 82.20/ 89.2 |
52.96 | 8.5/8.0 | 355.0/80682 |
| 48B-1 | 76.200 | 48.26 | 45.72 | 29.24 | 99.10/ 107.0 |
63.80 | 12.0/10.0 | 560.0/127272 |
| 56B-1 | 88.900 | 53.98 | 53.34 | 34.32 | 114.6/ 123.0 |
77.80 | 13.5/12.0 | 850.0/193180 |
| 64B-1 | 101.60 | 63.50 | 60.96 | 39.40 | 130.0/ 138.5 |
90.17 | 15.0/13.0 | 112.0/254544 |
| 72B-1 | 114.30 | 72.39 | 68.58 | 44.48 | 147.4/ 156.4 |
103.60 | 17.0/15.0 | 1400.0/318180 |

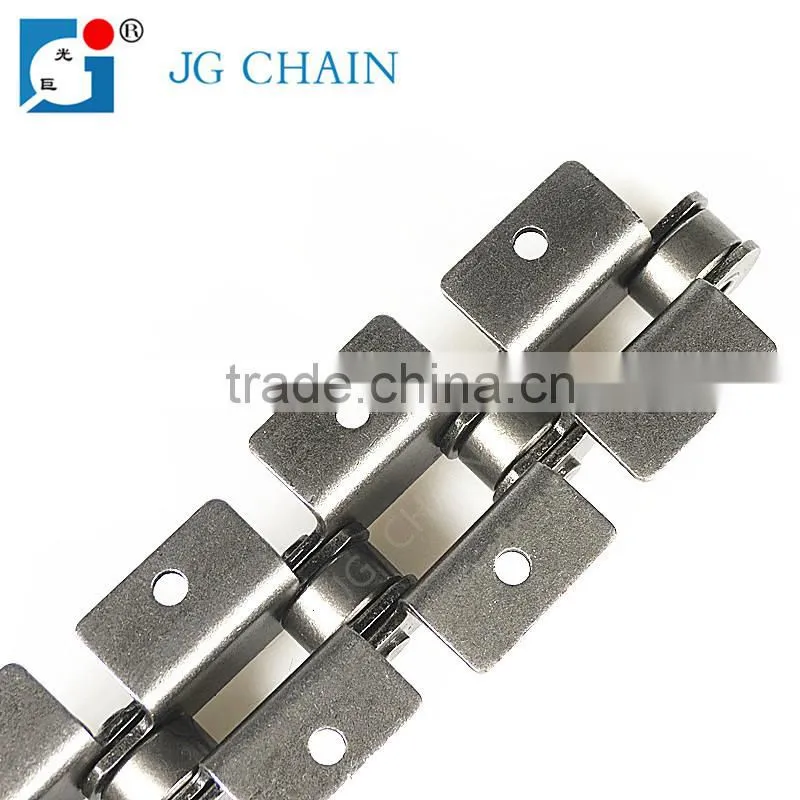

More Products

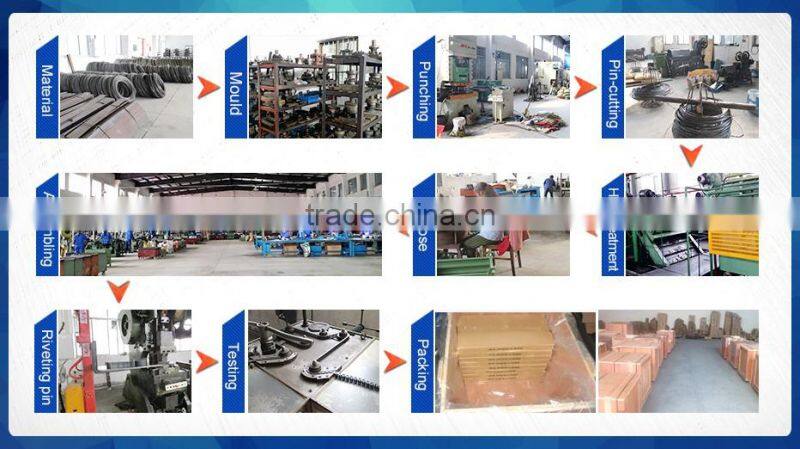

Production process

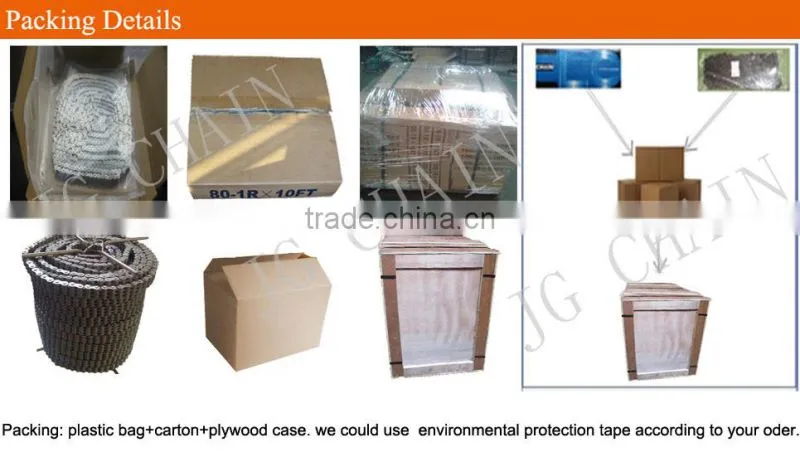

Packaging & Shipping
Company Information

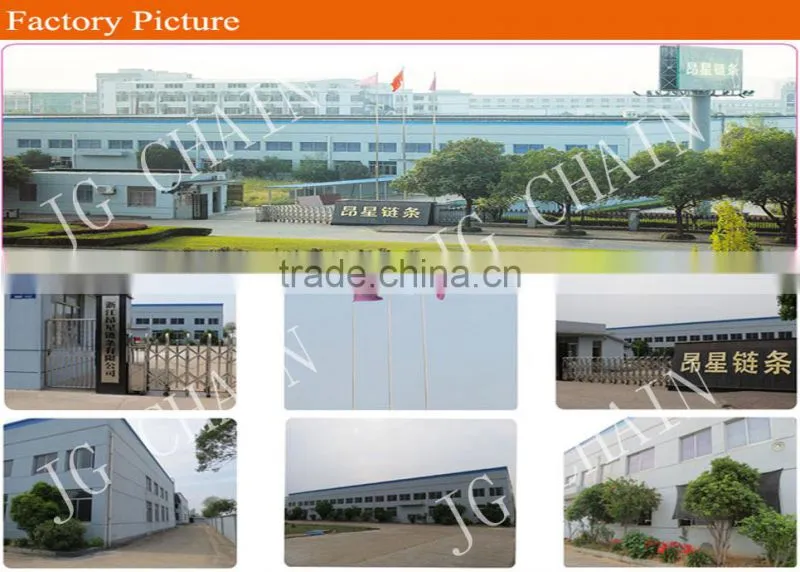

Introduction of company
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001
Main Products: Leaf Chain, Automobile Chain, Silent Chain, Driving Chain, Conveyor Chain, Special Chain...
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year.
3. Any response from our customers will be highly appreciated.

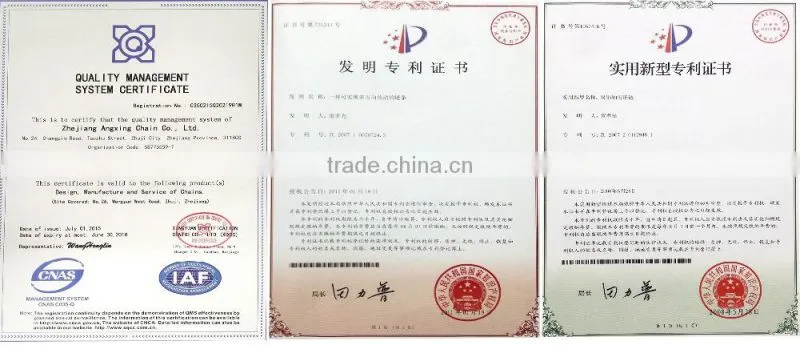

Certification
FAQ
Q: How to establish the trust and know our quality?
A: Sample can be sent to clients for quality checking first.
Q: Can you do custom logo on the chain?
A: Yes,we can do custom logos by molding. Need your Authorization Letter.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
A: Yes,we can do custom logos by molding. Need your Authorization Letter.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
sample charge can be returned after place order later.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
