LH1034 Iso Standard 40Mn Steel Material Handmade Forklift Lifting Chain Leaf
US$ 5 - 10
MOQ: 1 Meter
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Leaf Chain
Material:
Other, 40Mn
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LH1244 High Quality Iso Standard Alloy Steel Dragging Leaf Chain Machine Forklift Spare PartsUS$ 5 - 7MOQ: 1 Meter -
LH1688 Made in China Iso Standard Alloy Steel Lifting Spare Parts Forklift Leaf Chains Bl888US$ 5 - 10MOQ: 1 Meter
-
LH1234 Iso Standard 40Mn Steel Material Forklift Parts Chinese Gold Manufacturer Forklift Leaf ChainUS$ 7 - 10MOQ: 1 Meter
-
BL844 Zhejiang Iso Certified 40mn Steel Material Forklift Leaf Chain 1644US$ 7 - 10MOQ: 1 Meter
-
ISO Certified Alloy Steel Material Elevator Lifting Leaf Chain Lh1044 Bl544US$ 6 - 10MOQ: 1 Meter
Standard or Nonstandard
Standard
Type
Leaf Chain
Material
Other, 40Mn
Tensile Strength
48.9KN/11114LB
Place of Origin
Zhejiang, China
Brand Name
JG chain
Model Number
LH1034

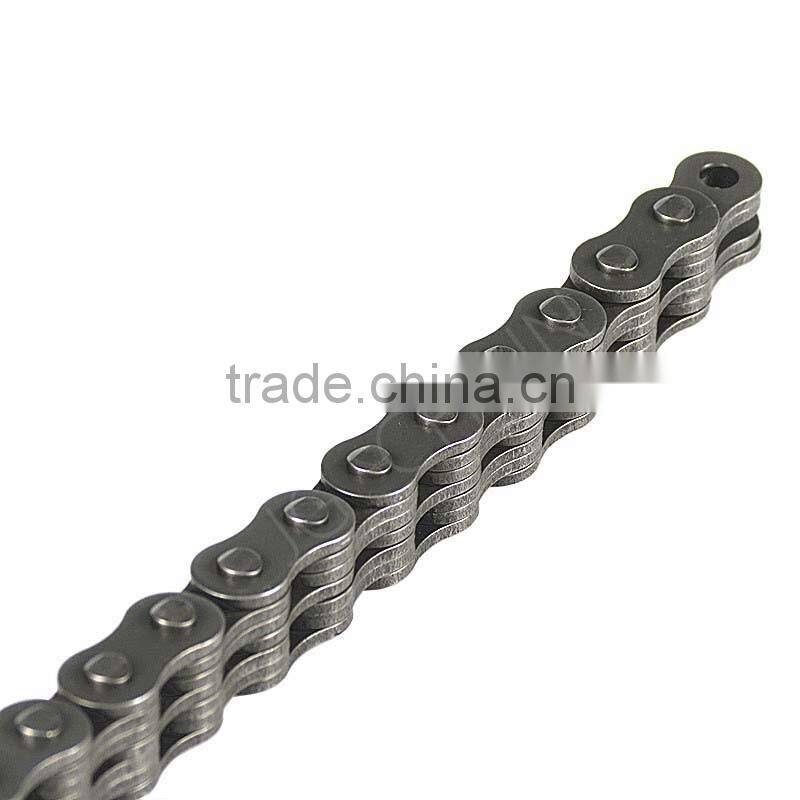

LH1034 iso standard 40Mn steel material handmade forklift lifting chain leaf
Product Description

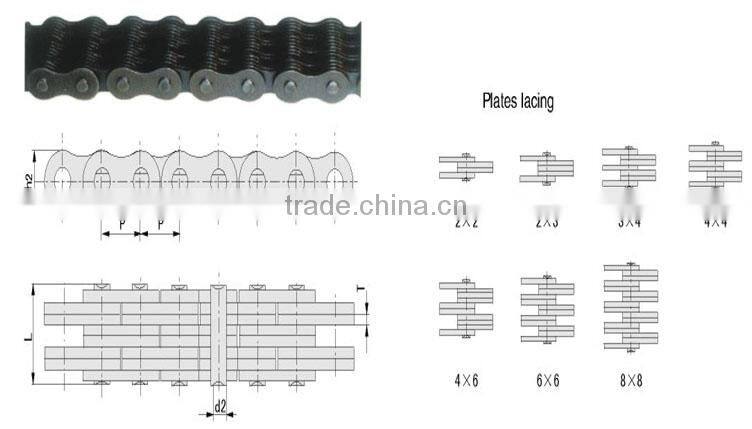

ISO Chain N0. | ANSI Chain N0. | Pitch | Chain Lacing | Plate depth | Plate thickness | Pin diameter | Pin length |
Ultimate tensile strength |
Average tensile strength |
| P | h2 max | T max | d2 max | L max | Q min | Q0 | |||
| mm | mm | mm | mm | mm | kN/LB | kN | |||
| LH0822 | BL422 | 12.7 | 2X2 | 12.07 | 2.08 | 5.09 | 11.05 | 22.2/5045 | 27.6 |
| LH0823 | BL423 | 2X3 | 13.16 | 22.2/5045 | 27.6 | ||||
| LH0834 | BL434 | 3X4 | 17.40 | 33.4/7591 | 41.4 | ||||
| LH0844 | BL444 | 4X4 | 19.51 | 44.5/10114 | 56.0 | ||||
| LH0846 | BL446 | 4X6 | 23.75 | 44.5/10114 | 56.0 | ||||
| LH0866 | BL466 | 6X6 | 27.99 | 66.7/15159 | 81.7 | ||||
| LH0888 | BL488 | 8X8 | 36.45 | 89.0/20227 | 109.4 | ||||
| LH1022 | BL522 | 15.875 | 2X2 | 15.09 | 2.44 | 5.96 | 12.9 | 33.4/7591 | 43.1 |
| LH1023 | BL523 | 2X3 | 15.37 | 33.4/7591 | 43.1 | ||||
| LH1034 | BL534 | 3X4 | 20.32 | 48.9/11114 | 65.6 | ||||
| LH1044 | BL544 | 4X4 | 22.78 | 66.7/15159 | 84.5 | ||||
| LH1046 | BL546 | 4X6 | 27.74 | 66.7/15159 | 84.5 | ||||
| LH1066 | BL566 | 6X6 | 32.69 | 100.1/22750 | 125.1 | ||||
| LH1088 | BL588 | 8X8 | 42.57 | 133.4/30318 | 169.5 | ||||
| LH1222 | BL622 | 19.05 | 2X2 | 18.11 | 3.3 | 7.94 | 12.73 | 48.9/11114 | 63.6 |
| LH1223 | BL623 | 2X3 | 20.73 | 48.9/11114 | 63.6 | ||||
| LH1234 | BL634 | 3X4 | 27.43 | 75.6/17181 | 102.8 | ||||
| LH1244 | BL644 | 4X4 | 30.78 | 97.9/22250 | 120.9 | ||||
| LH1246 | BL646 | 4X6 | 37.49 | 97.9/22250 | 120.9 | ||||
| LH1266 | BL666 | 6X6 | 44.20 | 146.8/33364 | 190.8 | ||||
| LH1288 | BL688 | 8X8 | 57.61 | 195.7/44477 | 238.8 | ||||
| LH1622 | BL822 | 25.4 | 2X2 | 24.13 | 4.09 | 9.54 | 21.34 | 84.5/19204 | 108.2 |
| LH1623 | BL823 | 2X3 | 25.48 | 84.5/19204 | 108.2 | ||||
| LH1634 | BL834 | 3X4 | 33.76 | 129.0/29318 | 170.0 | ||||
| LH1644 | BL844 | 4X4 | 37.90 | 169.0/38409 | 214.6 | ||||
| LH1646 | BL846 | 4X6 | 46.18 | 169.0/38409 | 214.6 | ||||
| LH1666 | BL866 | 6X6 | 54.46 | 253.6/57636 | 324.5 | ||||
| LH1688 | BL888 | 8X8 | 71.02 | 338.1/76841 | 432.7 |
More Products
Production process
Packaging & Shipping
Company Information
Introduction of company
Business Type: Manufacture
Location: Zhuji, China mainland
Year Established: 1995
Company Certification: ISO 9001
Main Products: Leaf Chain, Automobile Chain, Silent Chain, Driving Chain, Conveyor Chain, Special Chain...
After sales service
1. We will be glad to supply you 24 hours service a day.
2. One year quality guarantee period under common environment for use, and defective item free of charge in one year.
3. Any response from our customers will be highly appreciated.
Certification
FAQ
Q: How to establish the trust and know our quality?
A: Sample can be sent to clients for quality checking first.
Q: Can you do custom logo on the chain?
A: Yes,we can do custom logos by molding. Need your Authorization Letter.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
A: Yes,we can do custom logos by molding. Need your Authorization Letter.
Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
sample charge can be returned after place order later.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.
Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.
