C2082H ANSI B29.1 Chain Factory Direct Sell Conveyor Chain

C2082H ANSI B29.1 Chain Factory Direct Sell Conveyor Chain thumbnail-1
C2082H ANSI B29.1 Chain Factory Direct Sell Conveyor Chain photo-1
US$ 8 - 9 MOQ: 1 Meter
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Other, Conveyor chain
Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Zhejiang Angxing Chain Corporation
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Type Other, Conveyor chain
Material Stainless Steel
Tensile Strength 70.2KN
Place of Origin Zhejiang, China
Brand Name JG chain
Model Number C2082H conveyor chain

C2082H conveyor chain

Product Description

conveyor chain

C2082H ANSI B29.1 chain factory direct sell conveyor chain
C2082H ANSI B29.1 chain factory direct sell conveyor chain

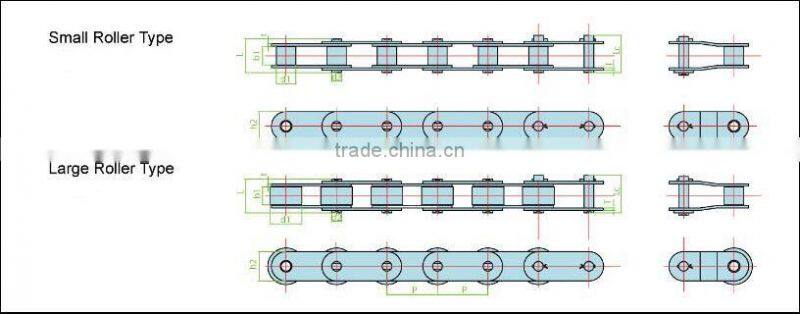

Specification

C2082H ANSI B29.1 chain factory direct sell conveyor chain



JG

Chain N0.



 Pitch

Roller

Diameter

Width

between

inner plates

Pin

Diameter

Pin

length



Inner

plate

depth

Plate

thickness

Ultimate

tensile

strength

Average

tensile

strength
    p d1 b1 d2 L Lc h2 T Q Qo
    mm mm mm mm mm mm mm mm KN KN

C208A

C208AL

C2040

C2042

 25.40

7.95

15.88

 7.85 3.96 16.6 17.8 12.0 1.50 8.46 10.02
C208AH C2040H 25.40 7.95 7.85 3.96 18.8 19.9 12.0 2.03 8.46 10.32

C208B

C208BL

   25.40

8.51

15.88

 7.75 4.45 16.7 18.2 11.8 1.60 10.80 11.64

C210A

C210AL

C2050

C2052

 31.75

10.16

19.05

 9.40 5.08 20.7 22.2 15.0 2.03 13.32 16.86

C212A

C212AL

C2060

C2062

 38.10

11.91

22.23

 12.57 5.94 25.9 27.7 18.0 2.42 19.08 22.08

C212AH

C212AHL

C2060H

C2062H

 38.10

11.91

22.23

 12.57 5.94 29.2 31.6 18.0 3.25 19.08 24.96

C216A

C216AL

C2080

C2082

 50.80

15.88

28.58

 15.75 7.92 32.7 36.5 24.0 3.25 34.02 39.42

C216AH

C216AHL

C2080H

C2082H

 50.80

15.88

28.58

 15.75 7.92 36.2 39.4 24.4 4.00 34.02 42.00

C220A

C220AL

C2100

C2102

 63.50

19.05

39.67

 18.90 9.53 40.4 44.7 30.0 4.00 53.10 61.56

C220AH

C220AHL

C2100H

C2102H

 63.50

19.05

39.67

 18.90 9.53 43.6 46.9 30.0 4.80 53.10 67.44

C224A

C224AL

C2120

C2122

 76.20

22.23

44.45

 25.22 11.10 50.3 54.3 35.7 4.80 76.20 88.38

C224AH

C224AHL

C2120H

C2122H

 76.20

22.23

44.45

 25.22 11.10 53.5 57.5 35.7 5.60 76.20 96.54

C232A

C232AL

C2160

C2162

 101.60

28.58

57.15

 31.75 14.27 64.8 69.6 47.8 6.40 136.08 167.34

C232AH

C232AHL

C2160H

C2162H

 101.60

28.58

57.15

 31.75 14.27 68.2 73.0 47.8 7.20 136.08 171.48



More Products

C2082H ANSI B29.1 chain factory direct sell conveyor chainC2082H ANSI B29.1 chain factory direct sell conveyor chainC2082H ANSI B29.1 chain factory direct sell conveyor chain

C2082H ANSI B29.1 chain factory direct sell conveyor chainC2082H ANSI B29.1 chain factory direct sell conveyor chainC2082H ANSI B29.1 chain factory direct sell conveyor chain





Production process

C2082H ANSI B29.1 chain factory direct sell conveyor chain

Packaging & Shipping



C2082H ANSI B29.1 chain factory direct sell conveyor chain



C2082H ANSI B29.1 chain factory direct sell conveyor chainSingle strand roller chain supplier c2082hss double pitch stainless steel conveyor chain

Company Information

Introduction of company

Business Type: Manufacture

Location: Zhuji, China mainland

Year Established: 1995

Company Certification: ISO 9001

Main Products: Leaf Chain, Automobile Chain, Silent Chain, Driving Chain, Conveyor Chain, Special Chain...



After sales service

1. We will be glad to supply you 24 hours service a day.

2. One year quality guarantee period under common environment for use, and defective item free of charge in one year.

3. Any response from our customers will be highly appreciated.



Certification

C2082H ANSI B29.1 chain factory direct sell conveyor chain



C2082H ANSI B29.1 chain factory direct sell conveyor chain

FAQ

C2082H ANSI B29.1 chain factory direct sell conveyor chain

Want to know more about us?

Q: How to establish the trust and know our quality?

A: Sample can be sent to clients for quality checking first.



Q: Can you do custom logo on the chain?
A: Yes,we can do custom logos by molding. Need your Authorization Letter.

Q: What is your sample charge?
A: Length shorter than 20cm is free, express charge collected.
sample charge can be returned after place order later.


Q: How to visit factory?
A: Leave us a message, and we will pick you up by car for free.

Q: What is your mass products delivery time?
A: 15 days for 250,000 meters. Exact time should be according to the QTY.



How to contact us?

Send Your Inquiry Details In the Below, Click "send" Now!
Thank you and Have a good day!

Single strand roller chain supplier c2082hss double pitch stainless steel conveyor chain
