[FIR HeatZone] High Efficiency Electric Carbon Heating Film( for Floor / Wall / Ceiling Heating Element)

General Information

Electric Heating and Export Specialist e-PRO Trade Co.,

First of all, I am very pleased to have the chance to introduce our company e-PRO Trade Co., - Korean specialist of electric heating materials and export.

There are many companies that make and export their electric heating materials such as; heating film, PTC heating cables, PTC heating rail in the world. They insist that their products have the best quality and excellent heating efficiency. But, electric heating materials are not so easy materials, because if there is problem in electric heating materials, it is possible to cause fire or electric leakage.

Our e-PRO trade Co., has been exporting to 20 countries around the world since its establishment such as USA, Japan, France, Canada, Italy, Sweden, Finland, Russia, Romania, Slovakia, Turkey, Finland, etc.

In addition, our company has been developed DC 12V, 24V products based on the accumulated technologies and energy-saving (PTC) heating film in 2010.  Moreover, we have been fabricating and exporting the narrowest 76mm, 102mm, 152m heating film in accordance with the U.S. specifications since 2012.

Nowadays, e-PRO trade co., is collaborating with Self-regulating heating cable manufacturer –E&S tech Co., Ltd and self-regulating heating manufacturer – G Touch Co., Ltd. whose products was recognized for excellence in quality and technology through being designated as Korean best procurement products.

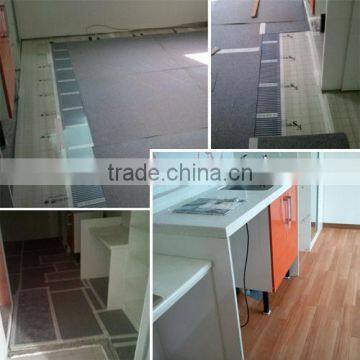

Our company is installing our handling electric heating materials in various construction sites directly.
So, we are able to recommend you suitable installing methods and installation subsidiary materials on the basis of the knowledge gained from the construction.

Are you interested in the business of electric heating matrials?
Then, Please consult with our e-PRO trade Co.,
We will strive hard to make your business succeed.

FIR Heat Zone Film Specifications

What is F/I/R Heatzone Heating Film?

F/I/R Heatzone Heating Film is a superior and advanced heating material for floors, ceilings and walls.

Carbon heating element (Electric conductor) and silver paste are printed on PET film of insulation and flame-retardant material, which is to be combined with Laminex Film after making an electrode of copper foil.

Carbon emits heat, far-infrared ray and anion by using an electric resistance. F/I/R Heatzone Heating Film, based on far-infrared radiant heat, gives a longer heating effect than other heating systems. Far-infrared ray and anion are known to effectively suppress odors and growth of germs and boost the metabolism of the human body, not to mention providing a healthier environment.

Advantages of FIR Heat Zone Film Heating

Capable of reducing installation expenses due to an easy to install
Faster heating effect due to parallel structure
Capable of partial heating and saving unnecessary heating expenses
Less electro -magnetic wave
Far-infrared ray and anion suppress odor and germs
No noise, dust, and carbon monoxide
Simple structure and fewer product failures

Electric Wire Connection Method to FIR Heatzone Film

1) Make a hole on the middle of copper foil of FIR Heatzone film with puncher.

2) A hole is made.

3) Insert pressed terminal between the silver booth bar and copper foil.

4) Combine eyelet terminal to pressed terminal through hole.

5) Cap the eyelet terminal.

6) Press all terminals with presser

7) Apply special insulation tape where the wire and film is connected to prevent humidity.

8) Finish electric wire connection

For maximum heating effect, connect electric wires to FIR Heatzone film by parallel and diagonal connection.

Energy Saving (PTC) Heating Film

Comparison of Electricity Consumption Following Change of Temperature

Results Of Test

Energy Saving (PTC) heating film shows maximum 23 percents of electricity consumption reduction following surface temperature is changing from 10 Celsius degree to 60 Celsius degree.

Energy Saving (PTC) Heating Film shows not only to save energy effects but also to protect rom partial overheating. So, it shows safer function than normal heating film.

Energy Saving (PTC) Applied Product :
30cm / 50cm / 60cm width products (excluding sauna film)

OEM product Manufacturing

We are able to produce OEM products and its minimum order quantity is 5,000 meters per order.

Possible to print the Buyers Brand,
Possible to change the Film Thickness, Width, Shape of Carbon Heating Element, Electricity Consumption, the position of Silver Booth Bar
Possible to make heating film for special Electric Voltage and for D.C. (direct current), etc.
