2016 Quickie Freestyle Powered Wheelchair Joystick Controller handle arm

• turns the power wheelchair motor on and off
• displays battery strength with an indicator light
• controls the mobility chair's direction, speed and braking^.
• houses the power chair's charging port
• operates the horn
• self-check protection
• Smoothly opteration
• Multi-functional work, drive direction only shift with controller hand arm turnning.
• Automatic brake function in downhill without any operation

This joystick controller was pulled from a Quickie Freestyle powered wheelchair. Hulsin R&D the board,software,hardware, with our patents. It has been tested and is fully functional. It is in good application condition for the electric power wheelchairs.

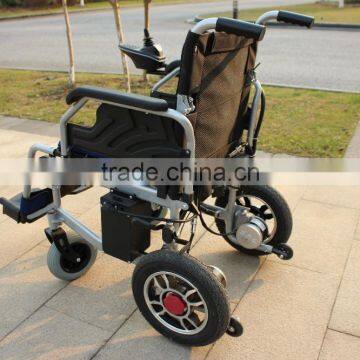

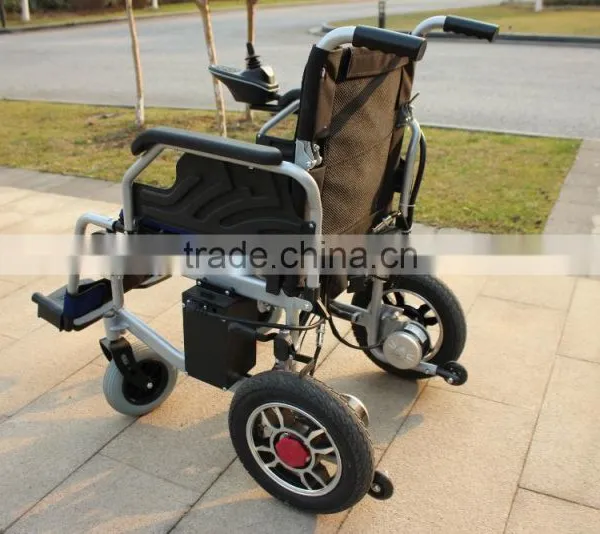

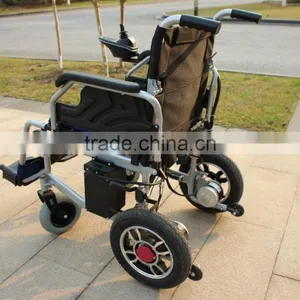

On the basis of the traditional manual wheelchair, electric power wheelchair is upgraded via increasing itshigh-performance,driving device, intelligent control device, battery and other components. It can control artificial manipulation of intelligent controller to drive the wheelchair to complete forward, backward, steering, standing, lying down, and other functions. It is a high-tech product that combines modern intelligent CNC, precision machinery, engineering mechanics and other areas.) Joystick controllers make independent power chair operation much easier for mobility impaired individuals. With this innovative technology, many people are able to keep doing many of the things they've always enjoyed, without requiring the constant assistance of another person.

Parameter

Power Voltage:24V DC

Working Voltage:20V – 30V DC

Output Current :0 – 60A

Charging Current :6A max

Control Way:Hall rocker comprehensive

Braking way :Electronic braking and

electromagnetic brake

Display Mode :LED

Waterproofing Grade :IPX5electronic equipment

Operating Temperature :-25℃ - 65℃

Storage Temperature :-40℃ - 80℃

Protection function: over current, low-voltage protection ,

high temperature, locked-rotor ,charging protection

Electronic differential, advanced driving algorithm and intelligent control, flexible operation, strong maneuverability

In the process of the electronic energy consumption brake, brake current closed loop. Short braking distance makes power even.

2. Intelligent charging protection, prevents charger reverse connection,

overshoot.

 PRODUCTION LINE photos

 For more information,do not hesitate to contact with me. Professional technical servcer
