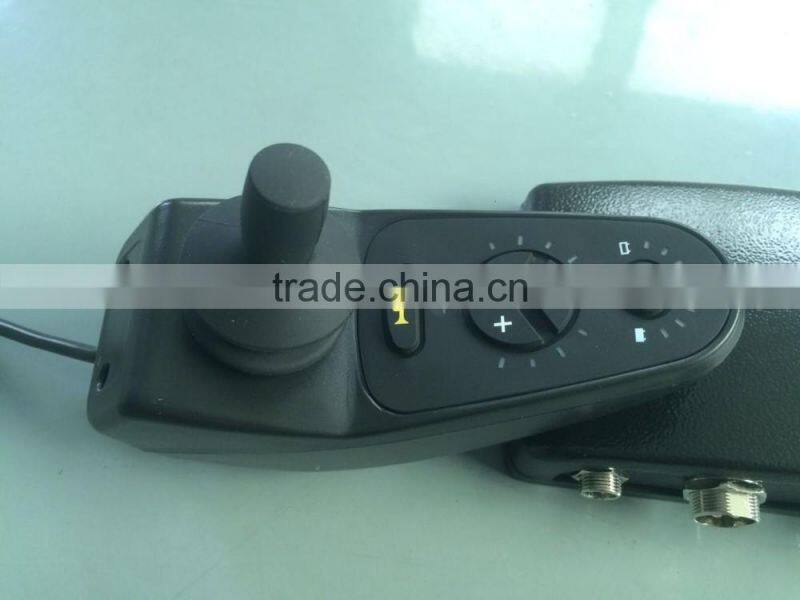

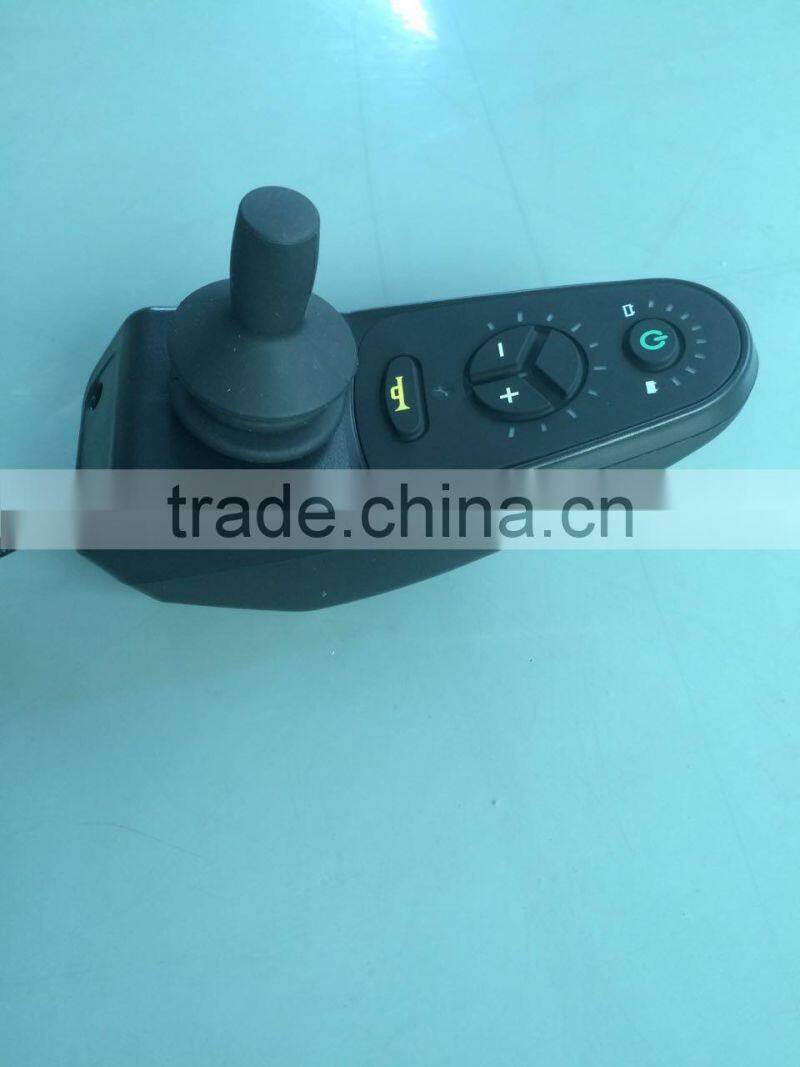

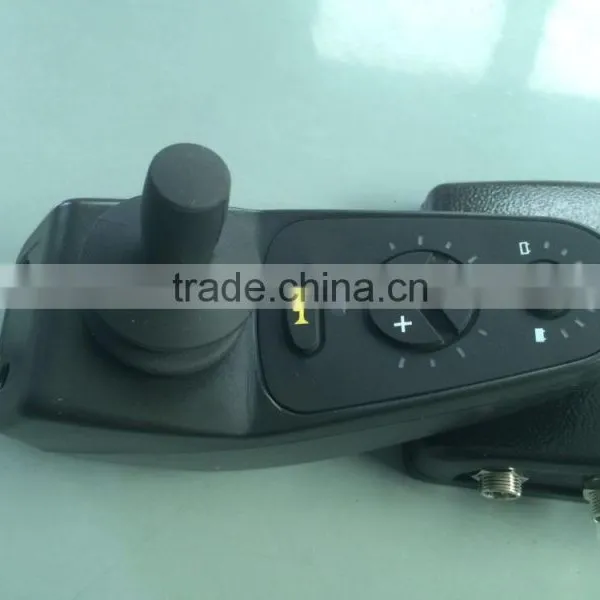

Joystick Silla de Ruedas Electrica Sin Escobillas

• turns the power wheelchair motor on and off
• displays battery strength with an indicator light
• controls the mobility chair's direction, speed and braking^.
• houses the power chair's charging port
• operates the horn
• self-check protection
• Smoothly opteration
• Multi-functional work, drive direction only shift with controller hand arm turnning.
• Automatic brake function in downhill without any operation



A Motor phase A

B motor phase B

   C motor phase C

   1 brake 1

   2 brake 2

   3 Hall red wire (5V)

   4  Hall Yellow wire(phase A)

   5  Hall Green wire (Phase B)

   6  Hall Blue wire (Phase C)

  7   Hall Black wire (0V)





 PRODUCTION LINE photos

This joystick controller was pulled from a Quickie Freestyle powered wheelchair. Hulsin R&D the board,software,hardware, with our patents. It has been tested and is fully functional. It is in good application condition for the electric power wheelchairs.

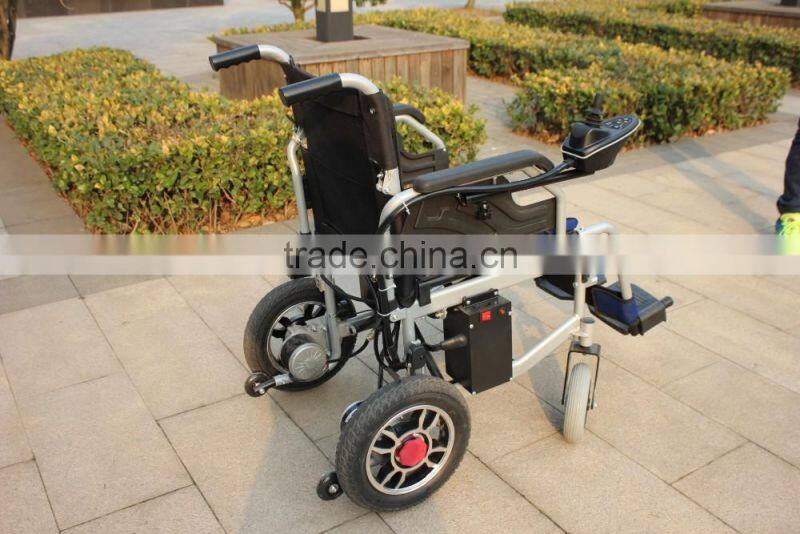

On the basis of the traditional manual wheelchair, electric power wheelchair is upgraded via increasing itshigh-performance,driving device, intelligent control device, battery and other components. It can control artificial manipulation of intelligent controller to drive the wheelchair to complete forward, backward, steering, standing, lying down, and other functions. It is a high-tech product that combines modern intelligent CNC, precision machinery, engineering mechanics and other areas.) Joystick controllers make independent power chair operation much easier for mobility impaired individuals. With this innovative technology, many people are able to keep doing many of the things they've always enjoyed, without requiring the constant assistance of another person.

For more information,do not hesitate to contact with me. Professional technical servcer
