Help CenterJINXIN Channel Pipe and Fitting YK-9352(The Whole Set)
Related Products
-
Stainless Steel U Channel for Glass Railing SystemUS$ 10 - 60MOQ: 10 Pieces -
Stainless Steel Good Quality Pipe, Channel PipeUS$ 20 - 40MOQ: 300 Sets
-
JINXIN Manufacturer for Inox Square Slot Tube for Glass Railling Handrail PricesNegotiableMOQ: 300 Pieces
-
40*100 Stainless Steel u Channel Glass for HandrailUS$ 35 - 50MOQ: 10 Pieces
-
Stainless Steel U Channel Tube Double U Channel Fence Posts(YK-9351)NegotiableMOQ: 300 Pieces
Specifications
JINXIN Channel Pipe and Fitting YK-9352(The whole set)Material:AISI304/316Advantage:Various size and easy to install

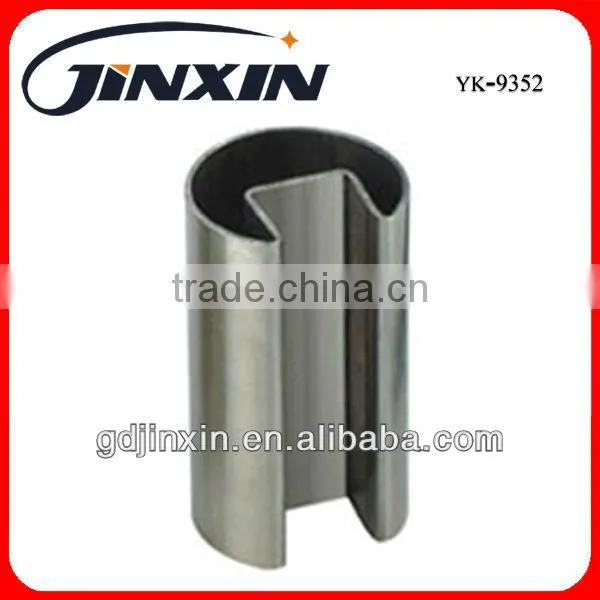

JINXIN Channel Pipe and Fitting YK-9352 (The whole set)
1)material:Stainless Steel AISI304/316,SUS304/316
2)Surface:Stain or mirror polished
3)Size:Diameter:42.4mm, 48.3mm, 50.8mm, 63.5mm, 76.2mm, 101.6mm
Thickness:1.0mm, 1.2mm, 1.5mm, 2.0mm
L:15*H:15mm; L:24*H:24mm; L:27*H:30mm
3)Function:Clamp the tempered glass panel with 8~12mm thickness and hold the handrail.
4)Application:Glass fencing of apartment, balcony or deck and so on.
5)Delivery Time:15~45 days after receipt of advance payment.
6)Payment Term:30%~50% in advance as deposit.
Other balance is paid before delivery and shipment.
7) Accessories such as screw and nut are available; all the fittings are solid.
8)We can do OEM&ODM.
Material |
Finish |
Outside Diameter |
Slot Width*Depth |
Thickness |
Length |
SS304/316 |
Satin/Mirror |
25.4 |
15*15 |
1/1.2/1.5/2 |
5 or 6m/pc |
SS304/316 |
Satin/Mirror |
38.1 |
15*15 |
1/1.2/1.5/2 |
5 or 6m/pc |
SS304/316 |
Satin/Mirror |
42.4 |
24*24 |
1/1.2/1.5/2 |
5 or 6m/pc |
SS304/316 |
Satin/Mirror |
42.4 |
20*20 |
1/1.2/1.5/2 |
5 or 6m/pc |
SS304/316 |
Satin/Mirror |
48.3 |
27*30 |
1/1.2/1.5/2 |
5 or 6m/pc |
SS304/316 |
Satin/Mirror |
50.8 |
15*15 |
1/1.2/1.5/2 |
5 or 6m/pc |
SS304/316 |
Satin/Mirror |
60.3 |
34*34 |
1/1.2/1.5/2 |
5 or 6m/pc |
SS304/316 |
Satin/Mirror |
63.5 |
20*20 |
1/1.2/1.5/2 |
5 or 6m/pc |
SS304/316 |
Satin/Mirror |
76.2 |
25*25 |
1/1.2/1.5/2 |
5 or 6m/pc |
SS304/316 |
Satin/Mirror |
88.3 |
30*40 |
1/1.2/1.5/2 |
5 or 6m/pc |
(HOT)Channel Pipe YK-9352
(HOT)Channel pipe (Whole set)
JINXIN Advantages: | |
1)Various kinds for customer selection(More then 500pcs different casting moulds) | |
2)Complete modle for client choice:1/4”,1/2”, 1”, 11/2”,2”, 3”, 4”, 42.4,50.8 | |
3)Professional experience and support special design (AUTO CAD & 3D) | |
4)Tailer Made(Offer the special design of your requiretments) | |
5)Competitive price with more discount(Real Manufactory) | |
6)Excellent quality control(100% check one by one) | |
8)In time delivery(15-30days after payment) | |
7)Good service before and after sales | |
9)OEM, ODM is acceptable | |
JINXIN Basic Information: | |
Quotation |
FOB Guangzhou Port of China,included all packing cost except special requirement. |
Material: |
All products are made by stainless steel 304 and 316. We can offer original Material Test report for refer. |
Packing Details: |
Each type of product is packed in separate inner boxes. Each outer box weight is not over 20kgs. |
Packing Marks: |
Each carton indicates properly the pallet number,box number and code number of the product it holds,material type(AISI 304/306) and inside quantity. |
Delivery: |
In oder to be in a position to in form the shiping agent accordingly, when goods are ready for shipment,we will send all details of the merchandise such gross and net weight,number of boxes/pallets and overall dimensions to client. |
Delivery Time: |
15~45 days afer receipt of advance payment. |
Documents Offered: |
For shipment: Original Bill Of Loading Original Invoice Original Packing List |
Payment Term: |
30~50% in advance as deposit. Other balance is paid before delivery and shipment. |
|
Bank information:
|
Company:JINXIN HARDWARE PRODUCT LIMITED Beneficiary’s A/C NO:440449559838 Bank Code:004 SWIFT Code :HSBCHKHH |
