Home > Construction & Decoration > Heat Insulation Material > Glass Wool > KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit

Name: KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit
Brand: Keruida
SKU: 142804416
Availability: InStock

Fuzhou Keruida Electric Porcelain And Appliance Co., Ltd.

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit thumbnail-1

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit thumbnail-2

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit thumbnail-3

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit thumbnail-4

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit thumbnail-5

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit thumbnail-6

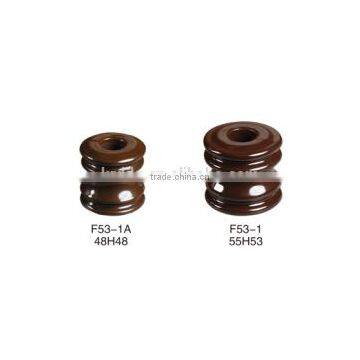

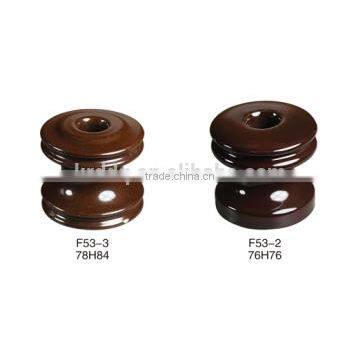

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit photo-1

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit photo-2

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit photo-3

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit photo-4

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit photo-5

KRD Colorful Spool Porcelain Insulator for Low Voltage Circuit photo-6

US$ 0.15 - 0.25 MOQ: 5000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

Keruida

Model Number:

53-2

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name Keruida

Model Number 53-2

Type Insulator

Material Porcelain

Application Low Voltage

Rated Voltage 220V

Tensile Strength 13KN

Product Description

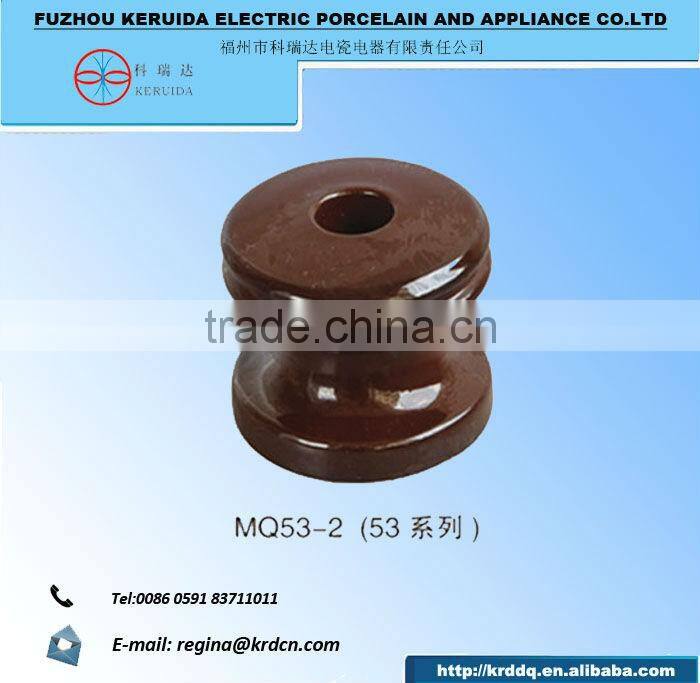

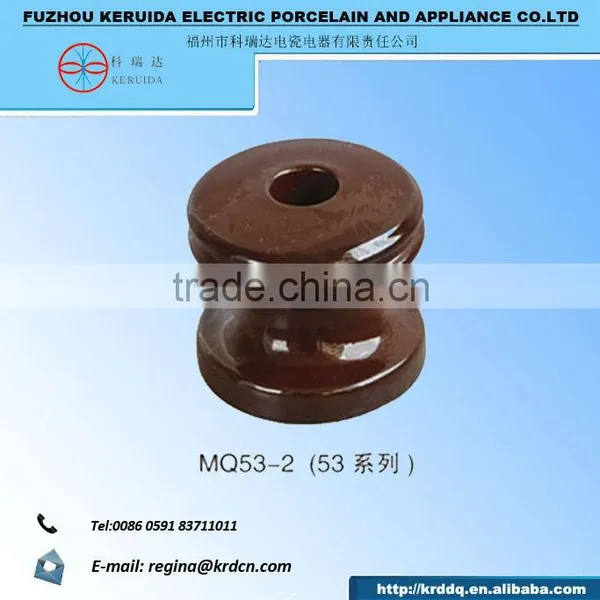

KRD high quality spool porcelain insulator for low voltage circuit

Item Details

Model: F53-2 ANSI
Kinds: Insulator - porcelain insulator
Metarial :porcelain
Metal :
Current , voltage :
Surface: Glazed

Other types:stay insulator ,line post insulator ect .Porcelain insulator53-2C :

Item Number	53-2
Size&Color	Brown
Market	All markets
Transverse Strength	13KN
Low frequency voltage	12-25KV
Standard	ANSI

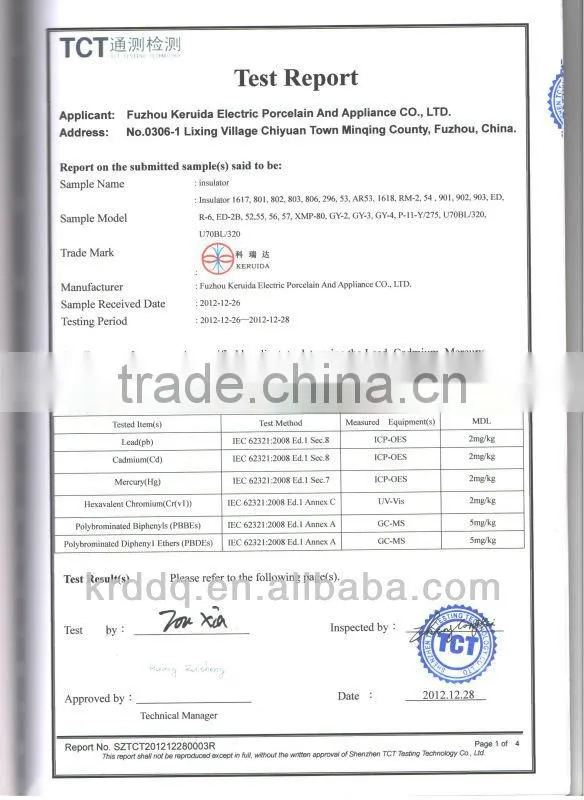

Certification	CE&ISO9001-2000
OEM	Available

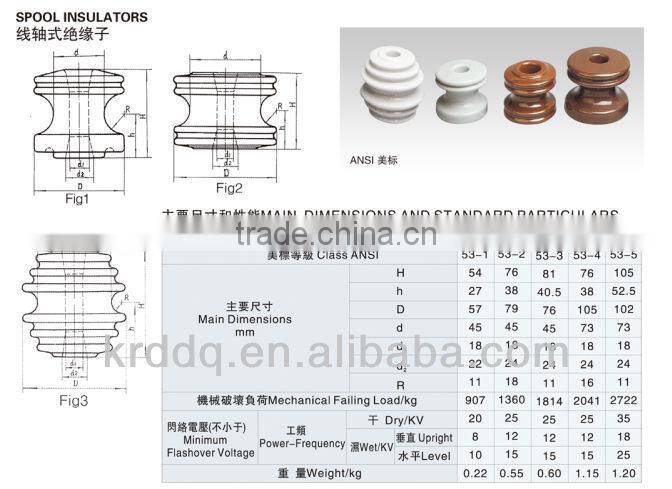

ANSI Class				53-1	53-2	53-3	53-4	53-5
Transverse Strength/lb(kN)				2000(89)	3000(13.3)	4000(17.8)	4500(20)	6000(26.7)
Average Flashover Voltage	Low Freq. Dry/kV			20	25	25	25	35
	Low Freq. Wet/kV		Vertical	8	12	12	12	18
	Low Freq. Wet/kV		Horizontal	10	15	15	15	25
Net Weight (kg)				0.22	0.55	0.55	1.0	1.2
Main Dimension (mm)		H		54	76	81	76	105
		D		57	79	76	105	102
		d		45	45	45	73	73
		d₁		18	18	18	18	18

Product show :

Related Products

Company Information

Fuzhou Keruida Electric Porcelain and Appliance Co.,Ltd. is located in Chiyuan Town,Minqing near the capital city of Fujian Province -Fuzhou, which is called the first porcelain town of Fujian. There is abundant kaolin mineral resource, a long history of porcelain production, convenient land, sea, and air transportation , which benefits our company's development.

Factory established in 1998 and company established in 2008 with over 100 skilled employees.We specialized in manufacturing and exporting electrical porcelain appliances,such as porcelain & bakelite lamp holders , fuse , terminal blocks, plugs & sockets , insulators, knife switch, porcelain connectors, hardware, energy saving lamps, LED lamps etc .

Our prodcuts meeting different markets all over the world.We had exported to Russia ,Europe ,Brazil ,Mid-east , Africa, Asia and so on .Because of good quality ,competitive price and good service,our products had good complimented by our clients.

Very pleased to accept customer's special order ,and we can help customers to design and manufacture in any specific specification requested.Welcome to cooperation with us and seek busines development together.

Our Services

Services

1. Reply your enquiry within 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. OEM & ODM are accepted.

4. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.

5. Special discount and protection of sales area are provided to our distributors.

Advantage ( Why the customers choose us )

Factory direct price.
Good quality.
Fast delivery . ( About 30 days after receiving L/C at sight or 30% TT deposit )
Customized design ( The color ,the surface ,the packaging etc .)
Safe use .
Free samples and good service.

Packaging & Shipping

Packaging and Delivery:

packaging Detail :

1. standard export carton.

2.size :43*34*24.5cm ,60pcs/ctn,GW:32.5kg ,NW:23.5kg

3.shipment:About 30 days after receiving L/C at sight or 30% TT deposit

FAQ

Q: What is your MOQ of this model?

A: 5,000 pcs per style

Q: What is the delivery time?

A: 30 days after receiving 30 percent deposit of the total amount

Q: Is it all right to make customer's own brand name?
