Wholesale Universal 12V Car Seat Heating And Cooling System
Specification:
Car seat ventilation cooling and heater heating system
Working Voltage: DC11V-15V
Heating Power: 56W±10%
Cooling Power: 10W±10%

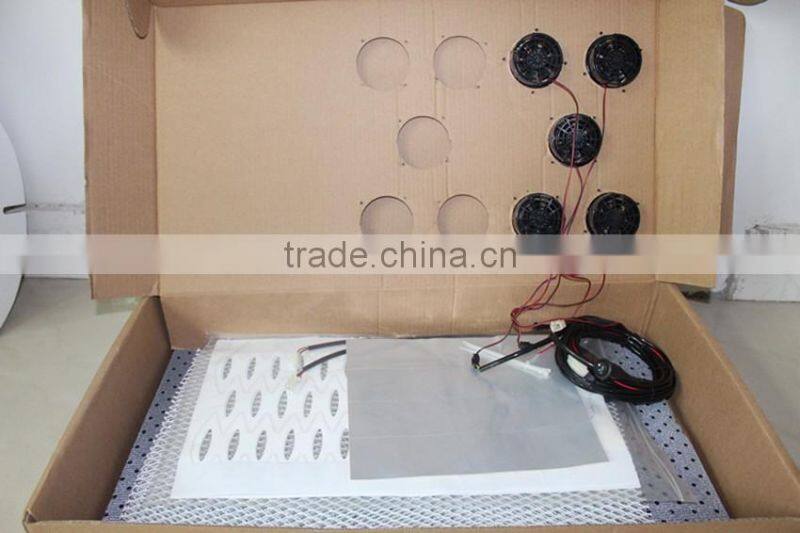

Materials: 2pcs of heating pads (1pc for backrest; 1pc for cushion) 2pcs of air networks
Heating materials: Carbon fiber
Carbon fiber pad Size: backrest 480×280mm; cushion 480×280mm
Temperature controlled:30 (lowest) to 70 (highest)
Dimensions of networks: backrest 480×270mm; cushion 480×270mm
Length of Wire Harness: 2800mm 5 fans (3 install in bottom and 2 install in backrest)
Low noise:20-35dB
1 Set of wire harness
1 Dual Temp Heat/Cool/Off Round Switch

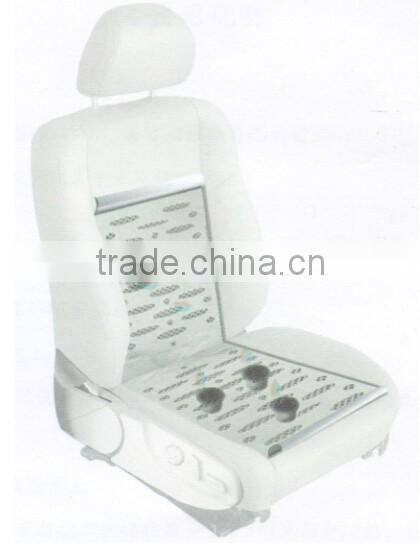

The seat air-conditioning system is a complement to the car air-conditioning system.
It can regulate the temperature and wetness of the seat surface to satisfy different drivers' demands in different seasons as much as possible.
It consists of air suction and blowing device, breather layer,
pressure resistance materials, wind direction transformation device and wind strength regulation device.
It works at the seat surface in the way of air draft and heating in order to dispel hot, cold and wet air, which makes drivers keep in touch with the seat in a ameliorative ventilation environment.
Accessories:

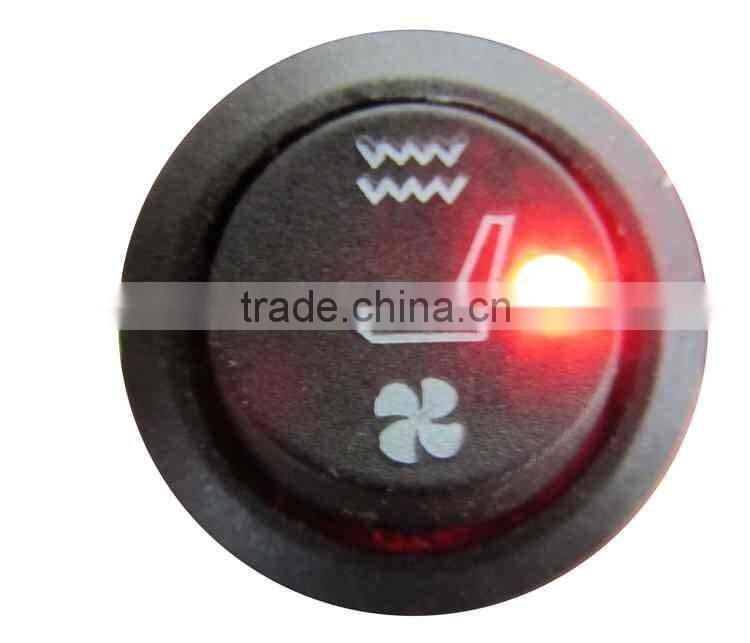

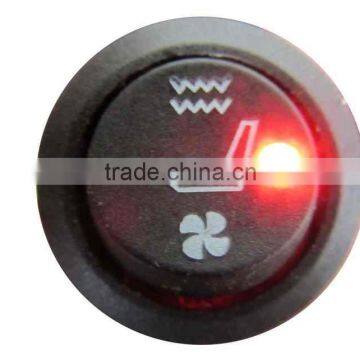

Switch:
The following is this heating ventilation switch, the switch requires hole drilling 20mm diameter drill before they can install the switch, press up is red, heating function, press down on the green light, ventilation function:

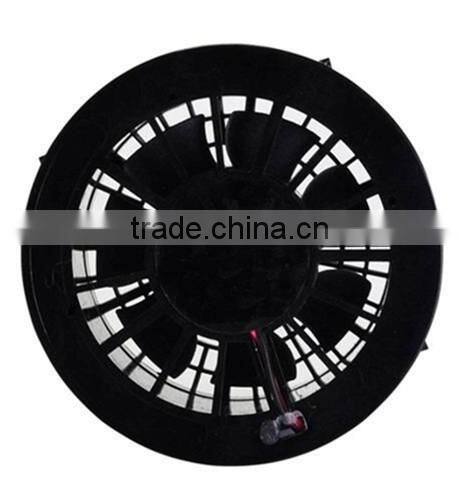

Ventilation fans:

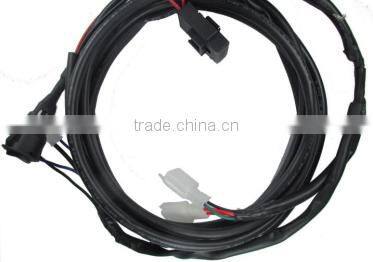

Wire and harness:
Air deflector:

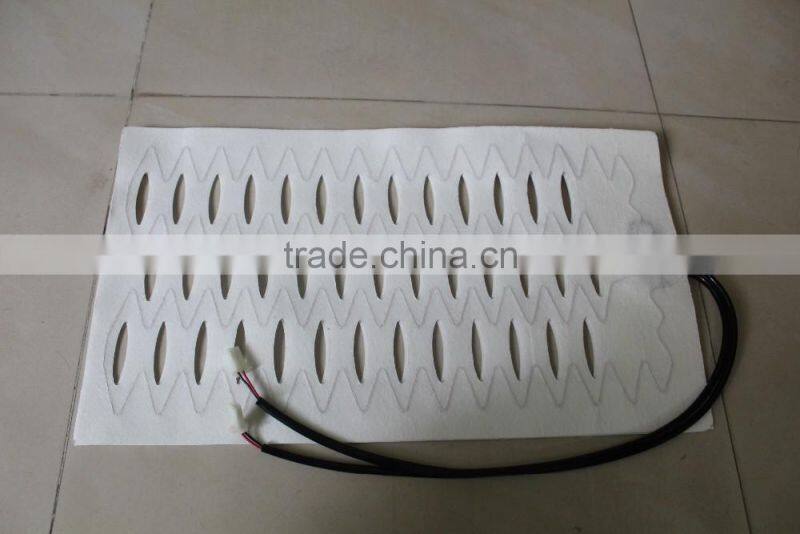

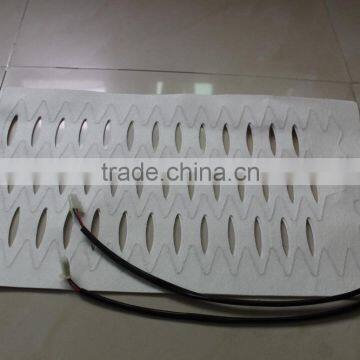

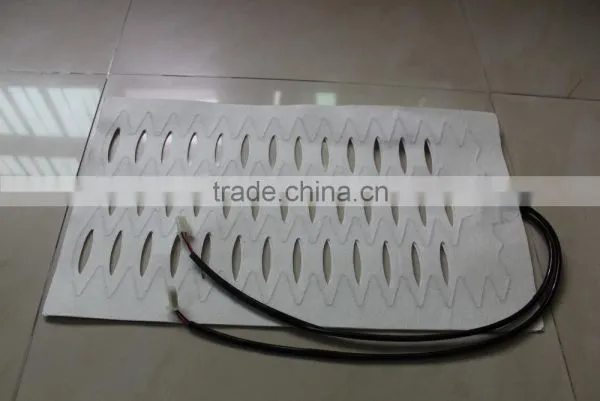

Heating pad:

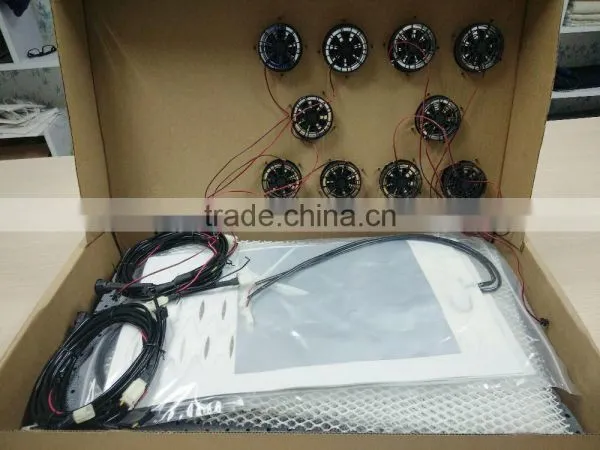

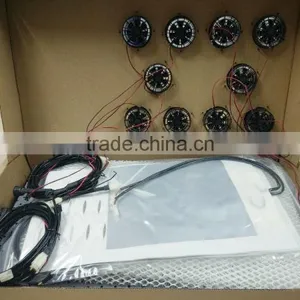

Packing and shipping of car heater and cooler system
Packing: Suction card or paper box
Delivery Details:within 7-10 after receiving your prepayment
| QE | Fatigue Durablity Test- 500 times | Electro- hydraulic servo fatigue test rig is for the car seat test equipment perormance testing |
| 10 thermocouples (the point 10 is room temperature)to real -time to measure of heating pad | ||
| QA | Flammablity testing | Materials for Vehicle interiors Flammability Materia Requirements "US regulation 571.302 and acc .to Din 75 200 |
| High- Low Temperature test | Low Testing Temperature 20℃ (-4) ℉ | |
| FQC | High Votage shocking testing | 18 Votage against 8 min .100% checking |
| Power on testing | 100% Power on testing in 3 min per each one | |
| Resistance Test | Micro-Resistance Meter(0.01Ω) to check each pad |
Real-time temperature curve
