US$ 198 - 235 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
Talents.3m pneumatic antenna mast
Model Number:
TAL-TAM002
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Tianjin, China
Brand Name Talents.3m pneumatic antenna mast
Model Number TAL-TAM002
Lift Mechanism Other, foot pump
Lift Drive / Actuation Foot
Power 220V/12V
Rated Loading Capacity 50KG
Min. Lifting Height 1.6m
Max. Lifting Height 3.05m
Table Size 120mm
Overall Dimensions 3.05m
Weight 17kg
Certification CE
Warranty 1 Year
After-sales Service Provided No overseas service provided
Product Description

Application on 3m pneumatic antenna mast

1.Lighting equipment,

2.antenna equipment,

munication shelter,

4.security monitoring equipment and etc.

DETAILS

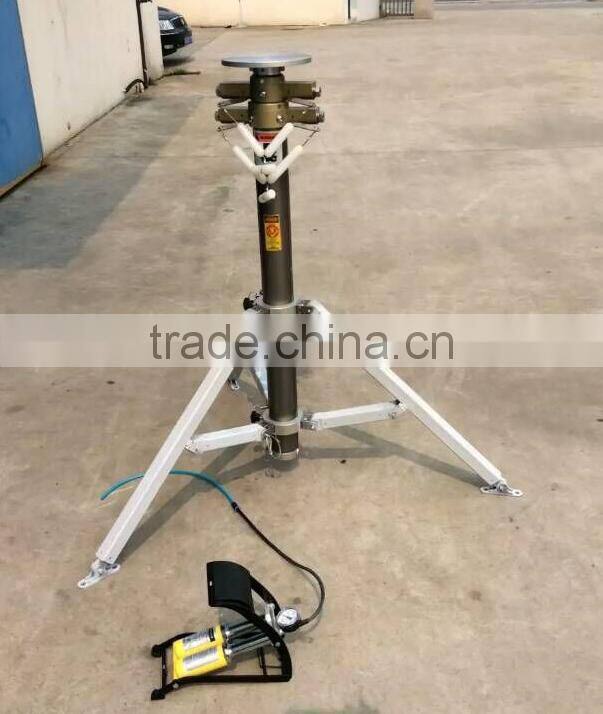

3m pneumatic antenna mast
Main Material
Aluminum-magnesium alloy 6063B
Pole color
light coffee color by Anodizing
Loading weight
50kg
Specification
one unit pole includes 3 sections.
Extended length 3.0m,
Closed length 1.5m
Each section as following : Outer diameter*wall thickness
1# 98mm*4mm, 2# 82mm*3.5mm, 3# 66mm*3mm
(Note:the diameter tolerance is ±0.2mm)

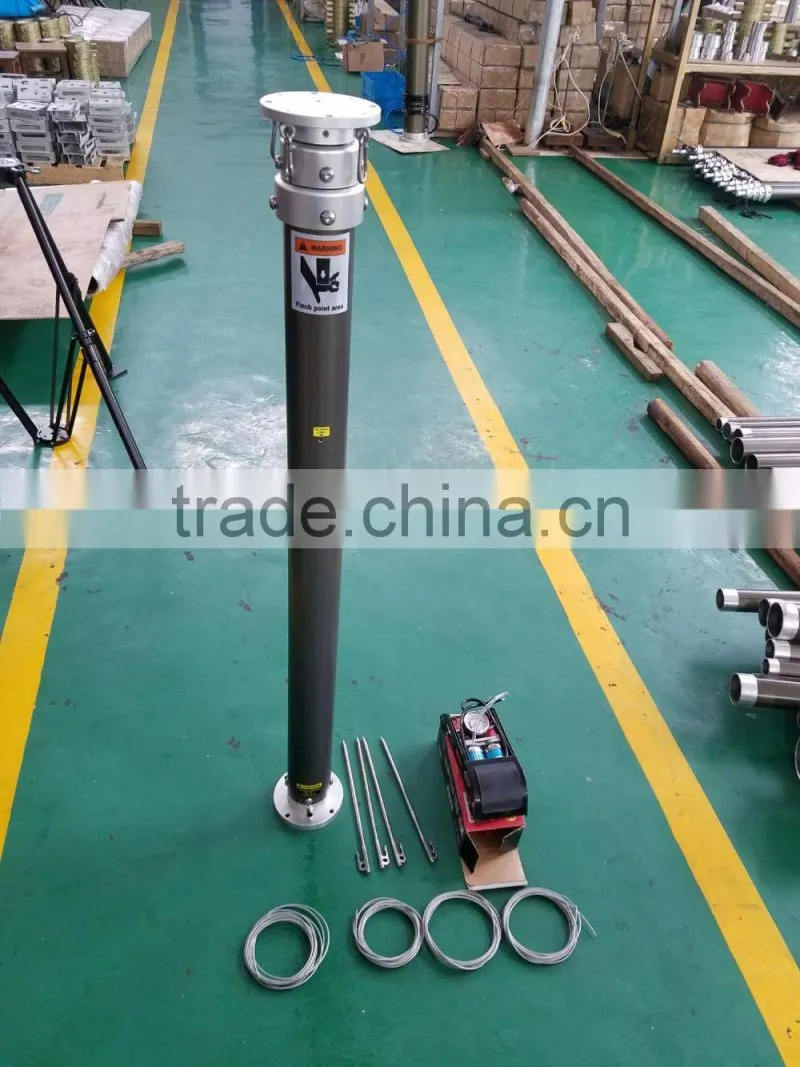

Accesories
A.bottom flange
aluminum flange
C.wire rope
D.Pulling ring
E.foot pump
F.Intake pipe
G.nail for fixing a wire rope
H:Connector for air inlet and the Intake pipe
I:aluminum Tube ring for each section pole

Main Features

1)Simple structure,
2)Craftsmanship,
3)High security,
4)Reliability,
5)preservative,
6)No noise,
7)No pollution,
8)Easy to maintain.

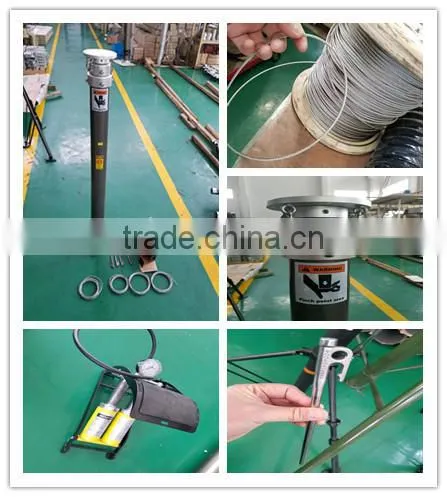

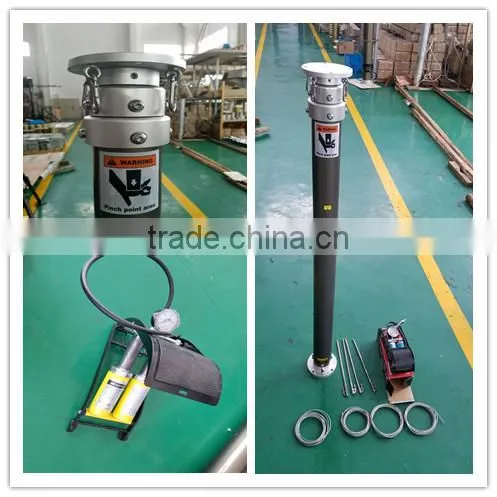

Detailed Images

FLANGE

material: aluminum

color treatment:silver by Anodizing

size: diameter 150mm, thickness 12mm

Note:it is just common design. if you have specifical

           application,let me know it, fittable accessories will

           made to meet your requet.

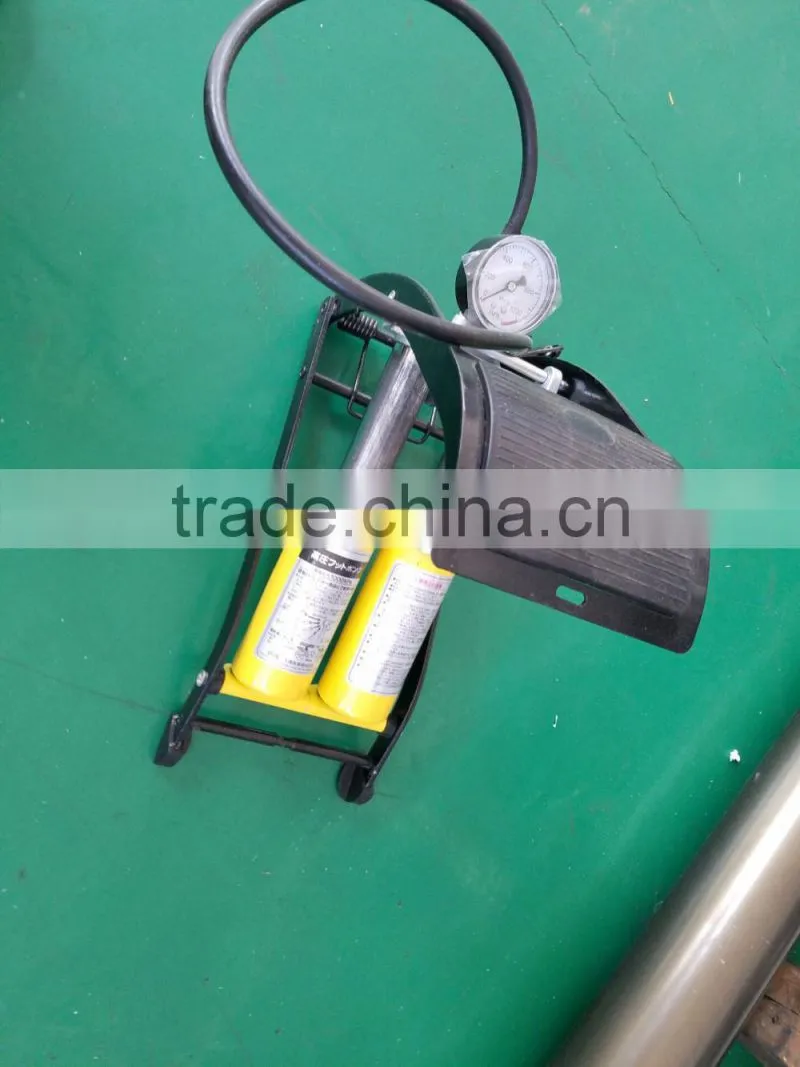

FOOT PUMP

Material: Steel body part+ABS pedal
Color:: yellow+balck or blue+balck
Extended size: 35*30*15cm
Note:this foot pump could be inteaded by air compressor

           if you want. but usually decided by the height and

          loading weight.

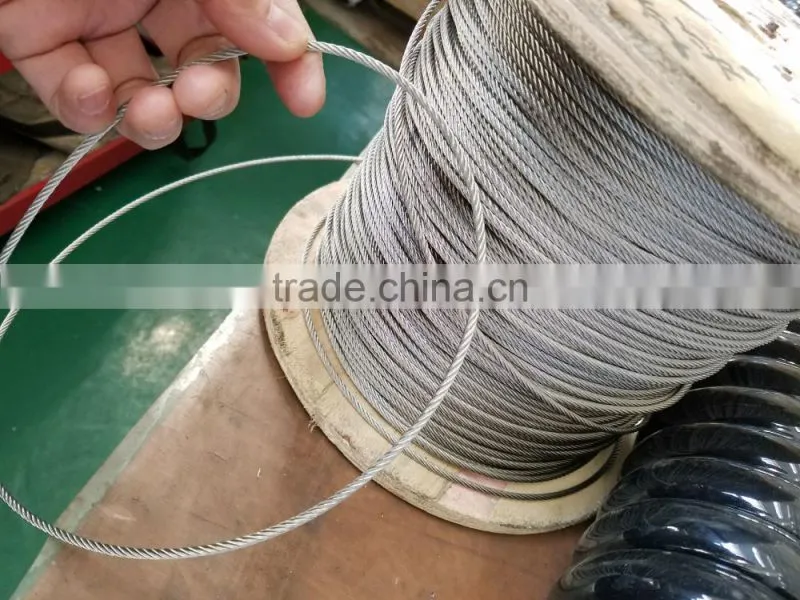

WIRE ROPE

Material: stainless steel 304
Size: diameter 2mm, length 5.0m
Note:if you want to get the tripod stand to fixed mast

           and move easily, we can provide, just as your request.

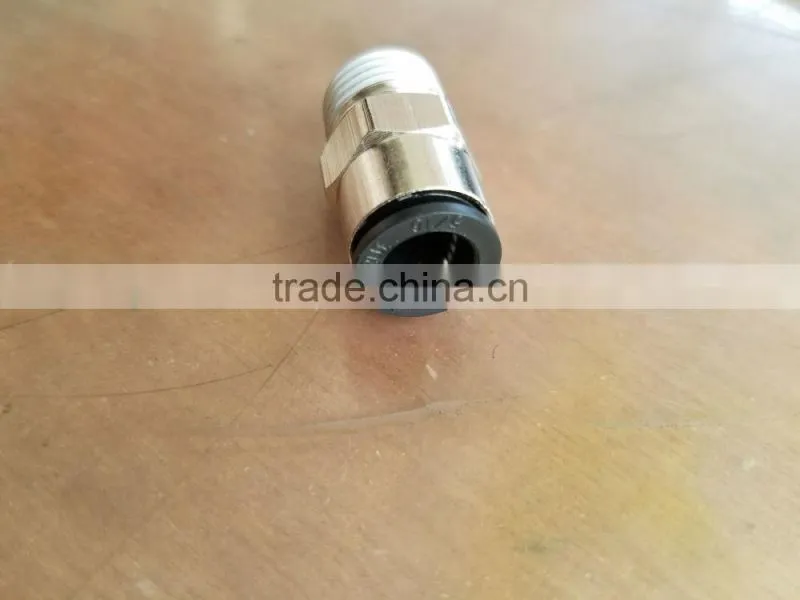

AIR INLET CONNECTOR

Material: copper
Size: 1/4''-8, which is international general standard

Our Service

OEM SERVICE as customers' request for application of the pneumatic aluminum mast

          Our masts are customized according to customer requirements. If you need a pneumatic lift mast, We can provide

drawings and the corresponding price.

          Please tell us the height, maximum lift length, weight of the load and the working conditions.

Packing & Delivery
Packaging
Size
190 (L) * 20 (W) * 25 (D)
Weight
21KG

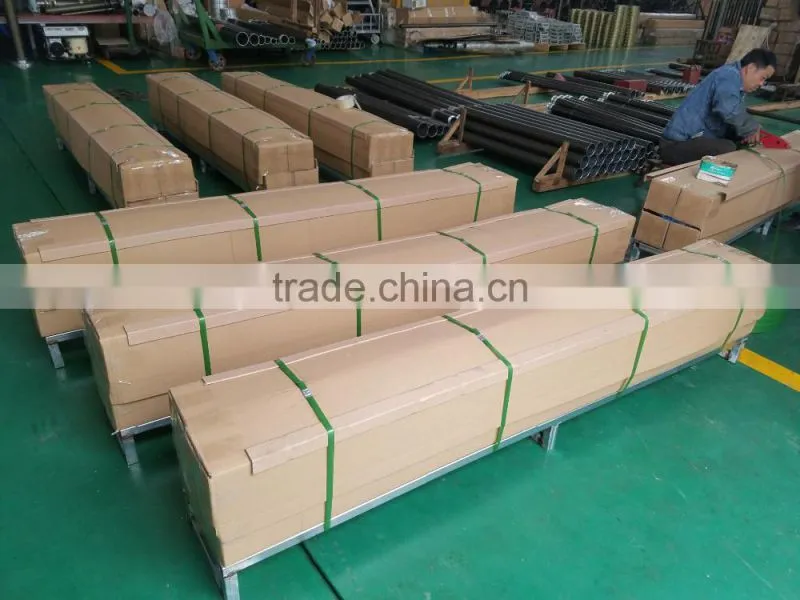

Packaging Details
The normal package is carton.
inner package is pp bag and foam.
if the quantity is large, we can use the
wooden box .
Our Company

Tianjin Talents International Trade Co., Ltd. was registered in Tianjin China in 1995, from then on, we devoted
ourselves to the handlings of the supply to the oversea markets of fiberglass products,especially in telescopic mast in

different material.Tianjin Talents is the Gold Supplier in Alibaba,we can provide Trade Assurance to ensure the safe of your money.We will provide the customized service and the professional after-sales service.
