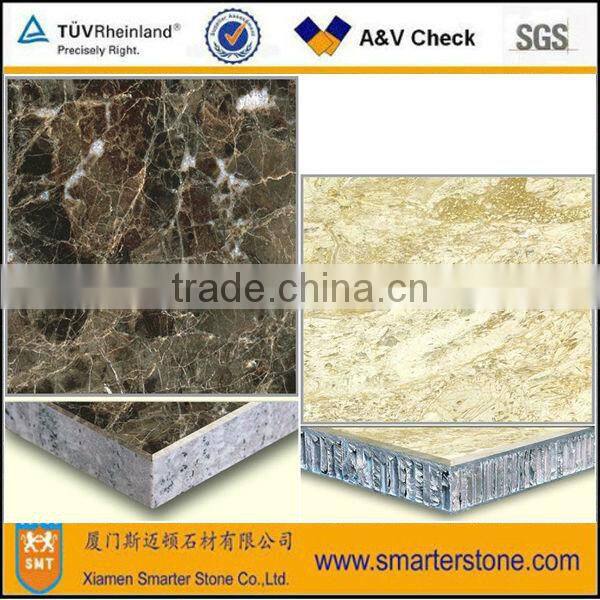

Ceramic composite marble

Specifications

composite marble
1)Own factory
2)quickly delivery
3)Free small sample
4)Package:Wooden Crates

Composite marble

1) Thickness Marble 3mm+ Ceramic 9mm ,Thickness Tolerance: +/-1mm

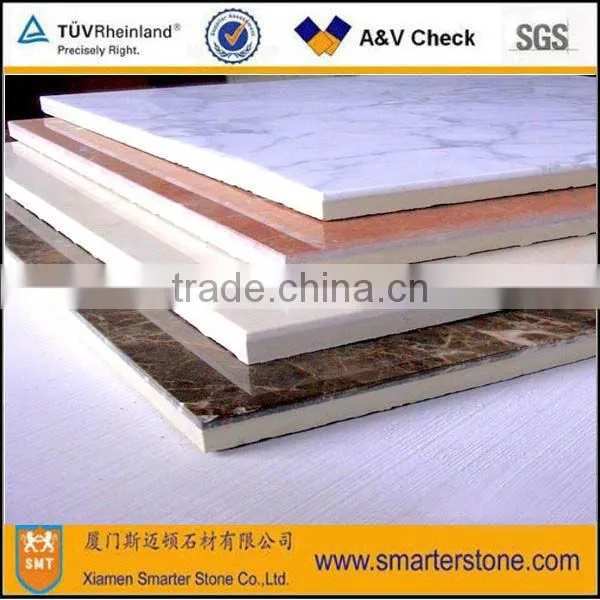

2) Based on Modern Stone Technology , Using 3mm Natural Marble Tiles laminated with granite,Ceramic, Aluminum and Honeycomb.

3) Advantages

a)High Intensity Than Marble

b)Easy Installation( Same as ceramic or porcelain)

c)Wide Temperature Resistance for expoxy

d)Light Weight than marble

e)Save material and transportation cost

f) Easy Transportation

4) Features

Material	9mm ceramic+3mm marble 15mm aluminum+5mm marble
Absorption rate	0.2%
Dimensions	600x600mm,300x600mm,400x400,800x800mm,1000x1000mm
Packing	Paper packing and wooden Crate
Color	White, beige, pink,  ect…many color avaliable
Finish	Normal polished,super glossy
Usage	Floor and wall

 5).Inside packing

a)300x600mm  8pcs/ctn, 30 kg/ctn

b) 600x600mm 4pcs /ctn , 30kg/ctn

c) 300x600mm 8pcs/ctn, 30kg/ctn

d) 400x400mm 10pcs/ctn,30kg/ctn

e)800x800mm 3pcs/ctn,50kg/ctn

f) 1000x1000mm 2pcs/ctn.60kg/ctn

7.Delivery time  20days one container.

8 .We have many different color and design in this series, please contact us for more informations

9. it’s good for house flooring, super market, shopping mall ,warehouse flooring. etc…

6. Our price is very competitive, and we ensure to offer the good quality.

7. Related Description: Composite Panel, Marble Porcelain Tiles, Laminated marble tile, Compound Marble, Honey-Comb Panel, Aluminum Composite Panel, Marble Panel, Marble Composite Panel and tile.

8.It’s avaliable in polished, honed and etc

9. Below are the quality  report

Item NO	Test item	Unit	GB / T41001-2006	Test result	Result
1	Length tolerence	mm	Length 600 ±1	599.7-600	Passed
2	Side Straight	%	±0.2	-0.04-+0.05	Passed
3	Right Straight	%	±0.2	-0.05-+0.04	Passed
4	Surface flathness	%	Center curvature	-0.04-+0.04	Passed
5	Surface quality	…..	A minimum of 95% the tiles shall be free from visible defects that would impair the apperace if major area of tiles.	No visible defects	Passed
6	Water abscorption	%	Mean value ≤0.5 Single value ≤0.6	0.08 0.06-0.01	Passed
7	Breaking pressure	N	When the thickness is ≥7.5mm,the average shall be  ≥1300	1764.6	Passed
8	Modulus of rupture	MPa	Mean value E ≤35 Single value ≤32	37.2 36.6-38.0	Passed
9	Luster degree	…	≥55	70-73	Passed
10	Abrasion resistance	mm3	≤175	131	Passed
11	Resistance to frost	…	No crack or peeling	No	Passed
12	Resistance to household chemical reagent	…	No lower than UB level	UA level	Passed
13	Resistance to chemical of swimming pool	….	No lower than UB level	UA level	Passed



Specifications



stone honeycomb panels commonly composed by 3-5mm stone veneer and 10-25mm aluminum honeycomb panel.



For exterior curtain wall:4-5mm stone + 25mm aluminum honeycomb panel

For interior wall panels: 3-4mm stone + 15mm aluminum honeycomb panel

For flooring panels: 5-8mm stone + 10-15mm aluminum honeycomb panel



You are warmly welcome to visit our company and factory at your convenience. We will offer you attractive price. Looking forward to a fruitfully mutual beneficial cooperation with your esteemed company.
