roller chains
Product name: harvesters chain/agriculture roller chains
| PARAMETER: | ||||||||||
| ChainNO. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | KN | KN | kg/m | |
| ZGS38 | 38 | 16 | 22 | 9 | 39 | 43 | 21.5 | 40 | 56 | 2 |

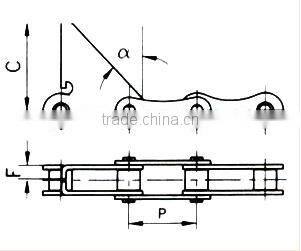

| ChainNO. | P | C | F | α |
| mm | mm | mm | ||
| ZGS38F1 | 38 | 6 | 15 | 32.5 |

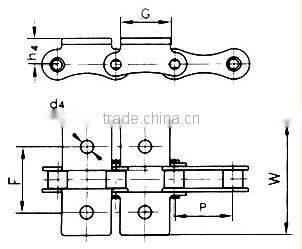

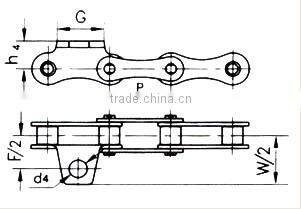

| ChainNO. | P | C | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | |
| ZGS38F2 | 38 | 17.2 | 59 | 78.1 | 19.6 | 11 |

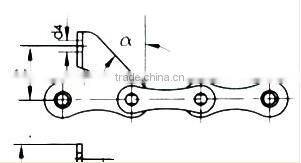

| ChainNO. | P | C | F | W | α | d4 |
| mm | mm | mm | mm | mm | ||
| ZGS38F3 | 38 | 30 | 52 | 68.4 | 46.5 | 6.5 |
We also supply following short pitch precision roller chain:
Simplex Roller Chains&Bushing Chains: 04C-1,06C-1,085-1,08A-1,10A-1,12A-1,16A-1,20A-1,24A-1,28A-1,32A-1,36A-1,40A-1,48A-1
Duplex Roller Chains&Bushing Chains:04C-2,06C-2,085-2,08A-2,10A-2,12A-2,16A-2,20A-2,24A-2,28A-2,32A-2,36A-2,40A-2,48A-2
Triplex Roller Chains&Bushing Chains:04C-3,06C-2,085-3,08A-3,10A-3,12A-3,16A-3,20A-3,24A-3,28A-3,32A-3,36A-3,40A-3,48A-3
Multiple strand Roller Chains:08A-4,10A-4,12A-4,16A-4,08A-5,10A-5,12A-5,16A-5,08A-6,10A-6,12A-6,16A-6,08A-8,10A-8,12A-8,16A-8

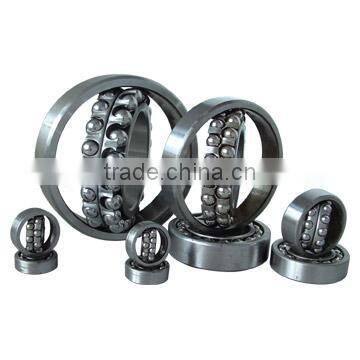

Also, we supply bearings, bushings, steel ball, sprockets in different size.
If you have any question or comments about chains, pls be free to contact us!
