Blade Sharpening machine / knife grinding machine
- 100 Unit / Units per Month
- Qingdao port
- T/T
- Second-hand sweeper second-hand mobile phone curved glass sweeper tablet computer curved glass sweeper
- Automatic Ultrafine Powder Grinder with Ceramic Mortar
- Automatic Powder Grinder with Ceramic Mortar
- Pneumatically-lifted Laboratory Grinder (Special grinding equipment for scientific research in Colleges and Universities)
- Pneumatically-lifted Grinder with Double Pestle and Ceramic Mortar (manual discharging)
- Pneumatically-lifted Grinder with Ceramic Mortar (Large grinder for chemical material and new material)
Product Details
Condition: | New | Type: | Surface Grinding Machine | CNC or Not: | Normal |
Max. Grinding Diameter: | 180mm | Max. Grinding Length: | 1500mm | Place of Origin: | Shandong, China |
Brand Name: | HUIXIN | Model Number: | YM3000 | Voltage: | 380V |
Power(W): | 5.3kw | Dimension(L*W*H): | 5300*1300*1400mm | Weight: | 2900kg |
Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

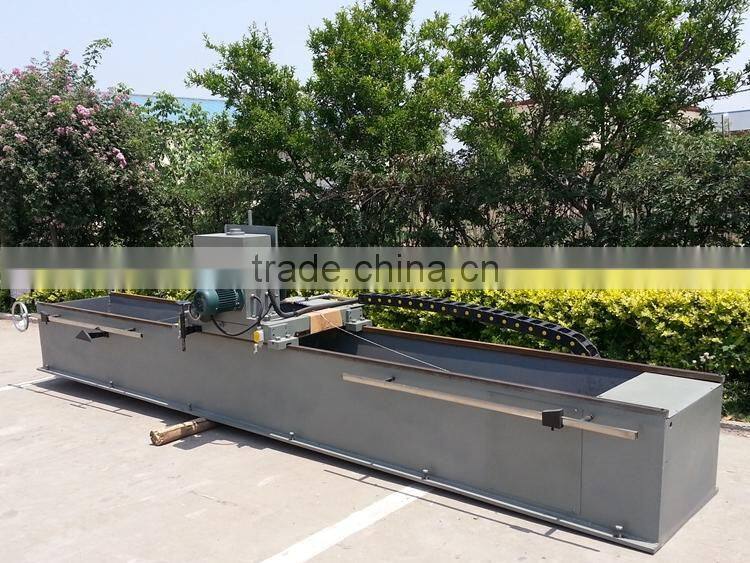

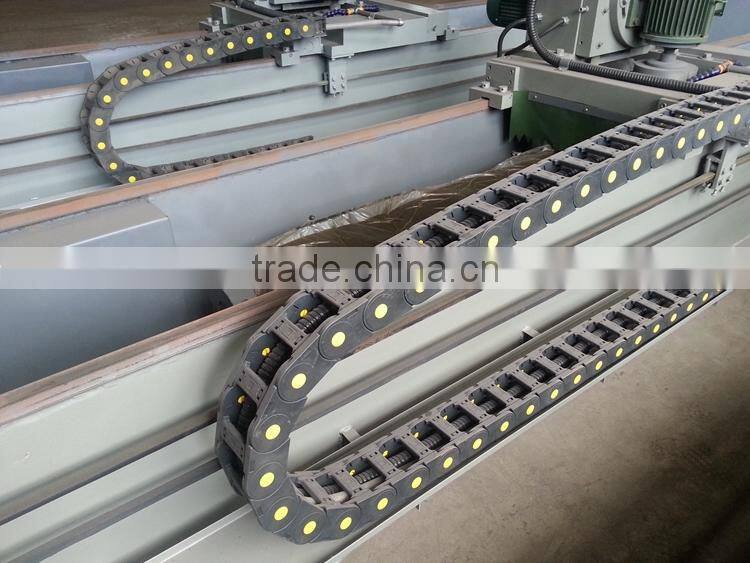

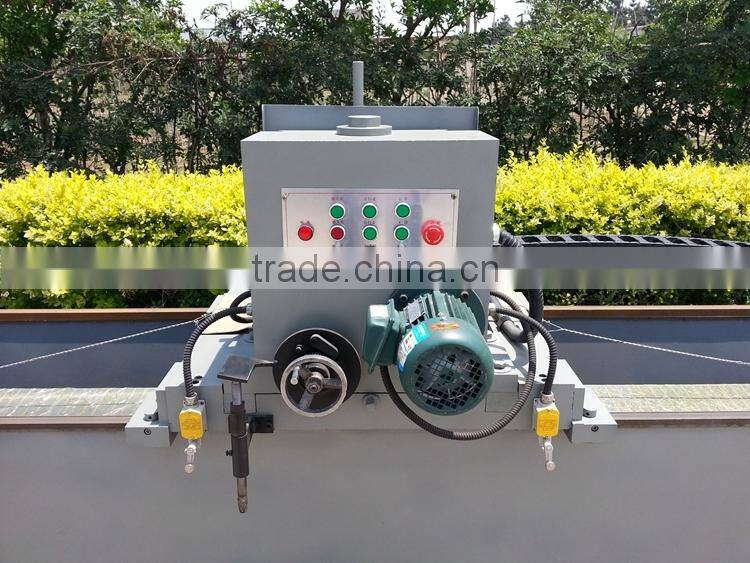

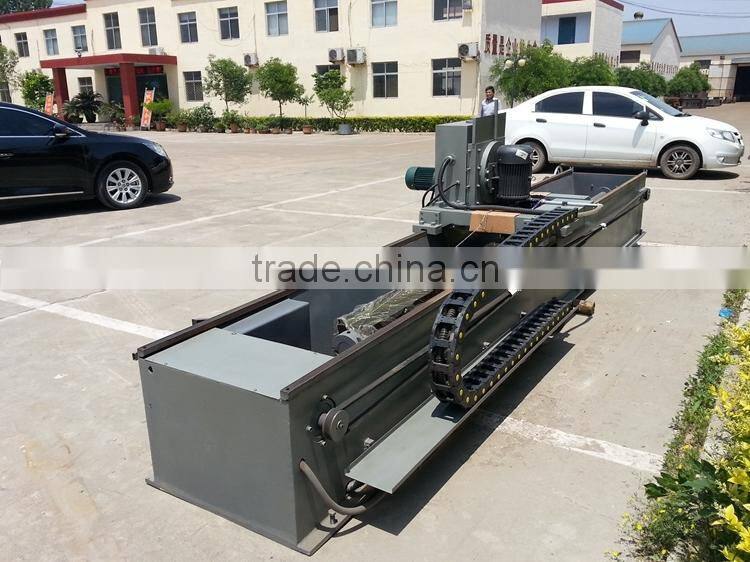

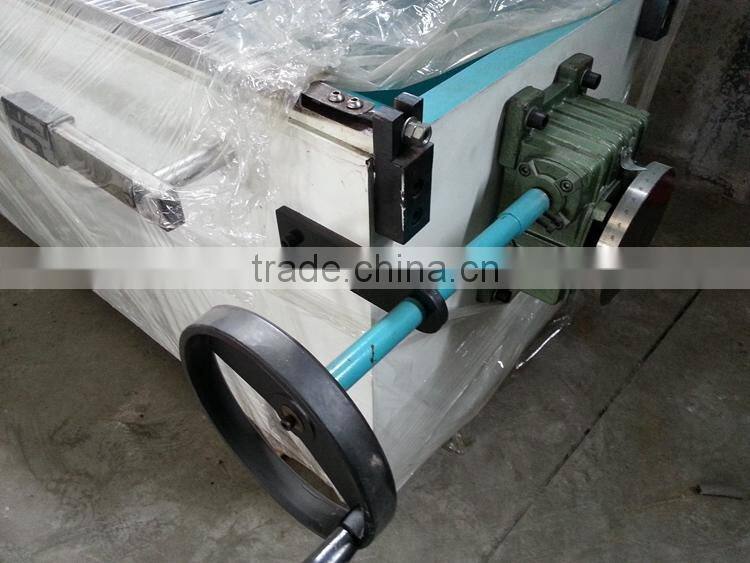

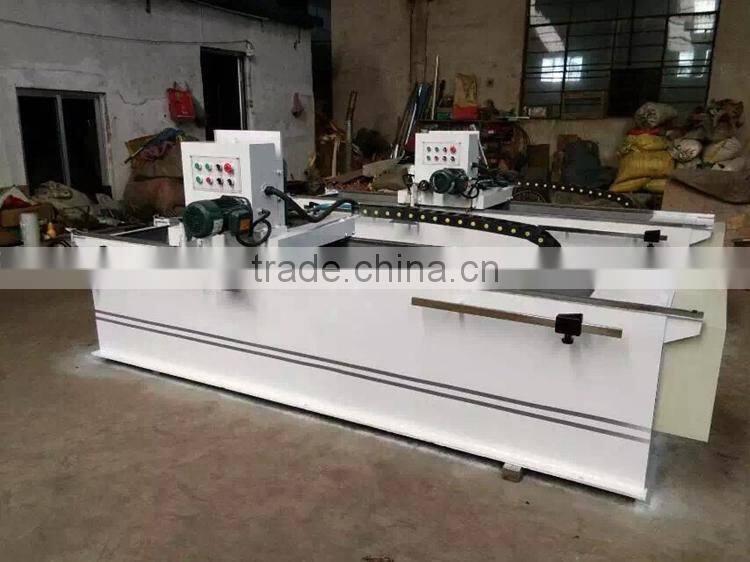

Blade Sharpening machine , knife grinder , knife grinding machine
Blade Sharpening machine , knife grinder , knife grinding machine
Main functions and features:
This Automatic Knife Grinder Machine is slot type automatic grinding lathe. It is the corollary equipment for various type of slicer, it is widely used in the wood processing industry, mainly for grinding various types of the straight blade cutting tools at different angles, different types of cutting tools such as furniture making, printing and textile industry etc.
Product technical specifications of Blade Sharpening machine , knife grinder , knife grinding machine
Model | YM1500 | YM3000 | YM3500 |
Max. grinding length | 1500mm | 3000mm | 3500mm |
Working-table width | 180mm | 180mm | 200mm |
Grinding head motor | 4kw, 380V-50Hz | 4kw, 380V-50Hz | 4kw, 380V-50Hz |
Walking motor | 0.75kw, 380V-50Hz | 0.75kw, 380V-50Hz | 0.75kw , 380V-50Hz |
Lifting motor | 0.55kw, 380V-50Hz | 0.55kw, 380V-50Hz | 0.55kw, 380V-50Hz |
Wheel rotation rate | 1400r/minute | 1400r/minute | 1400r/minute |
Linear speed for grinding wheel | 17m/minute | 17m/minute | 17m/minute |
Speed of sliding plate | Variable speed | Variable speed | Variable speed |
Tilting range for working-table | ±90° | ±90° | ±90° |
Grinding wheel form | Cup | Cup | Cup |
Grinding wheel dimension | Φ200*110*32mm | Φ200*110*32mm | Φ200*110*32mm |
Overall dimension | 3500*1200*1200mm | 5300*1300*1400mm | 5800*1300*1400mm |
Weight | 1600kg | 2900kg | 3200kg |
Remark: When the machine is improved, the appearance and the indexes should be standardized according to the physical goods.
Packaging Detail:
Usually Blade Sharpening machine , knife grinder , knife grinding machine packed by standard export box or as
your requirement, in nude with shrink film. Wooden case with waterproof plastic.
Blade Sharpening machine , knife grinder , knife grinding machine
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round trip air tickets, foods,
accommodation and service fee. The services include fixing, debugging, operating,maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer should pay for the
round-trip air tickets. The seller arrange for food and accommodation. The services include fixing, debugging,
operating, maintaining.

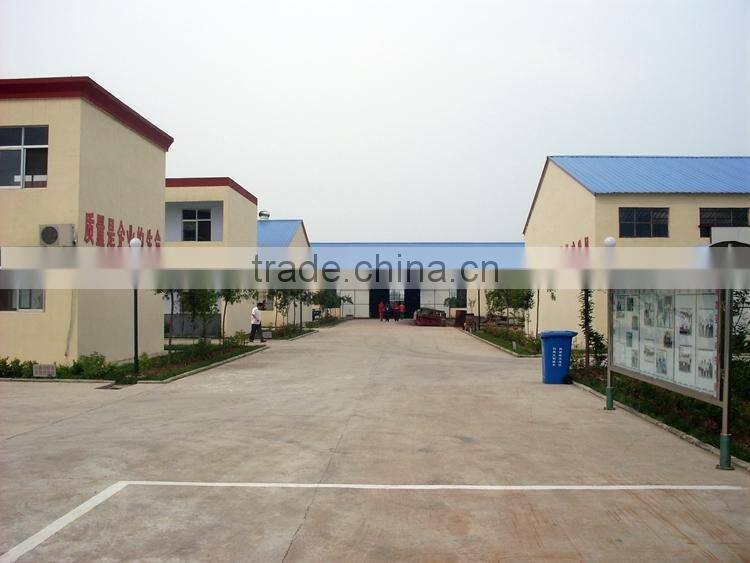

Feixian Ruihao Machinery is a key enterprise as a professional wood veneer production line machines
manufacturer for 28 years. Our main product is including: wood debarking machine, wood rotary peeling and
cutting machine, veneer dryer, veneer core builder, sliding table saw, knife grinder and spare parts for woodworking
machinery etc.
We supply woodworking machinery with high quality and competitive price. Warmly welcome customers home and aboard to cooperate with us in business!
Remark:
1. Payment Terms: By T/T. 30% down payment, the balance to be paid before shipment.
2. Delivery Time: Within 15 days after advance.
3. Guarantee: Machines running in under normal correct controlling situation, all machines have 12 months warranty.
4. When the product is improved, the appearance and the indexes should be standardized according to the physical
goods.
5. One grinding wheel can grinder about 100 sequence of the knife. For soft wood you can grinder the knife every 3
months. And for the hard wood you must grinder the knife every one week. So you need 12pcs grinding wheel per year.
