YM1500-3500 Series woodworking Knife grinder machine for plywood and paper industry
Main features of YM1500-3500 Series woodworking Knife grinder machine for plywood and paper industry
The working table is of electromagnetic chunk with strong magnetic power and lower power consumption.
The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
Option parts: Design and assemble according to customers is available. (Servomotor, Professional grinding head, Inverter, Magnetic separator).
Max.8000mm in length for magnetic chunk, Max.300mm in width and 30kw spindle motor power is the maximum for us.
The technicial specifications of YM1500-3500 Series woodworking Knife grinder machine for plywood and paper industry
Model | YM1500 | YM3000 | YM3500 |
Max. grinding length | 1500mm | 3000mm | 3500mm |
Working-table width | 180mm | 180mm | 200mm |
Grinding head motor | 4kw, 380V-50Hz | 4kw, 380V-50Hz | 4kw, 380V-50Hz |
Walking motor | 0.75kw, 380V-50Hz | 0.75kw, 380V-50Hz | 0.75kw , 380V-50Hz |
Lifting motor | 0.55kw, 380V-50Hz | 0.55kw, 380V-50Hz | 0.55kw, 380V-50Hz |
Wheel rotation rate | 1400r/minute | 1400r/minute | 1400r/minute |
Linear speed for grinding wheel | 17m/minute | 17m/minute | 17m/minute |
Speed of sliding plate | Variable speed | Variable speed | Variable speed |
Tilting range for working-table | ±90° | ±90° | ±90° |
Grinding wheel form | Cup | Cup | Cup |
Grinding wheel dimension | Φ200*110*32mm | Φ200*110*32mm | Φ200*110*32mm |
Overall dimension | 3500*1200*1200mm | 5300*1300*1400mm | 5800*1300*1400mm |
Weight | 1600kg | 2900kg | 3200kg |
Remark: When the machine is improved, the appearance and the indexes should be standardized according to the physical goods.

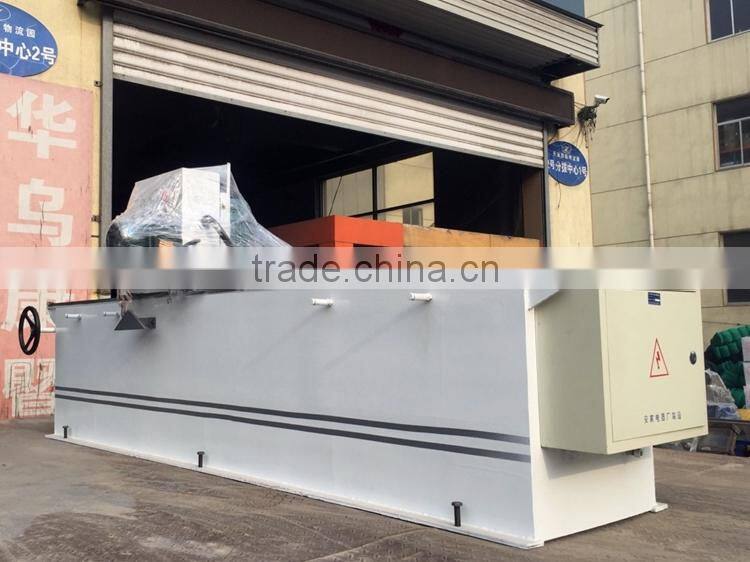

The photos of YM1500-3500 Series woodworking Knife grinder machine for plywood and paper industry
YM1500-3500 Series woodworking Knife grinder machine for plywood and paper industry usually packed by standard export box or as your requirement or in nude with shrink film, one set machine could load into one 20ft container.
YM1500-3500 Series woodworking Knife grinder machine for plywood and paper industry
After sales service:
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round-trip air tickets, foods,
accommodation and service fee. The services include fixing, debugging, operating, maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer should pay for the
round-trip air tickets. The seller arrange for food and accommodation. The services include fixing, debugging,
operating, maintaining.
Feixian Ruihao Machinery is a key enterprise as a professional wood veneer production line manufacturer for 28 years. Our main product is including: wood debarking machine, wood rotary peeling and cutting machine, veneer
drying machine, veneer core building machine, knife grinding machine and accessories for woodworking machinery.
We are famous for competitive price, best service, high quality and timely delivery. Warmly welcome customers home and aboard to cooperate with us in business!
YM1500-3500 Series woodworking Knife grinder machine for plywood and paper industry
Remark:
1. Payment Terms: By T/T. 30% down payment, the balance to be paid before shipment.
2. Delivery Time: Within 15 days after advance.
3. Guarantee: Machines running in under normal correct controlling situation, all machines have 12 months warranty.
4. When the product is improved, the appearance and the indexes should be standardized according to the physical
goods.
5. One grinding wheel can grinder about 100 sequence of the knife. For soft wood you can grinder the knife every 3
months. And for the hard wood you must grinder the knife every one week. So you need 12pcs grinding wheel per year.
If you have any other questions, please send us your inquiry, we will contact with you as soon as possible!!!
Mr. Gary Gu
Machinery Department
Linyi City Haojing Trading Co., Ltd
Taoran Road, Lanshan District, Linyi City, Shandong, China
Mobile: +86-13665395656 (Wechat & Whatsapp)
http://www.chinahaojing.cn/
http://lyhaojing.en.china.cn/
