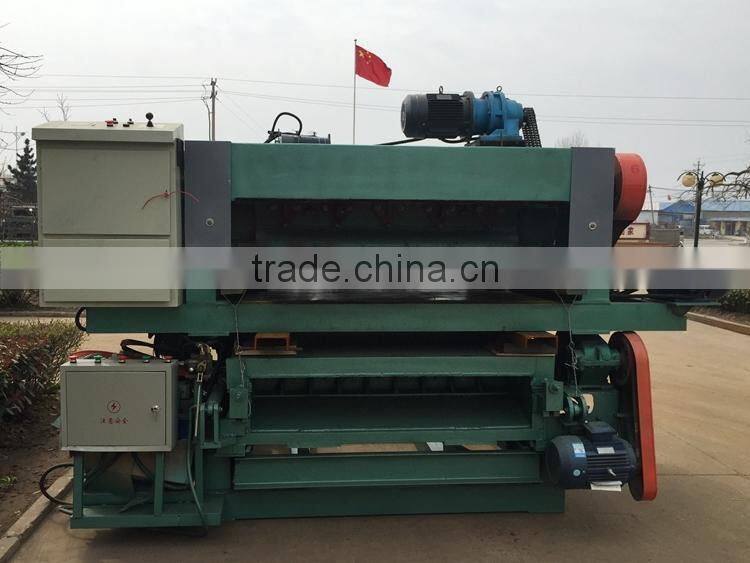

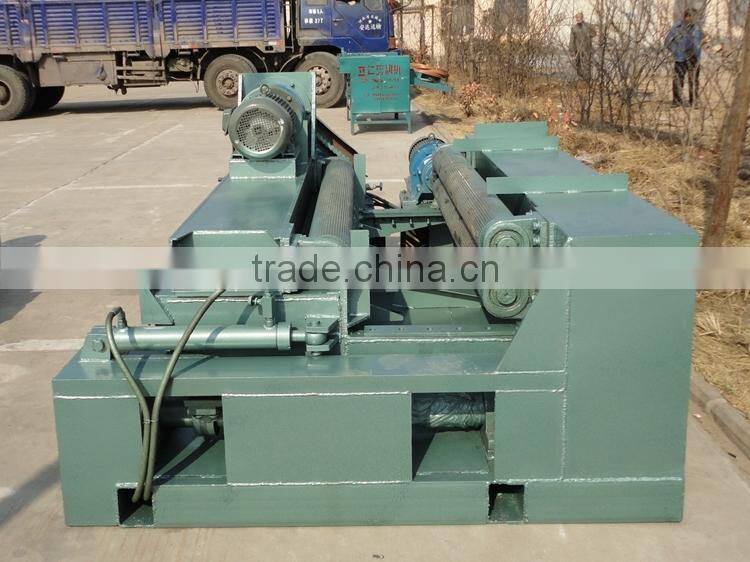

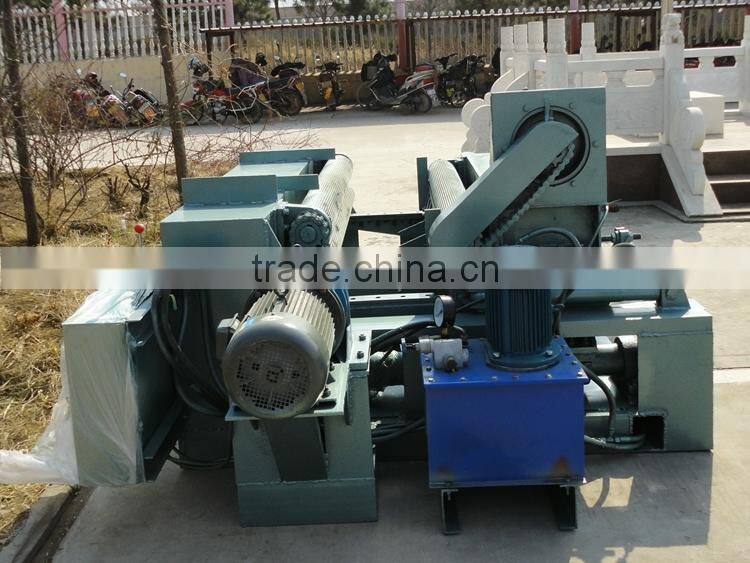

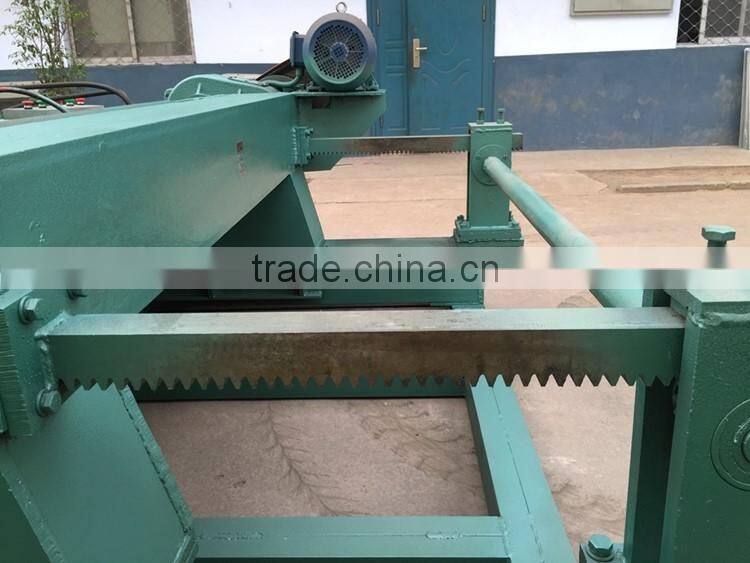

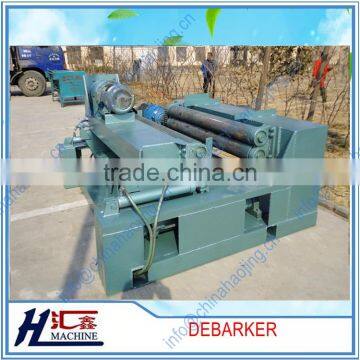

Multifunctional log rounding machine debarker machine
Main features of Multifunctional log rounding machine debarker machine
1. This type log debarking and rounding machine has the ability to rotary cutting off the majority part of bark of tree
branch material and making them straightly.
2. The device has two fixed roller and the knife block can move with the power of two hydraulic hands.
3. This equipment processes the advantage of compact structure, stable performance, simple operation and high
production efficiency.
The advantages of Multifunctional log rounding machine debarker machine
1. Basic plywood production line machine, it is used to debark and round the logs before peeling, after rounding, the
logs will become straight and smooth, and easy to peel by veneer peeling machine.

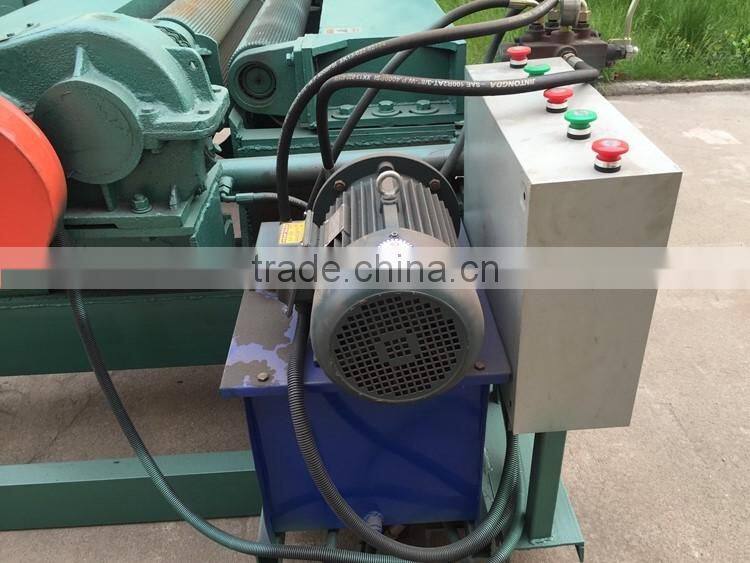

2. Hydraulic working system, easy to operate, not easily broken down, easy to repair.
3. Three rollers, the diameter is 130 mm, rotary speed is 56m/minute, and can round a log in only 5 seconds.
4. Designed for hardwood, such as eucalyptus, rubber wood, mango wood, etc. The log Max. diameter is 500mm.
5. This machine is now very popular in South China, and in Vietnam, Thailand, India, Indonesia etc.
Product technical specifications:
Model | ZYJ130 | ZYJ260 |
Log dimension processing (D*L) | 500*1400mm | 500*2600mm |
Driving roller diameter | 130mm | 130mm |
Average debarking speed | 5s/pc | 5s/pc |
Rotary linear speed | 56m/minute | 56m/minute |
Total motor | 15kw, 380V-50Hz 3phase | 19kw, 380V-50Hz 3phase |
Driving roller motor | 2pcs*5.5kw | 2pcs*7.5kw |
Hydraulic motor | 1pc*4kw | 1pc*4kw |
Product dimension(L*W*H) | 2800*2000*1200mm | 4600*2100*1200mm |
Weight | 2.5ton | 4.5ton |
Remark: When the machine is improved, the appearance and the indexes should be standardized according to the
physical goods.

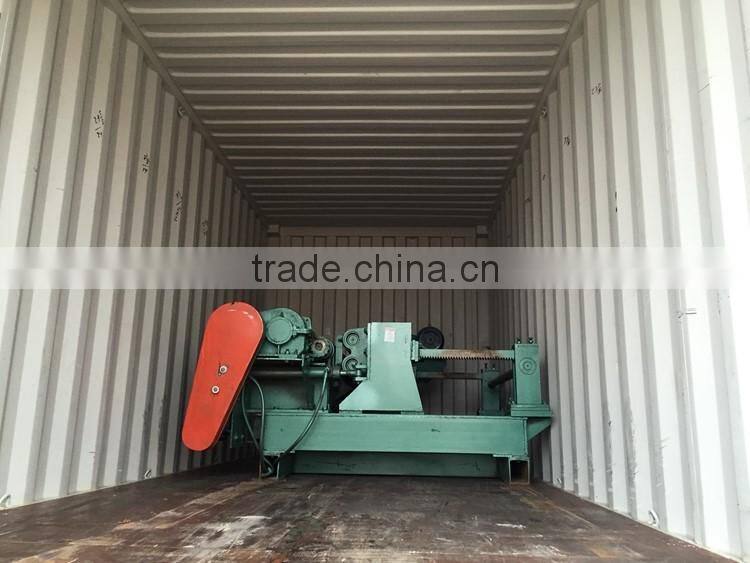

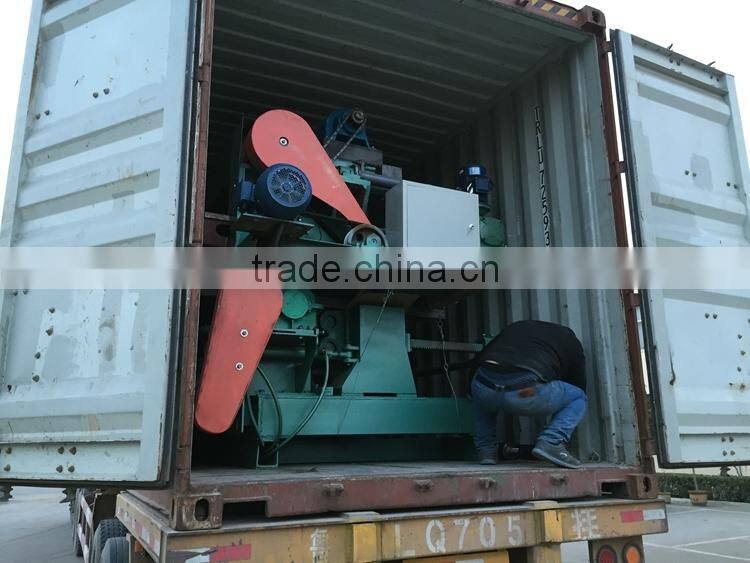

Multifunctional log rounding machine debarker machine package is nude,4 sets could loaded into one 20' container.
Multifunctional log rounding machine debarker machine
After sales service:
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round-trip airtickets, foods,
accommodation and service fee. The services include fixing, debugging, operating, maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer should pay for the
round trip air tickets. The seller arrange for food and accommodation. The servicesinclude fixing, debugging,
operating, maintaining.

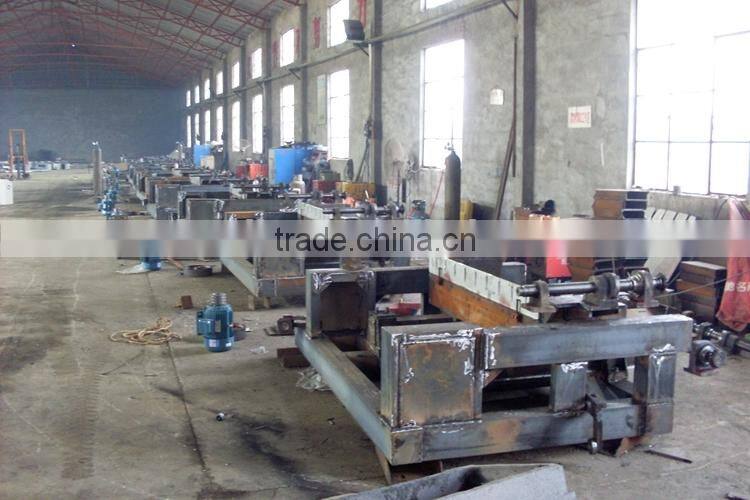

Ruihao Machinery is a key enterprise as a professional veneer production line machines manufactory for 25
years. Our veneer production line including: log loading machine, log barking machine, wood rotary peeling and cutting machine, veneer dryer machine, veneer core builder, sliding table saw and knife grinder etc. accessorial machines for veneer production line.
We supply woodworking machinery with high quality and competitive price. Warmly welcome customers home and aboard to cooperate with us in business.
Hydraulic log barking and rounding machine for plywood factory
1. Payment Terms: By T/T. 30% down payment, the balance to be paid before shipment.
2. Delivery Time: Within 7 working days after advance payment.
3. Guarantee: Running in under normal correct controlling situation, all have 12 months warranty.
If you have any other questions, please send us your inquiry, we will contact with you as soon as possible!!!
Mr. Gary Gu
Machinery Department
Linyi City Haojing Trading Co., Ltd
Taoran Road, Lanshan District, Linyi City, Shandong, China
Mobile: +86-13665395656 (Wechat & Whatsapp)
http://www.chinahaojing.cn/
http://lyhaojing.en.china.cn/
