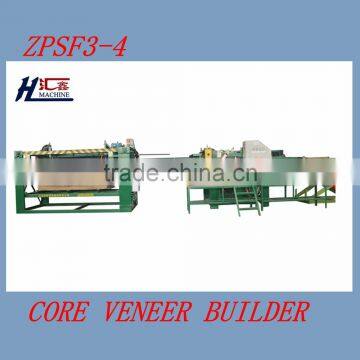

China quality plywood veneer core composer / high efficiency veneer splicer
- 15 Unit / Units per Month
- Qingdao port
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, Core Veneer Splicing machine | Place of Origin: | Shandong, China |
Brand Name: | RUIHAO | Model Number: | ZPSF3-3 | Voltage: | 380V 50Hz |
Power(W): | 34.65kw | Dimension(L*W*H): | 13000*2300*2200mm | Weight: | 5000KG, 5000kgs |
Certification: | CE ISO9001 | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China quality plywood veneer core composer / high efficiency veneer splicer
China quality plywood veneer core composer / high efficiency veneer splicer
Main functions and features:
A. Simple Operating & Economical Running Cost
The full automatic Veneer Core Builder is specialized in cutting and jointing the mono plate veneer
from 1.2mm to 4.0mm and simple operating by one worker, which from in feed conveyor, electronic
veneer thickness detector, cutting and jointing by hot melt glue to desired 4'*8' or 3'*6' and loading
to automatic stacker. That all processes are operating by one perfect Veneer Core Builder.
B. Accurate Thickness Control
Uniform thickness is indispensable for high quality core veneers, Thickness detection on
Chrome-Coated roll assures very accurate thickness control all the time using NC electronic
thickness detector to reduce odd core veneer to minimum wasting 1mm to 5mm from edges
or flaw and the mono plate over 80mm is available for use.
C. Hot Melt Edge - Gluing Applicator
Hot melt edge-gluing and glue-coated string applications enable to diminish production cost.
D. Automatic Stacker System
Automatic stacker by the upper belts and bottom rolls for conveying on fixed position so that it
can keep the plates neat by fare and after sides, fast and quiet to operate.
E. Servo Drive System
There are two cooling rolls pressing to make fast cooling for the Glue-coated string after it was
spread with hot melting glue and prevent the plates from adhered at the string commenting spats,
and servo drive system is used to make it start simultaneously on both end that can assure the
single plates are put together precisely (can reduce superimposing) and their seams cam be
adjustable for 0 - 1.5mm by the plate thickness.
China quality plywood veneer core composer / high efficiency veneer splicer
Product technical specifications:
Model | ZPSF3-3 |
Working veneer width | 968-1270 mm (3-4ft) |
Cutting veneer length | 1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft) |
Working veneer thickness | 1.2-8 mm |
Length of knife | 1400 mm |
Feeding speed | 0-40m/min |
Thickness detecting | 20 points |
Over thickness detecting | 3 points |
Cutting power | 4.5kw*1pc |
Transfer power | 3kw*2pcs |
After the knife power | 3kw*1pc |
Raise power | 3kw*1pc |
Transfer power | 1.5kw*3pcs |
Push the veneer power | 1.5kw*1pc |
Heater power | 5.5kw |
Glue Applicator power | 0.2kw |
Cool Fan power | 0.75kw*3pcs |
Refrigeration system | 1.5Hp |
Air compressor power | 4.0kw (9kg/cm) |
Area occupied (W*L) | 2300*13000mm |
Main machine | 3800*2300*2200mm |
Push veneer system | 4000*1900*2300mm |
Output | 300-350pcs/hour (4*8ft) |
Weight | 5000kgs |
Shipping measurement | 35cbm |
Remark: When the core veneer building machine is improved, the appearance and the indexes
should be standardized according to the physical goods.
China quality plywood veneer core composer / high efficiency veneer splicer
Veneer Splicing Process
I. Core Veneer Joint
1. After tenderized using PLC controller to cut the edge, joint the core and piece cutting.
2. After the core has been tenderized. The strong blower device can remove the dust one the core
veneer.
3. The PLC controller enables cutting more precise, it can available reduce the odd core. It helps
control, monitor and maintenance more convenient.
4. The back-feeding wheel device is synchronizing with feeding speed, to avoid overlap or gap of
the jointing core.
5. It is equipped with hot melt glue yarn for help jointing. Cooling water tank of glue yarn is circle
well by the cooler. It gets the best joint.
II. Stacker
Composed veneer after cutting, clearing dust, received by stacker.
1. In front of stacker, there is a strong blower to clear dust and clip for after stacking the core can
be send to glue spread process directly.
2. The mid pressing bar and the side stacking wheel rack can be moved free for easy adjustment
in the dimension easy to collection.
China quality plywood veneer core composer / high efficiency veneer splicer in nude packing.
China quality plywood veneer core composer / high efficiency veneer splicer
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round-trip air
tickets, foods, accommodation and service fee. The services include fixing, debugging, operating,
maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer
should pay for the round-trip air tickets. The seller arrange for food and accommodation.
The services include fixing, debugging, operating, maintaining.
Feixian Ruihao Machinery is a key enterprise as a professional wood veneer production line
manufacturer for 26 years. Our main product is including: wood debarking machine, wood rotary
peeling and cutting machine, veneer drying machine, veneer core building machine, knife grinding
machine and accessories for woodworking machinery.
We are famous for competitive price, best service, high quality and timely delivery.
Warmly welcome customers home and aboard to cooperate with us in business!
plywood core veneer composer jointing machine for plywood industry
1. Payment Terms: By T/T. 30% down payment, the balance to be paid before shipment.
2. Delivery Time: Within 30 days after advance payment.
3. Validity: Within 60 days after the date.
4. Guarantee: Running in under normal correct controlling situation, all have 12 months warranty.
5. We provide the all kinds of material for core veneer splicing machine: hot melt, glue yarn, etc.
We supply whole wood veneer production line machinery, for more information,
please feel free to contact with me! You will receive quick response !
My name is Gary Gu, please contact me at any time. My call +86 13665395656
