Specifications
Composite 3D Geonet1.Fast and efficient installation
2.Used in landfill drainage and tunnel
Three-dimensional Composite Geonet
Product Description
Product Description |

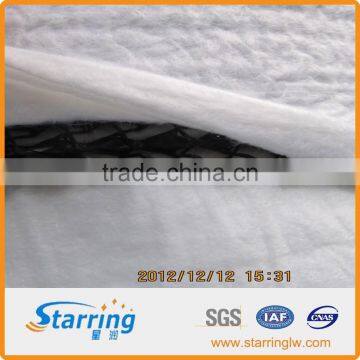

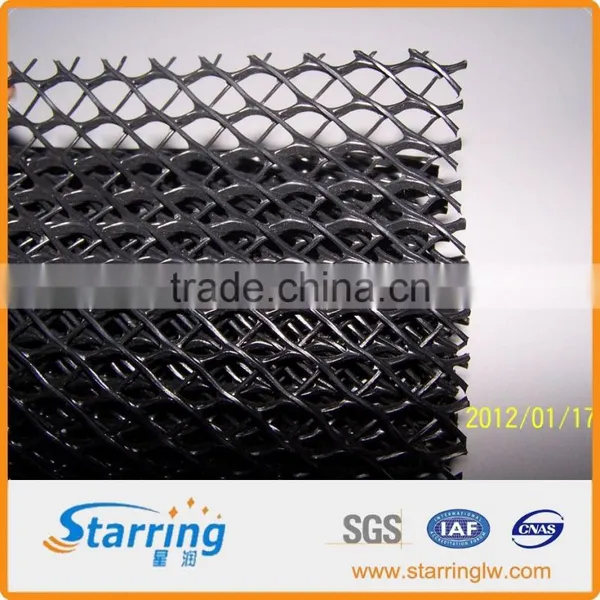

Tri-dimension composite geonet is a chemically resistant composite comprised of a three-dimensional extruded polyethylene geonet core, thermally laminated to non-woven geotextiles on either one or both surfaces.
|
Product Features |
Features · HDPE · Central flow path · Thin · Composite construction
· Durable · Crush resistant · High flow rate · Low transport costs Single operation installation
|
Product Applicationrange |
In landfill cover systems geocomposites are used to drain surface water away from the barrier layer decreasing percolation of water into the waste. geocomposites may also be used as a gas venting layer below the barrier layer to prevent the build-up of gases generated by degrading waste or underlying soils.
In landfill bottom liner systems geocomposites are used above the primary liner for leachate drainage and as a leak detection layer between the primary and secondary liners. Similarly, in liquid impoundments gecomposiye Drain may be used underneath the primary liner as the leak detection layer.
|
Product Technical Parameters
Item |
unit |
Value |
||||||||||
Unit weight |
g/m² |
750 |
1000 |
1300 |
1600 |
|||||||
thickness |
mm |
5.0 |
6.0 |
7.0 |
7.6 |
|||||||
Hydraulic conductivity |
m/s |
K×10-4 |
K×10-4 |
K×10-3 |
K×10-3 |
|||||||
Elongation |
% |
<50 |
||||||||||
Net tensile strength |
KN/m |
8 |
10 |
12 |
14 |
|||||||
geotextile unit weight |
PET needle punched geotextile |
g/m² |
200-200 |
200-200 |
200-200 |
200-200 |
||||||
|
Filament non woven geotextile |
|
|
|
|
|
||||||
|
PP high strength geotextile |
|
|
|
|
|
||||||
|
Tri-dimenstional tensile strength
|
PET needle punched geotextile |
KN/m |
18 |
20 |
22 |
25 |
||||||
|
Filament non woven geotextile |
|
30 |
35 |
38 |
40 |
||||||
|
PP high strength geotextile |
|
35 |
38 |
40 |
45 |
||||||
Peel strength between geotextile and geonet |
KN/m |
3 |
||||||||||
