Specifications
Geo meshhomogenous and stable stucture
anti-aging
resisting acid and alkaline
HDPE material

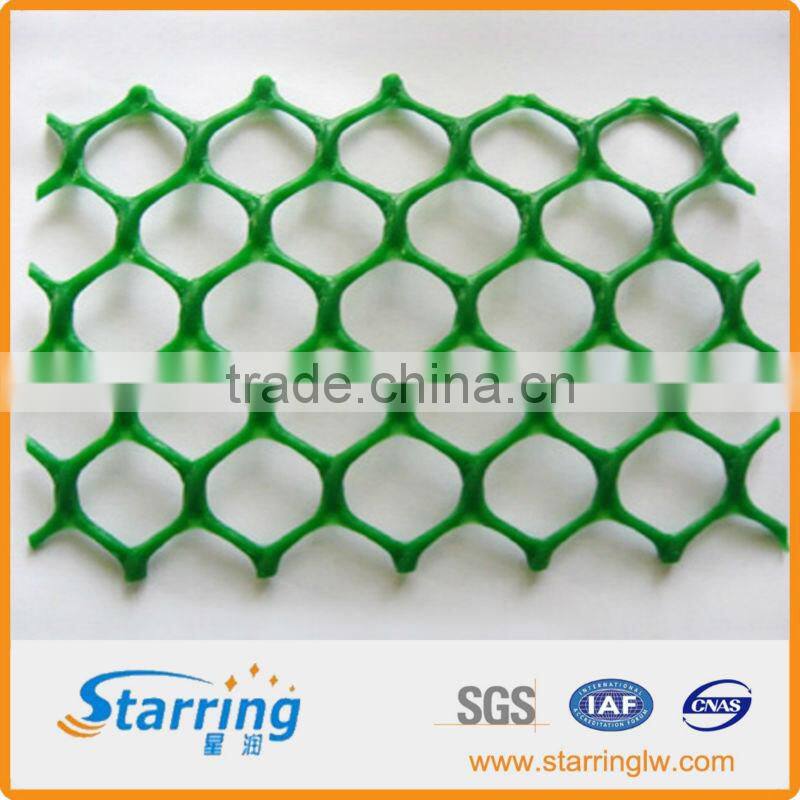

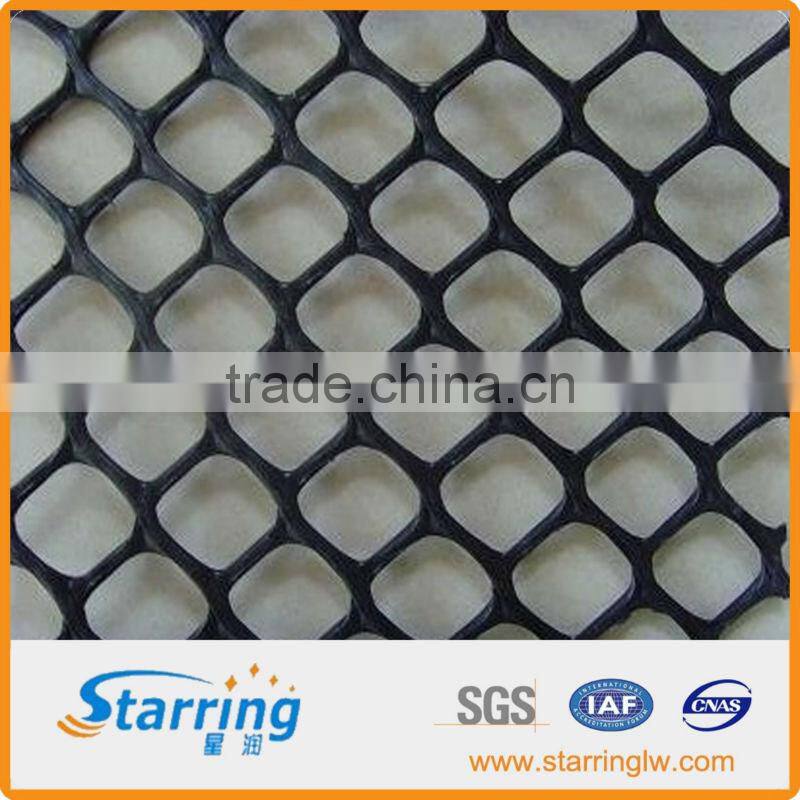

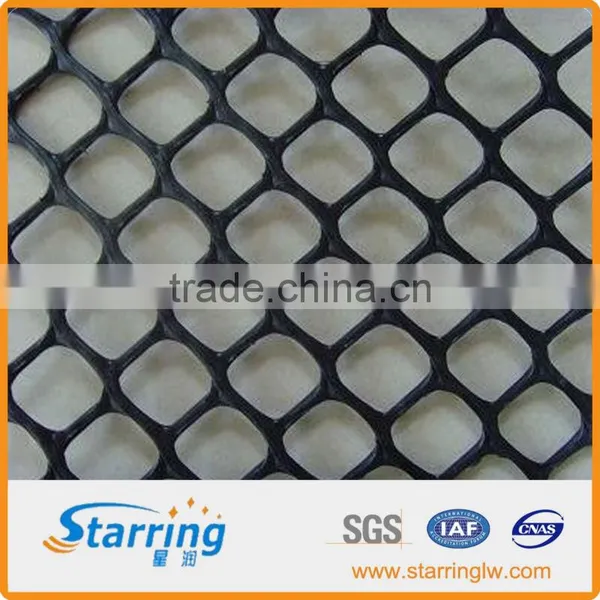

Geo mesh
Geo mesh Introduction:
Geo mesh is suitable for strengthening land,make the net mesh and road material into a whole,can effectively dispaerse loading,prevent land form breaking. HDPE geonet offers special properities,perfect permeability,good flexibility and longtrem durability.Suitable for strengthening land retention walls,strengthen surface from breaking bear much more loading capacity,save the material speed up construction.
Geo mesh Features:
a. Plastic Geonet enable grainy material and grid combined together to format a stable flat surface which prevent filled material from sinking and distribute the vertical loads multiplayer consolidating can be used in bad geographical condition.
b. Be used in filled soil of road foundation and bank slope, making them further stable and minimizing land use.
c. Being used in enhancing surface of roads through combining grids and surface material can distribute and transfer the loads effectively and prevent roads from crack occurring.
d. Allow baring greatly clashing loads.
e. Allow bear greater alternating loads.
f. Shorten the period of the construction.
g. Allow construct insusceptbly under the bad condition.
h. Prevent road surface from crack commonly caused by surface turning over.
i. Save the quantity of the constructional material.
Geo mesh Applications
a. Protect the surface of bank and rock from being encroached, collapse, rock movement and losses of water and soil.
b. HDPE geonet are also used in embankment projects of river and sea with great flexibility, well penetration, protection erode and absorb energy wave caused.
c. HDPE geonet in rectangular, quadrate and tubular stone form which can be directly set underwater without diving cost much money.tou
Geo mesh Index:
Item |
Unit |
CE111 |
CE121 |
CE131 |
CE131B |
CE151 |
Width |
[m] |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
Aperture size |
[mm] |
(8×6)±2 |
(8×6)±2 |
(27×27)±3 |
(22×22)±3 |
(74×74)±5 |
Thickness |
[mm] |
2.9 |
3.3 |
5.2 |
4.8 |
5.9 |
Mass |
[g/m2] |
445±30 |
730±35 |
660±35 |
660±35 |
550±30 |
Tensile strength |
[kN/m] |
2 |
7.68 |
5.8 |
6.4 |
1.82 |
Elongation at max strain |
[%] |
41 |
20.2 |
16.5 |
18.6 |
23.2 |
Tensile strength at 10% elongation |
[kN/m] |
1.32 |
6.8 |
5.2 |
5.74 |
3.83 |
Note |
Application for special specification stipulated in contract will be avaible |
|||||
