Specifications
PVC ROOFING MEMBRANES1.Excellent weathering characteristics
2.High tensile strength
3.Choice for any shape

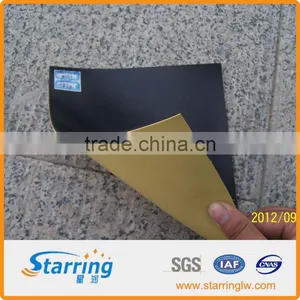

PVC ROOFING MEMBRANES
Product Information
PVC roofing membrane is a highly-engineered,new-type membrane manufactured
using polyvinyl chloride as main materials and added other chemicals such as anti-oxidant,anti-UV materials to make it flexible,stable and UV-resistant.
Product Features
1. Good combination of high elasticity and tensile strength.
2. Fine resistance to static electricity.
3. Excellent resistance to ageing / weathering.
Application Range
Reinforced PVC waterproof membrane forms an effective barrier to liquid water or water vapor in the roof construction for industrial and civil engineering, underground engineering such as subway & tunnel, water conservancy such as water pools & ditch, shelter, grain depot, land filling, dyke, sewage treatment and basement.
Product Technical Parameters
GB12952-2010
No. |
Test Item |
Indicators |
||
Code GL | ||||
1 |
The thickness of resin layer above the reinforcement fabric mm≥ |
0.40 |
||
2 |
Stretching Performance |
Maximum Tension N/cm ≥ |
120 |
|
Breaking Elongation%≥ |
100 |
|||
3 |
Heating Treatment Size Change Rate%≤ |
0.1 |
||
4 |
Low-temperature Bending |
-25°C No Craze |
||
5 |
Water Impermeability |
0.3Mpa,2h Water Impermeability |
||
6 |
Impact Resistance |
0.5kg·m , Water Impermeability |
||
7 |
Anti-static Load a |
20kg Water Impermeability |
||
8 |
Seam Peel Strength N/mm ≥ |
3.0 |
||
9 |
Trapezoid Tear Strength N≥ |
220 |
||
10 |
water absorption(70°C168h)% |
After Soaking ≤ |
4.0 |
|
After Airing≥ |
-0.40 |
|||
11 |
Heat aging(80°C) |
Time |
672h |
|
Appearance |
No blisters, cracks, delamination, bonding and holes |
|||
Tensile Strength (max. tensile)Retention%≥ |
85 |
|||
Elongation Retention %≥ |
80 |
|||
Cold Bending |
-20°C No Craze |
|||
12 |
Chemical Resistance |
Appearance |
No blisters, cracks, delamination, bonding and holes |
|
Tensile Strength (max. tensile)Retention %≥ |
85 |
|||
Elongation Retention %≥ |
80 |
|||
Cold Bending |
-20°C No Craze |
|||
13 |
Artificial climate accelerating ageing c |
Time |
1500hb |
|
Appearance |
No blisters, cracks, delamination, bonding and holes |
|||
Tensile Strength (max. tensile)Retention %≥ |
85 |
|||
Elongation Retention %≥ |
80 |
|||
Cold Bending |
-20°C No Craze |
|||
Picture Information
