Good Quality Glass Fiber Reinforced PVC Membrane

Name: Good Quality Glass Fiber Reinforced PVC Membrane
Brand: STARRING
SKU: 142588092
Availability: InStock

Negotiable MOQ: 10 Square Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

STARRING

Model Number:

Laiwu Starring Project Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name STARRING

Model Number P

Specifications

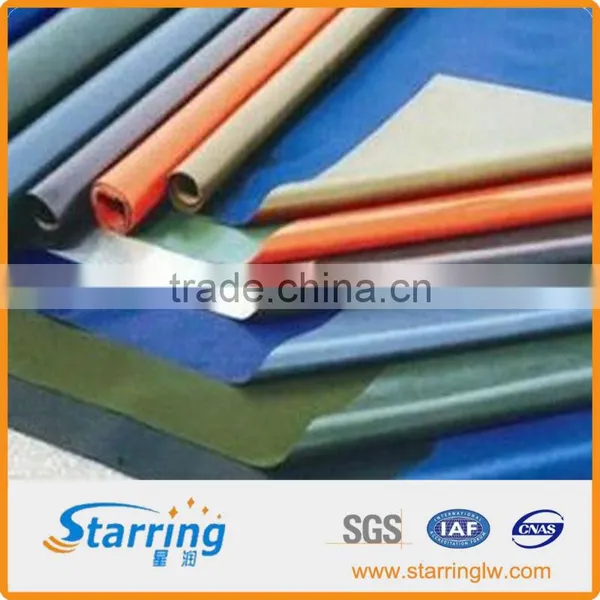

Glass fiber reinforced PVC membrane
1.High strength,good extensibility
2.Excellent seepage-proofing

Glass fiber reinforced PVC membrane

Product Description

The geomembrane is a waterproof membrane made by polyethylene (PE), PVC and other

geomembranes. After the processes of calendering, spreading and rolling you will get the product.

Application Range

Widely used in the seepageroofing engineerings such as landfill,sewage&waste residue processing plant,dam,tunnel,

building,traffic and environmental protection,etc.

Technical Parameters

GB12952-2010

No.	Test Item			Indicators
				P
1	The thickness of resin layer above the reinforcement fabric mm≥			0.40
2	Stretching Performance		Maximum Tension N/cm ≥	250

			Max. Tension Elongation %≥	15

3	Heating Treatment Size Change Rate%≤			0.5
4	Low-temperature Bending			-25°C No Craze
5	Water Impermeability			0.3Mpa,Water Impermeability
6	Impact Resistance			0.5kg·m Water Impermeability
7	Anti-static Load ^a			20kg Water Impermeability
8	Seam Peel Strength N/mm ≥			3.0
9	Trapezoid Tear Strength N≥			250
10	water absorption(70°C168h)%	After Soaking ≤		4.0
		After Airing≥		-0.40
11	Heat aging(80°C)	Time		672h
		Appearance		No blisters, cracks, delamination, bonding and holes
		Tensile Strength (max. tensile)Retention%≥		85
		Elongation Retention %≥		80
		Cold Bending		No Craze
12	Chemical Resistance	Appearance		No blisters, cracks, delamination, bonding and holes
