Drainage channel boardLess mainteness
330x330x30mm
Combined with Geotextile for protection

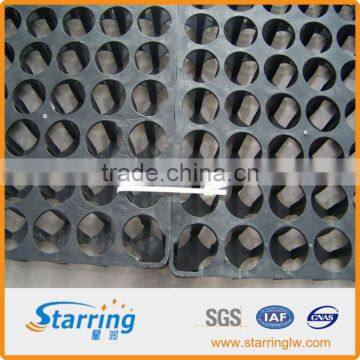

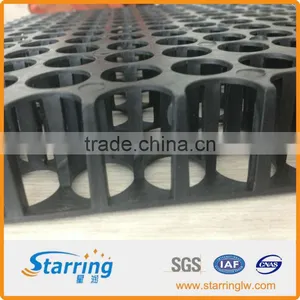

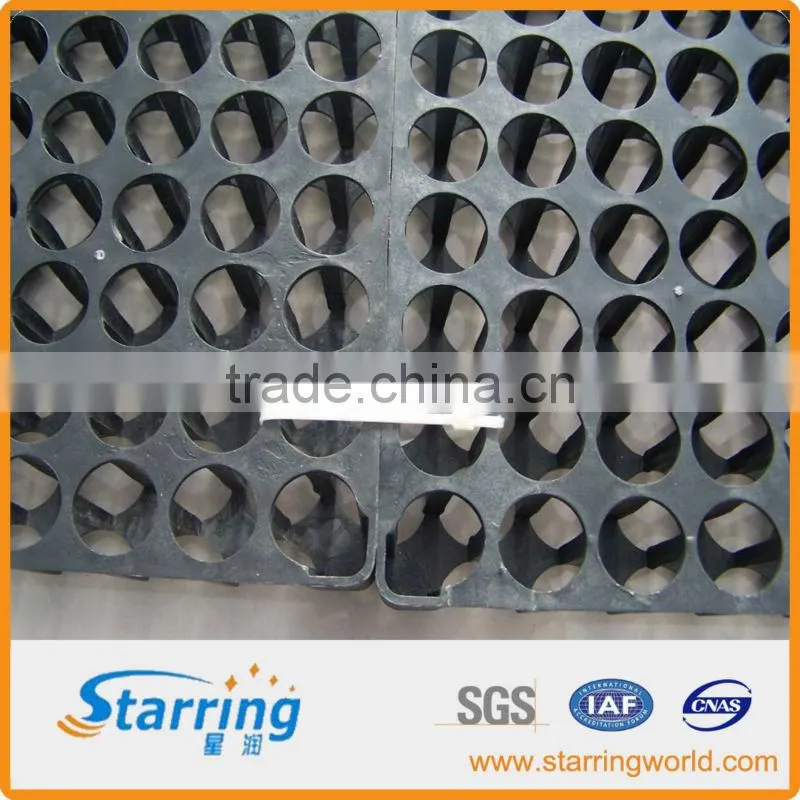

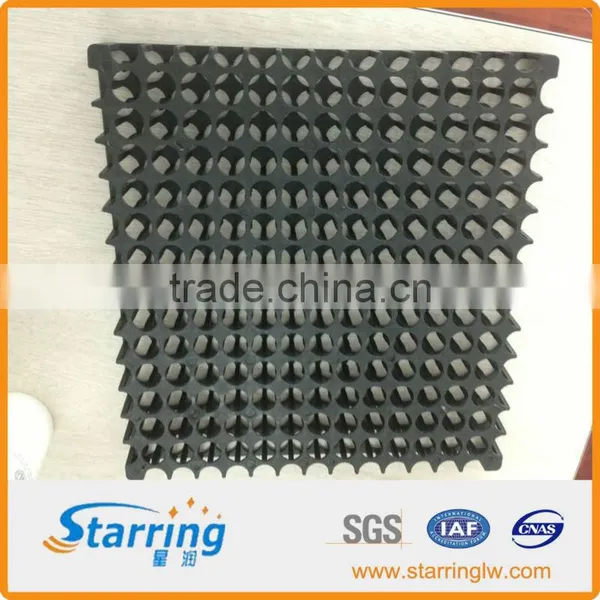

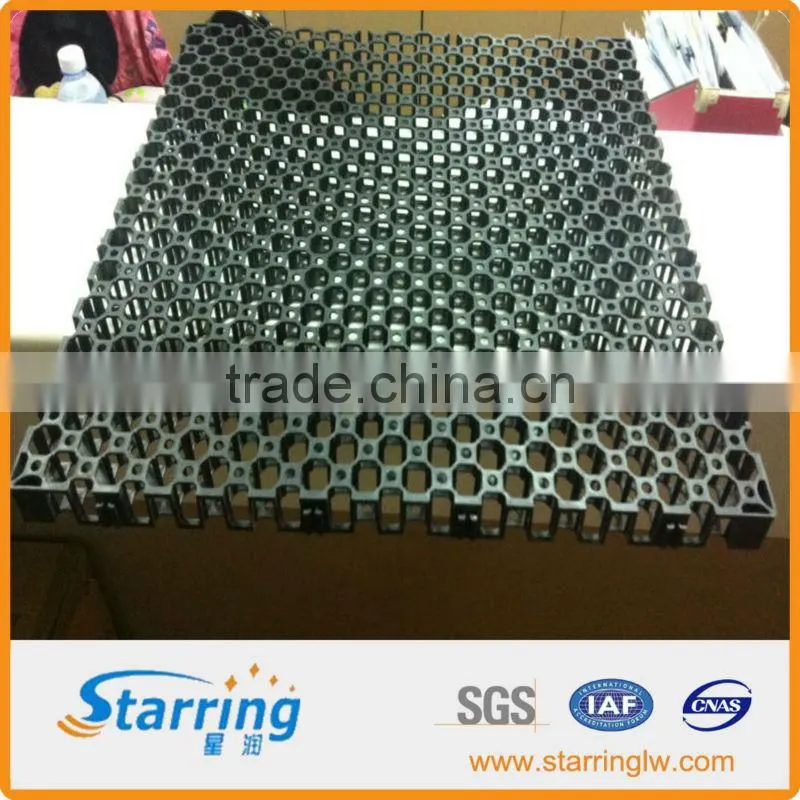

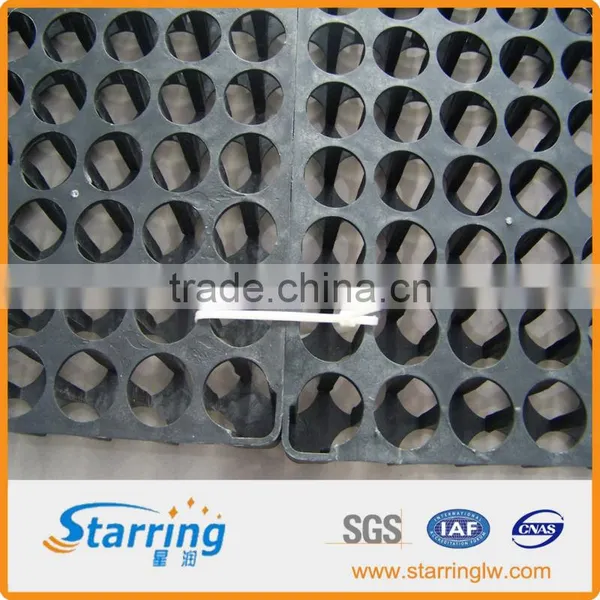

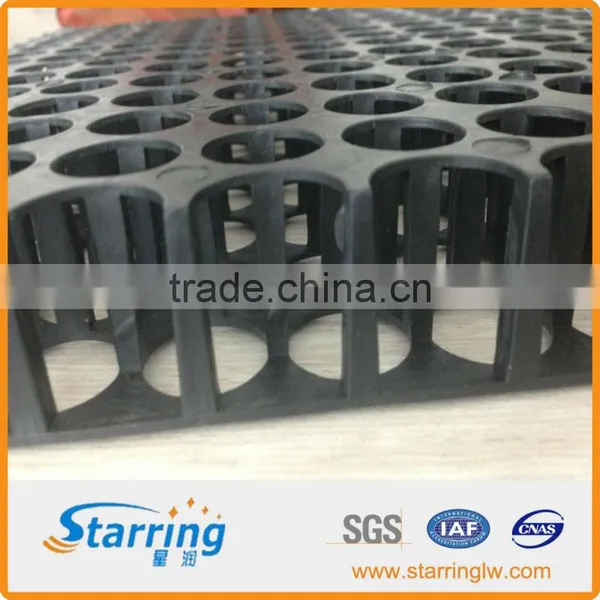

Drainage channel board
Drainage channel board Description:
Landscaping Drainage cell is molded by PP with high strength, the compressive strength is extremely high and does not distort or burst. Covering the board with non-woven fabrics gains higher water permeability and tonnage. Construction is simple and fast with security. Its specification is 40*40cm. A drainage cage can be fixed by four pieces of boards and two braces, used in water drainage under earth, wall drainage and other large area draining water
Drainage channel board Application:

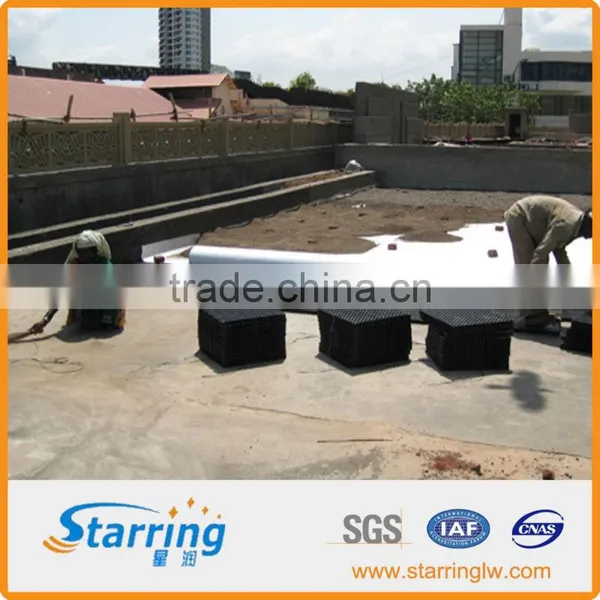

1.Water Drainage: Drainage plate can be used in combination with non-woven to get rid of the rain immediately and effectively relieve the roof’s pressure caused by the instantaneous rainfall.
2. Water Drainage :Absorb and store redundant moisture leaking from the planting layer and supply needed moisture for the plant when the soil lacking of water to improve plant’s drought-resistance ability.
3.Ventilation: Special design helps the plant layer to have good air-ventilation ability at the bottom, improves ventilating situation and ensures the oxygen demand for root.
4.Heat Insulation: The storage place for the drainage plate is at the bottom of the plant, helping the plant to stop from the sun direct illuminating and form a cool space, which can absorb heat from structure layer to form air troposphere.
5.Safety: Plastic storage and drainage plate‘s light weight will not enhance load for roof structure.
6.Environment: it is 100% recycling, won't cause secondary pollution to the environment.
7. Bearing Performance :Bearing strength for storage-drainage plate can reach 80 ton per square as the highest, suitable for all kinds of landscape on the top.
8.Low Price: ultra-light weight, easy installation, quick construction, low construction cost and simple maintenance.
Drainage channel board Further specification:
Products Name: | Landscaping Drainage cell Landscaping Drainage cell |
Item No: | ST-W-H30 |
Size: | 330*330*30mm |
Material: | HDPE(high density polyethylene)and Polypropylene |
Thickness: | 30MM |
Tensile loading: | >1000kpa |
Drain capacity: | 25----30cm³/s |
Storing capacity | 2.6----4.0l/m² |
Surface Void Area : | >67% |
Internal Void Area | >95% |
Biological/Chemical Resistance | Unaffected by moulds and algae and good resistance to oils ,acids ,alkalis and bitumen |
Service Temperature | -20°C to 120°C |
