plastic paver gridGerman technology and raw material
pressure resistance, wear resisting
anti- impact, anti- aging, ant

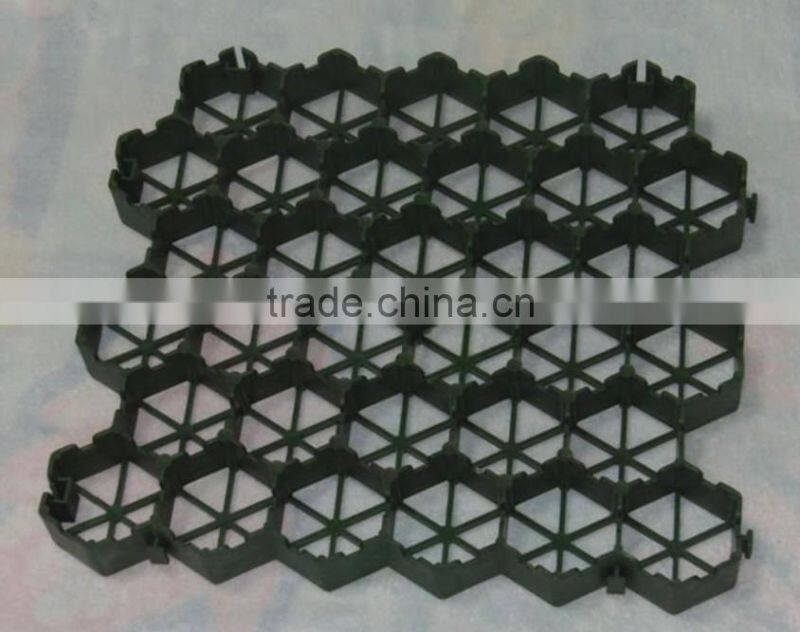

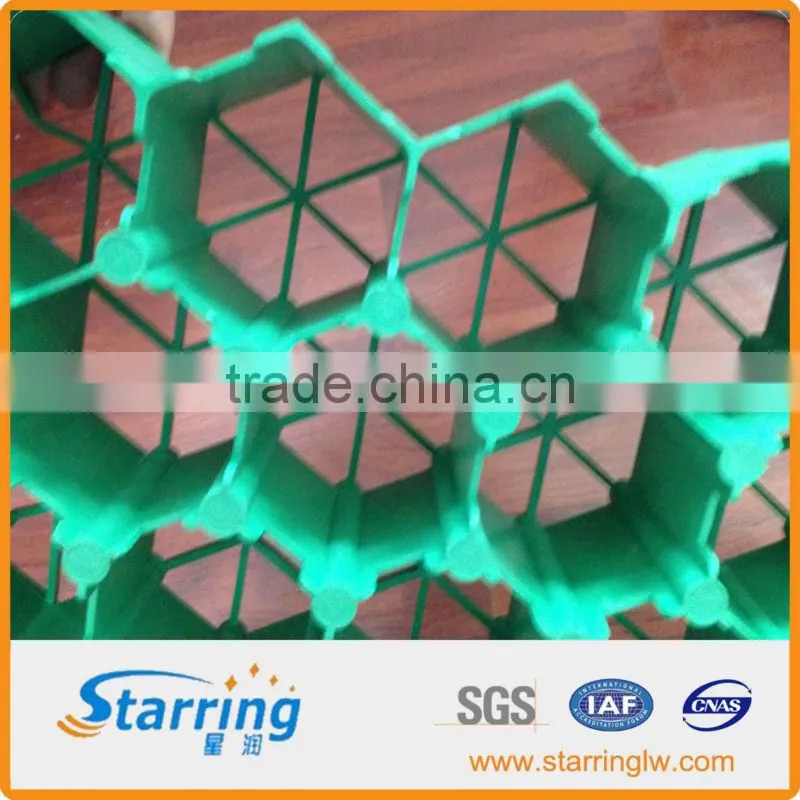

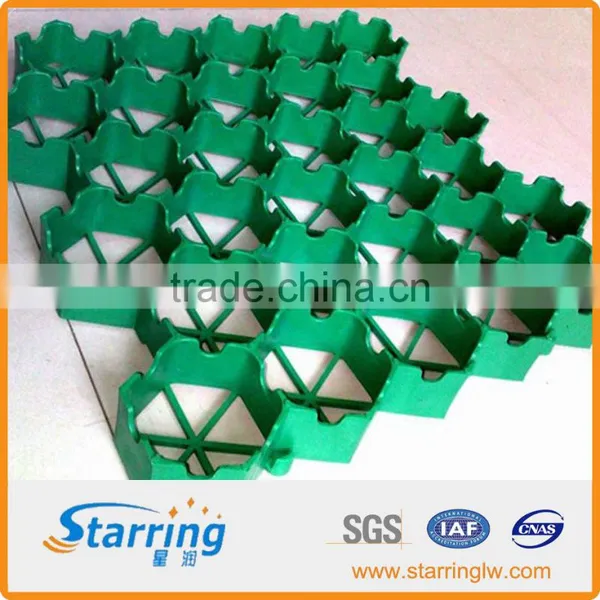

plastic paver grid
plastic paver grid Introduction:
Grass cell is the perfectly realized lawn together with parking place, promoted the quality and saves the investment. Special direct joining, saving time and quickly, can adjust the expansion joint. It uses modified macromolecular weight HDPE as raw material, environmentally sound, recyclable, and it uses the German technology and raw material, pressure resistance, wear resisting, anti- impact, anti- aging, anti-corrosive
The unique patented fastening system makes it extremely efficient and easy to use, with the added advantage of being constructed from 100% recycled high density polyethylene. The product has been used extensively across Europe for many years and is now becoming a brand leader in North America. EcoGrid/EcoRaster is the industry leader in environmentally sustainable geogrid and offers numerous maintenance and cost benefits over other porous pavement solutions. With its patented tab locking system, Turf paver is the best engineered permeable paver and soil stabilization product available today.
plastic paver grid Feature:
1.Light and easy to install
2.Durable and resist compression
3.Integrality and flatness
Grass cell Joining: Conveniently direct joining, adjusts expansion joint, adapt temperature change.

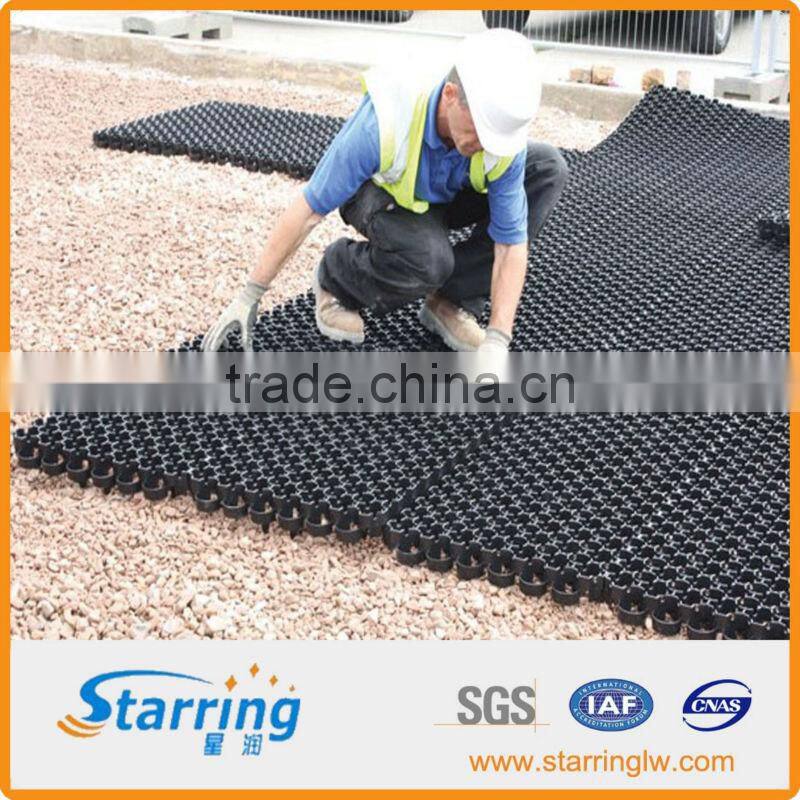

plastic paver grid suggestion :
1. Foundation soils should be tamped; Compactness achieves more than 85%.
2. Paving 300 thick crushed stones as supporting layer (fire traffic lane is 600 thick), roller compaction.
3. Paving 20 thick crushed stones and coarse sand as the level.
4. Paving grasses standard can cut off to the proper shape, between the standard leave several millimeters.
5. Sowing soil in standards, 1 centimeter to upper layer.
6. Sowing turf or seed. When sowing, turf must be compacted. After the grass grows well, it can park the car.
plastic paver grid Index:
Material | PP or HDPE |
Specification | 500mm(L)×250mm(W)×40mm(H)±5mm |
Anti-pressuring cylinder size | 80mm(long)×60mm(width)×40mm(high)±5mm |
Weight | ≥3.75Kg/m2 |
Anti-pressuring cylinder number | ≥128/m2 |
Anti-pressuring cylinder wall thickness | ≥2.0mm |
Anti-pressuring cylinder compressive strength | :≥65ton/m2 |
Anti-pressuring cylinder pore number | ≥4 |
Shape | square or round |
