USA GRIGM13 standard 2mm HDPE LDPE Smooth Geomembrane price
Product Description
xingrun shigh density polyethylene (HDPE) geomembranes provide an
impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance, impermeability, and high yield and welded seam strengths, which is widely used in the landfill solid project, mining and salt industry,etc.
Material | HDPE LLDPE EPDM PVC |
Technics/process | Round Die (Blowing) |
Specification | 0.15mm-4mm |
Width | 2m—8m( or as your request) |
Length | 50m,210m (or as your request) |
Colour | White, black, green, double colored, etc |
Packing | woven cloth |
Load | According to your specification |
Payment terms | T/T ,L/C, western Union,Paypal |
♦Product specification of HDPE Geomembrane
Item | Specification | ||||||
Thickness (mm) | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm |
Density (g/cm2,≥) | 0.939 | ||||||
Tensile Properties | |||||||
Yield Strength (N/mm,LD/TD) | 11 | 15 | 18 | 22 | 29 | 37 | 44 |
Breaking Strength (N/mm,LD/TD) | 20 | 27 | 33 | 40 | 53 | 67 | 80 |
Yeild Elongation Rate (%) | 12 | ||||||
Breaking Elongation Rate (%) | 700 | ||||||
Rectangular Tear Strength (N) | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
Puncture Strength (N) | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
Environmental Stress Crack Resistance (h) | 300 | ||||||
Carbon Black | |||||||
Carbon Black Content(Rang) (%) | 2.0~3.0 | ||||||
Carbon Black Dispersion | Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3 | ||||||
Oxidative Induction Time (OIT) | |||||||
Standard OIT (min) | 100 | ||||||
High Pressure OIT (min) | 400 | ||||||
85℃ Oven Ageing (Minimum Average) | |||||||
90 days after baking, the standard OIT retention(%) | 55 | ||||||
90 days after baking, the hight pressure OIT retention(%) | 80 | ||||||
The Anti-UV Strength | |||||||
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%) | 50 | ||||||
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%) | 50 | ||||||
-70℃ The Low Temperature Embrittlement Performance mpact | Pass | ||||||
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa) | ≤1.0X10-13 | ||||||
Dimensional Stability | ±2 | ||||||
♦Products can be customized as per your requirement.

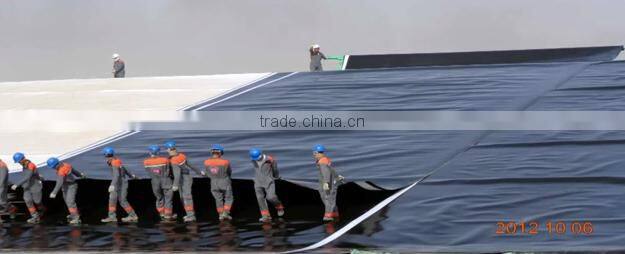

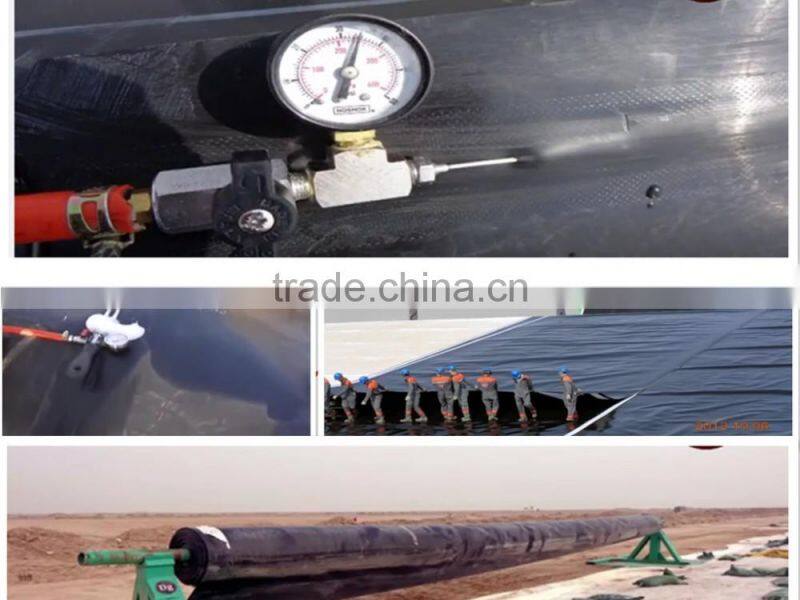

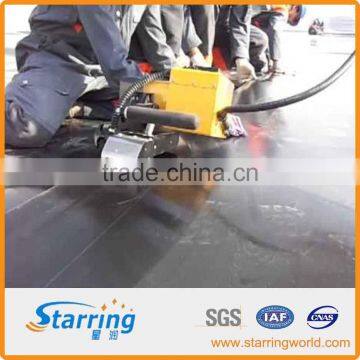

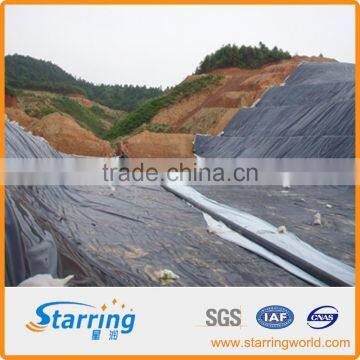

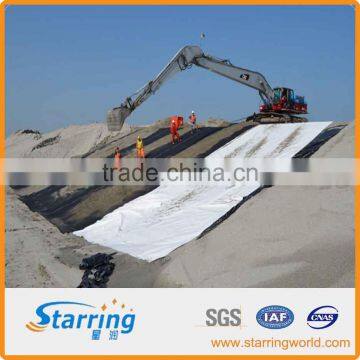

Where can we use the product?
Product application will make us a direct impression.
♦Product usage of Good price for HDPE Geomembrane/hdpe film of Stewpond
