HDPE Geomembrane Specification HDPE g
No. |
Item |
Test Value |
|||||||||
0.75mm |
1.0 mm |
1.25 mm |
1.5 mm |
2.0 mm |
2.5 mm |
3.0mm |
|
|
|
||
1 |
Minimum Density(g/cm³) |
0.939 |
|||||||||
2 |
Tensile Property |
||||||||||
Yield Strength ,N/mm |
11 |
15 |
18 |
22 |
29 |
37 |
44 |
|
|
|
|
Break Strength ,N/mm |
20 |
27 |
33 |
40 |
53 |
67 |
80 |
|
|
|
|
Yield Elongation ,% |
12 |
||||||||||
Break Elongation ,% |
700 |
||||||||||
3 |
Tear Resistance N |
93 |
125 |
156 |
187 |
249 |
311 |
374 |
|
|
|
4 |
Puncture Resistance N |
240 |
320 |
400 |
480 |
640 |
800 |
960 |
|
|
|
5 |
Stress Crack Resistance, hrs |
300 |
|||||||||
|
6
|
Carbon Black |
||||||||||
Carbon Black Content, % |
2.0-3.0 |
||||||||||
Carbon Black Dispersion |
Carbon black dispersion(only near spherical agglomerates) for 10 different views 9 in categories 1 or 2 and 1 in category 3 |
||||||||||
|
7
|
Oxidative induction time(OIT) |
||||||||||
Standard OTI Min |
100 |
||||||||||
High Pressure OTI Min |
400 |
||||||||||
8 |
Oven aging at 85℃ |
||||||||||
|
Standard OIT-% retained after 90 days |
55 |
||||||||||
|
High pressure OIT-% retained after 90 days |
80 |
||||||||||
9 |
UV Resistance |
||||||||||
Standard OIT retained after 1600 hrs |
50 |
||||||||||
High pressure OIT retained after 1600 hrs |
50 |
||||||||||
10 |
Low tempreture impact brittle property at -70°C |
Pass |
|||||||||
11 |
Water vapor permeability (g.cm/cm2 .s.Pa) |
≤1.0×10-13 |
|||||||||
12 |
Dimensional Stability (%) |
±2 |
|||||||||
HDPE Geomembrane Roll Size HD
Thickness |
Width |
Length |
Remark |
0.5mm |
5.8m ( Standard ) |
50m - 400m |
The standard width is based on the max loading quantity according to the container size . It’s will be loading more quantity to save Freight cost .
For other types also could be produce as request , the exact package will send to you driectly . |
7.0m |
50m - 400m |
||
7.5m |
50m - 400m |
||
8.0m |
50m - 400m |
||
1.0mm |
5.8m ( Standard ) |
50m / 100m / 150m |
|
7.0m |
50m / 100m / 150m |
||
7.5m |
50m / 100m / 150m |
||
8.0m |
50m / 100m / 150m |
||
1.5mm |
5.8m ( Standard ) |
50m / 100m / 140m |
|
7.0m |
50m / 100m/ 140m |
||
7.5m |
50m / 100m/ 140m |
||
8.0m |
50m / 100m/ 140m |
||
2.0mm |
5.8m ( Standard ) |
50m / 100m |
|
7.0m |
50m / 100m |
||
7.5n |
50m / 100m |
||
8.0m |
50m / 100m |
Function HDPE g
- 1. Good flexibility
2. For service temperature range : -70℃ ~ +110℃
3. Corrosion resistance , aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Application HDPE geomembrane price

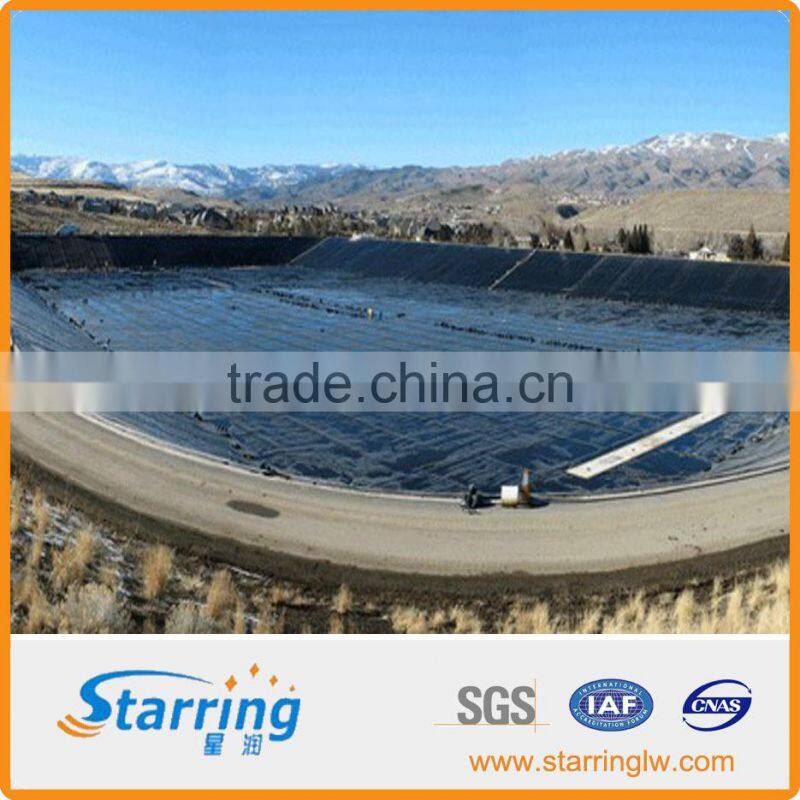

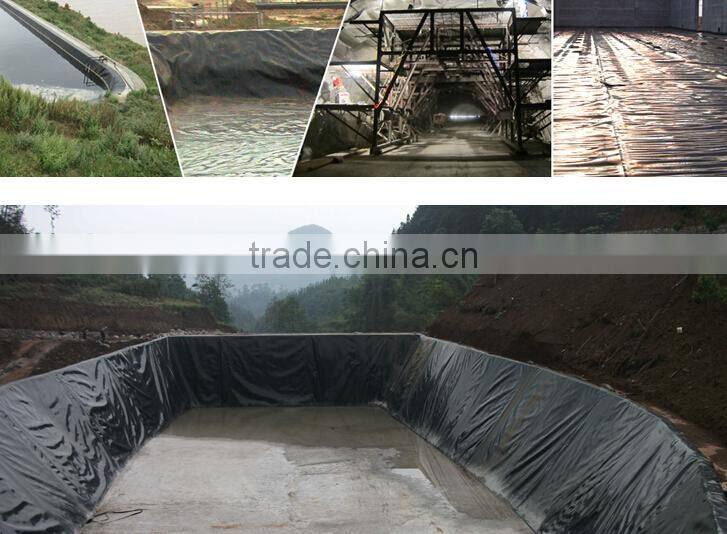

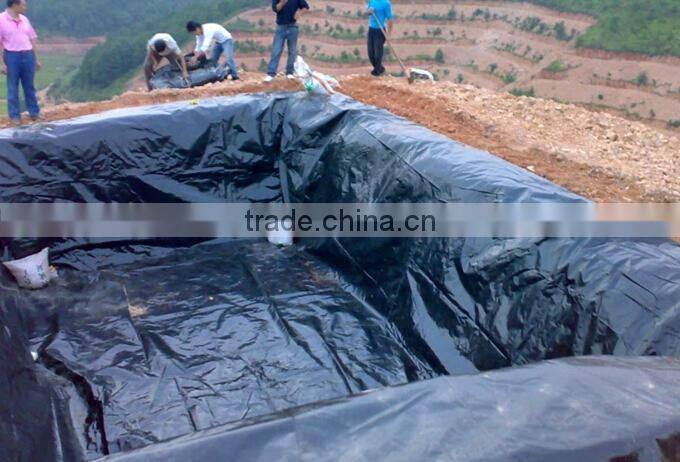

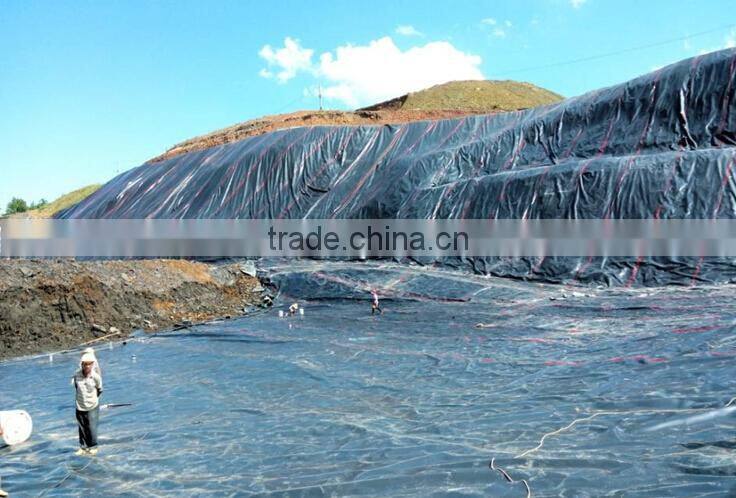

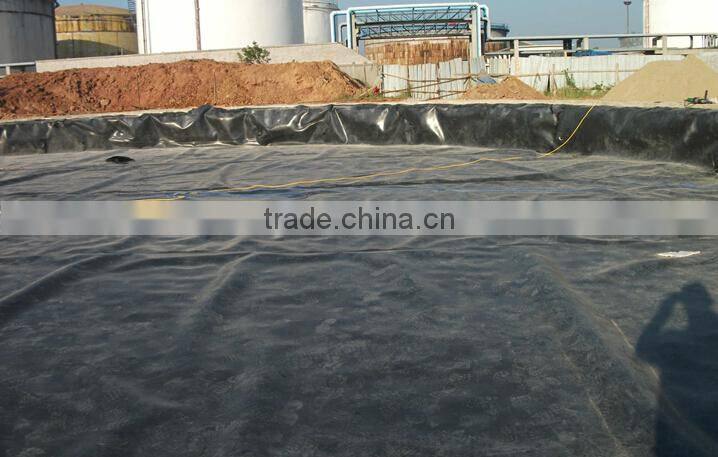

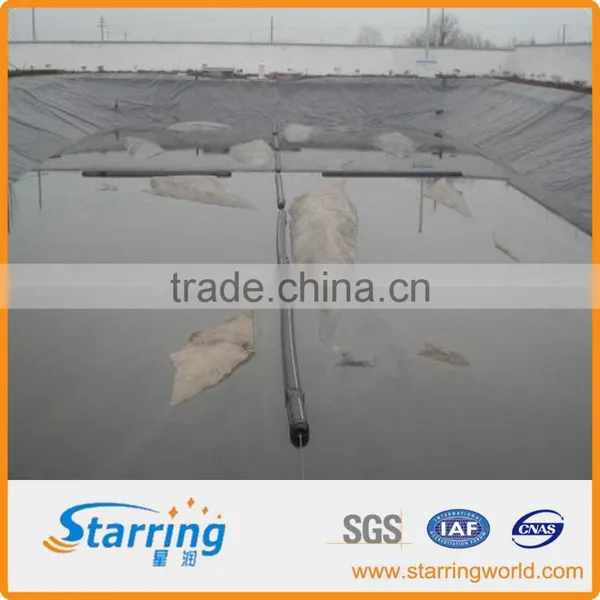

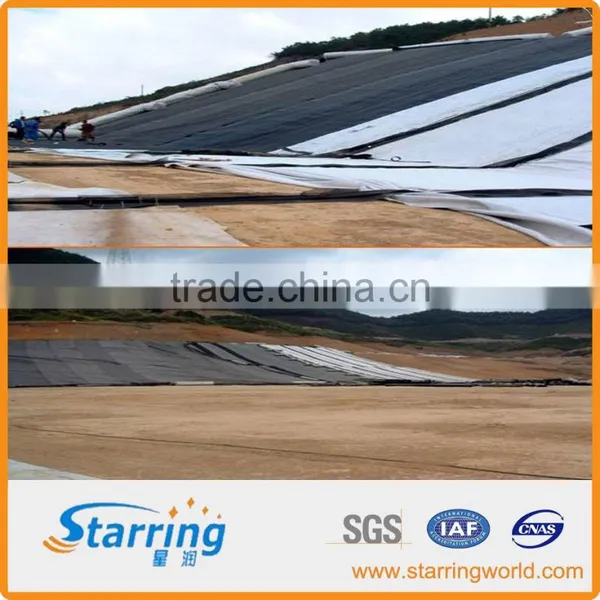

1.Landfills , sewage or waste treatment sewage.

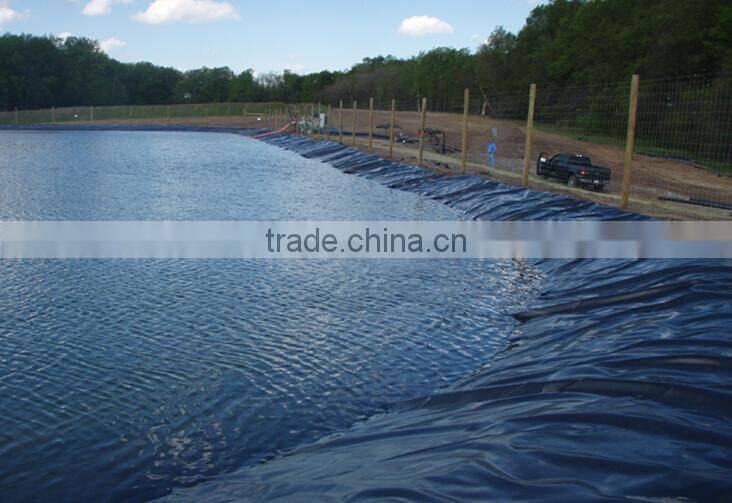

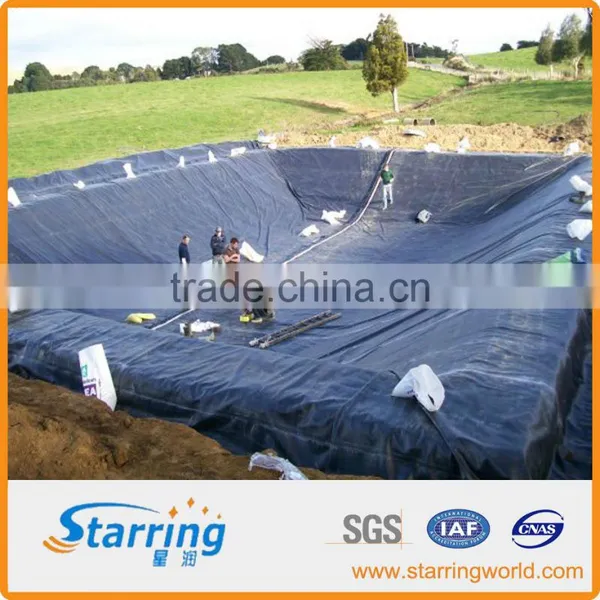

2.River bank, lake dam, dam, water dam and reservoir, channel,has liquid pool ( pit , mine )
3.Metro , basements and tunnels , tunnel seepage control liningfoundation and other foundation saline seepage.
4.Embankment, upstream impervious blanket level, foundation
vertical impermeable layer, cofferdam construction, waste disposal.

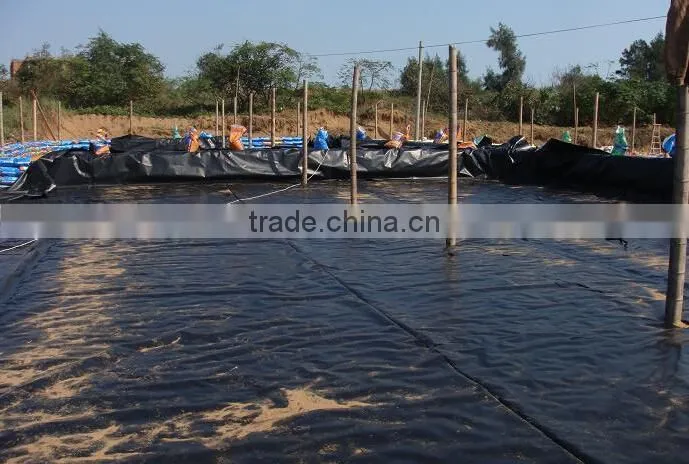

5.Sea water, fresh water fish farm.
6.Road , highway , railway foundation expansive soil and loess of the waterproof layer.
7.Roof impervious.
