dpe sheet 0.5mm White/Blamk pond liner geomemebrane
Description
LDPE geomembrane is based on the material of plastic film, relative to the HDPE geomembrane has better applied and suppleness, is to update the generation of soil seepage control material. LDPE geomembrane and geotextile glue them into a soil anti-seepage material it has corrosion resistance, good low temperature resistance, light quality, laceration resistant ability and other characteristics; The characteristics of its low cost, high quality and low price is not matched by other same category geotechnical seepage control material.
Property
1,Excellent chemical resistance, corrosion resistance
2,The outstanding resistance to stress cracking (ESCR);
3,The lowest permeability;
4,UV resistance, excellent;
5,Embrittlement performance of cold resistance of the stable;
haracteristic
1. Thickness:0.3mm-3.0mm HDPE Geomembrane
2. 4m-9m in roll width, the length as client’s request
Specification
Number | Item | Value | |||||||
0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | ||
1 | Density(g/cm3) | 0.939 | |||||||
2 | Tensile strength at break | 13 | 20 | 27 | 33 | 40 | 53 | 66 | 80 |
(min)/N/mm(MD/CD) | |||||||||
3 | Elongation/%(MD/CD) | ≥800 | |||||||
4 | Modulus of 2%(M)(N/mm) | 210 | 370 | 420 | 520 | 630 | 840 | 1050 | 1260 |
5 | Tear strength (min)(MD/CD)/N | 50 | 70 | 100 | 120 | 150 | 200 | 250 | 300 |
6 | Puncture strength (min)(MD/CD) | 120 | 190 | 250 | 310 | 370 | 500 | 620 | 750 |
7 | Elongation at multiaxial%≥ | 30 |
|
|
|
|
|
|
|
8 | Carbon black content (%) | 2.0-3.0 | |||||||
9 | Carbon black dispersion | Carbon black dispersion(only near spherical agglomerates)for10different | |||||||
views 9 incategories 1 or 2 and 1 in category | |||||||||
10 | Oxidative induction time (min) | Stand OIT≥100 | |||||||
11 | High pressure OIT≥400 | ||||||||
| Oven aging at 85°C | ≥35 | |||||||
12 | UV Resistance%retained after1600 hrs | ≥35 | |||||||

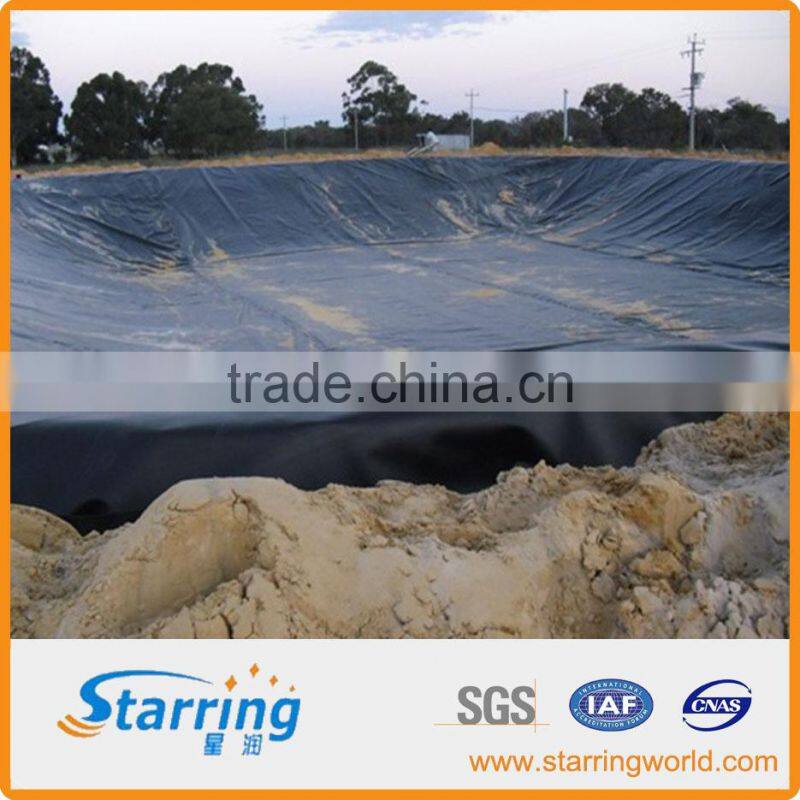

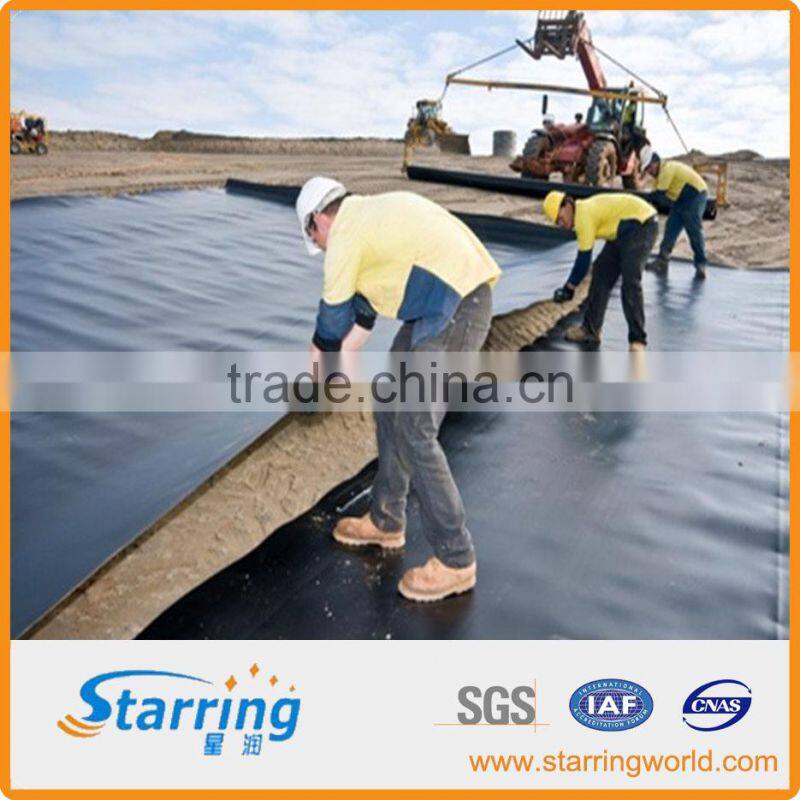

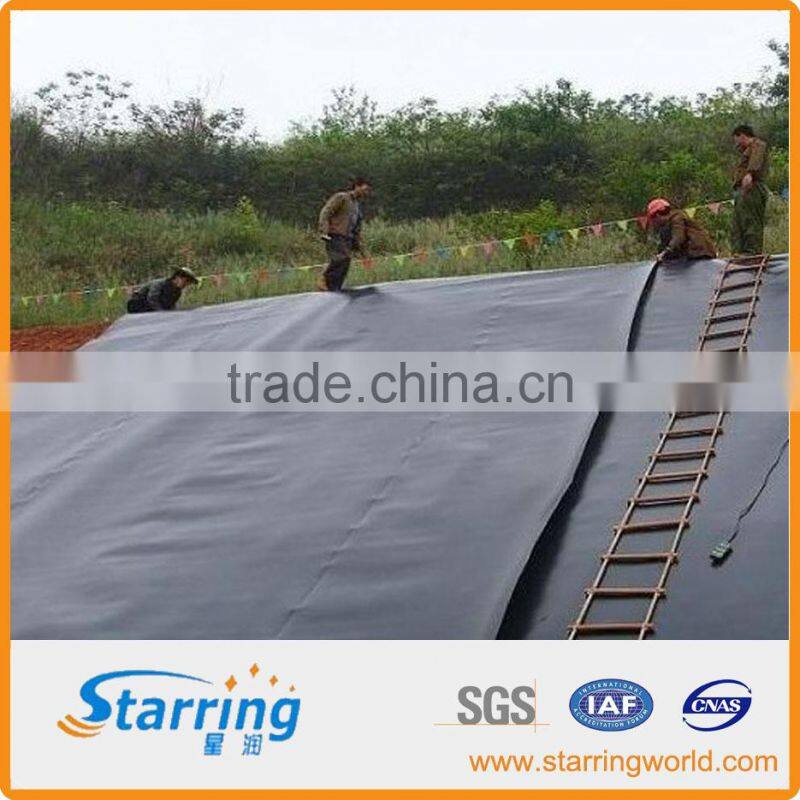

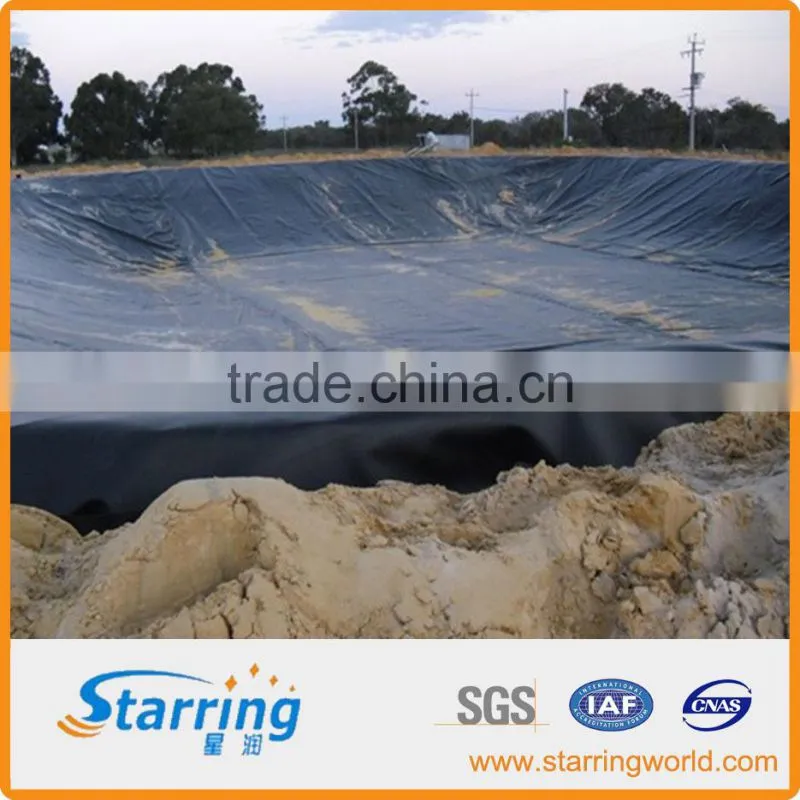

Application
1.Landfill(primary &secondary containment)
2.Landfill caps/closures
3.Lagoon Liners
4.Mining Heap Leach Pads
5.Pond Liners
6.Agriculture Pond Liners
7.Canal Linings
8.Raw Water treatment reservoirs
9.Potable water reservoirs
10.Retention ponds
11.Floating covers
12.Secondary containment for the above ground storage tanks
