US$ 0.95 - 0.95 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Starring
Model Number:
ST--Geomenbrane
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Starring
Model Number ST--Geomenbrane
Material HDPE

Description

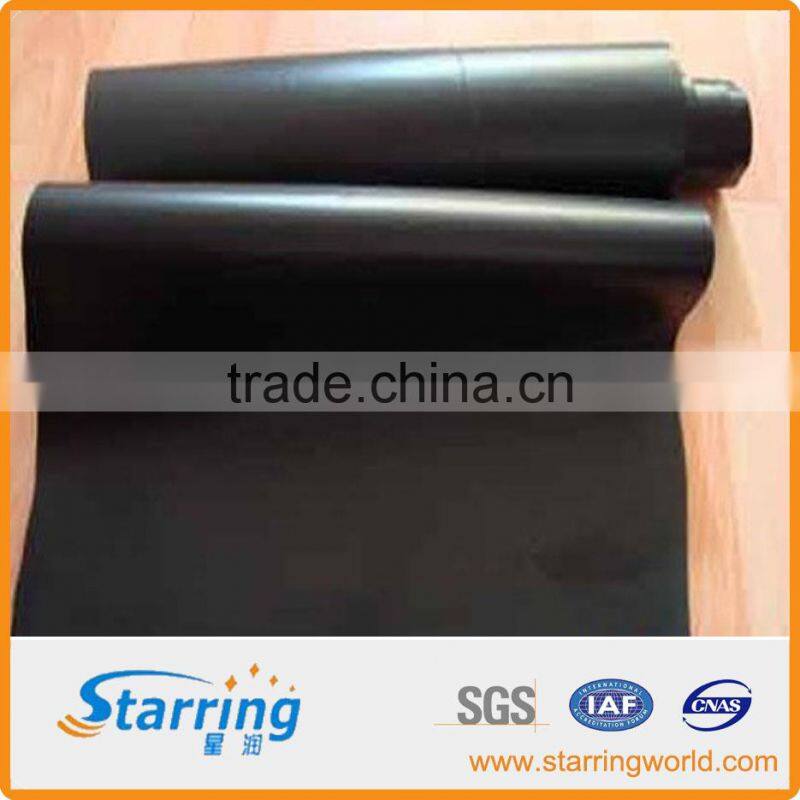

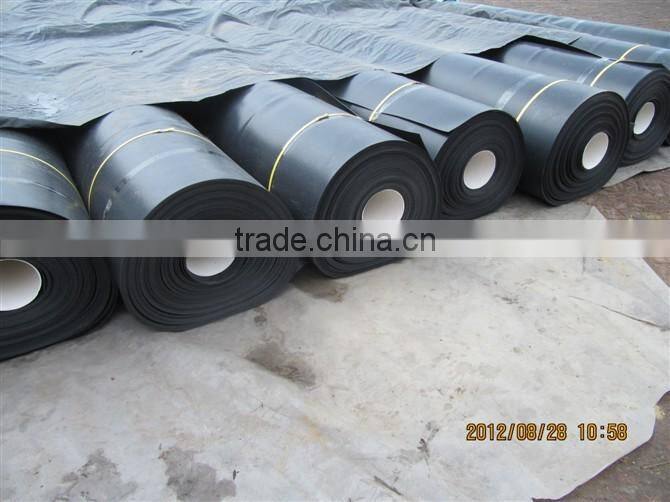

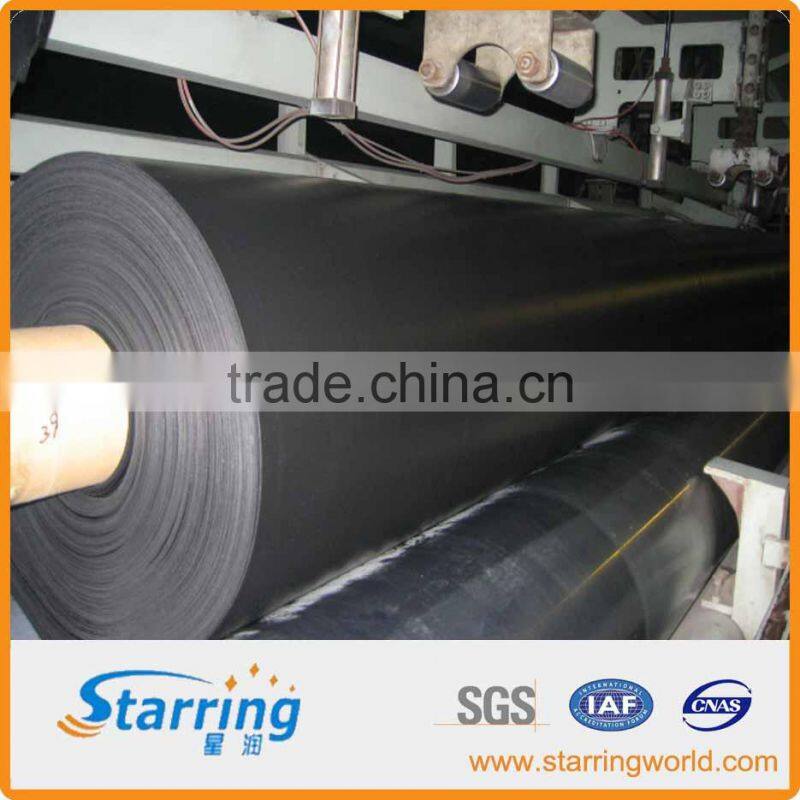

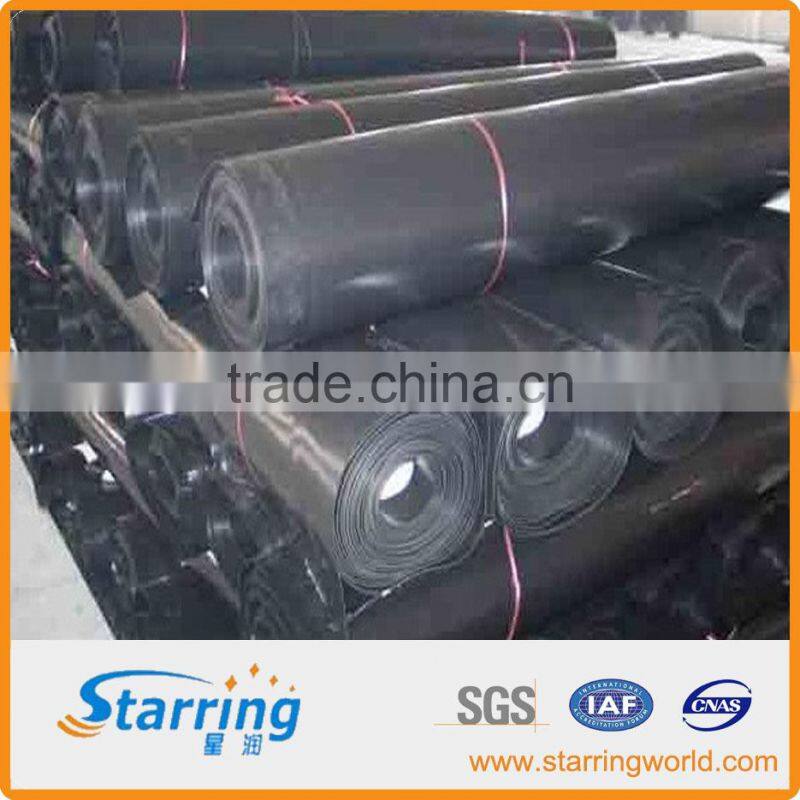

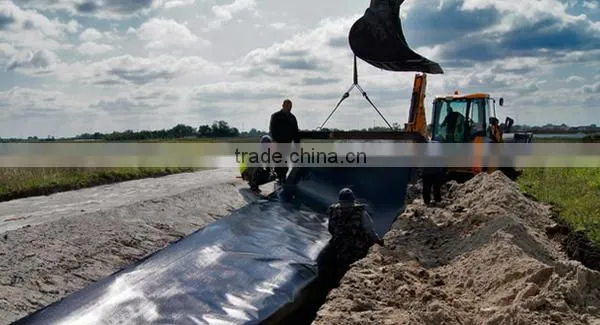

The popularity of High Density Polyethylene (HDPE) is primarily due to its low initial material cost and excellent chemical reistance. This allows thicker sections to be used compared to other geomembrane materials. A thick, durable, HDPE liner can be placed in exposed applications where the cost of other materials would be prohibitive. HDPE has excellent chemical resistance which is often the driving force behind the selection of HDPE. HDPE is a field assembled lining material that cannot be practically fabricated in the shop. All HDPE projects, regardless of size, must be installed by trained installers. HDPE is a versatile material which is used widely across all applications. One of the main uses of HDPE is for landfill base liners where its chemical resistance is used to good effect. HDPE can also be used in a multitude of secondary containments, pond linings, and water containment projects. HDPE is best used as an exposed lining material, and has the UV resistance required for many years of outstanding service.



Specification ASTM GRI-GM13 Standard



HDPE Minimum Material Properties

Style

ASTM

HDPE 40
Smooth

HDPE 60
Smooth

HDPE 80
Smooth

HDPE 60
Textured

HDPE 80
Textured

Nominal Thickness

D5199

40 mil
1.0 mm

60 mil
1.5 mm

80 mil
2.0 mm

57 mil
1.45 mm

76 mil
1.90 mm

Density (Untextured)

D792

0.94

0.94

0.94

0.94

0.94

Tensile Strength
Modified Type IV Die

D638
Stress at Yield

84 ppi
15 kN/m

126 ppi
22 kN/m

168 ppi
29 kN/m

126 ppi
22 kN/m

168 ppi
29 kN/m

Stress @ Break

152 ppi
27 kN/m

228 ppi
40 kN/m

304 ppi
53 kN/m

90 ppi
16 kN/m

120 ppi
21 kN/m

Strain @ Yield
33 mm Guage

12%

12%

12%

12%

12%

Strain @ Break
50 mm Guage

700%

700%

700%

100%

100%

Tear Resistance

D1004

28 lbs
125 N

42 lbs
187 N

56 lbs
249 N

42 lbs
187 N

56 lbs
249 N

Dimensional Stability

D1204 (Max)

± 2%

± 2%

± 2%

± 2%

± 2%

Stress Cracking

D5397

500 Hours

500 Hours

500 Hours

500 Hours

500 Hours

Puncture Resistance

D4833

72 lbs
320 N

108 lbs
480 N

144 lbs
640 N

90 lbs
400 N

120 lbs
534 N

Black Content

D1603

2.0 - 3.0%

2.0 - 3.0%

2.0 - 3.0%

2.0 - 3.0%

2.0 - 3.0%

Black Dispersion

D5596

CAT 1 or 2

CAT 1 or 2

CAT 1 or 2

CAT 1 or 2

CAT 1 or 2

Maximum Continuous use Temperature1



70°C

70°C

70°C

70°C

70°C

Features

  •   Durable, UV stable material
  •   Supplied in8m wide rolls
  •   Good chemical resistance

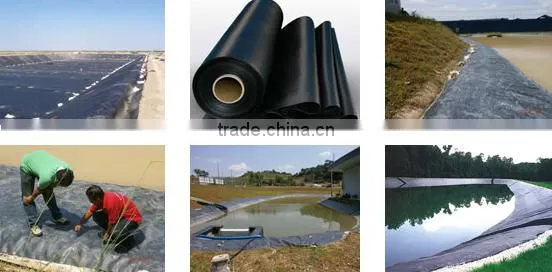

Application

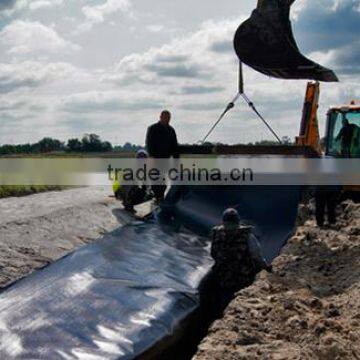

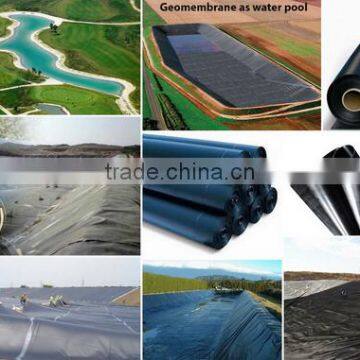

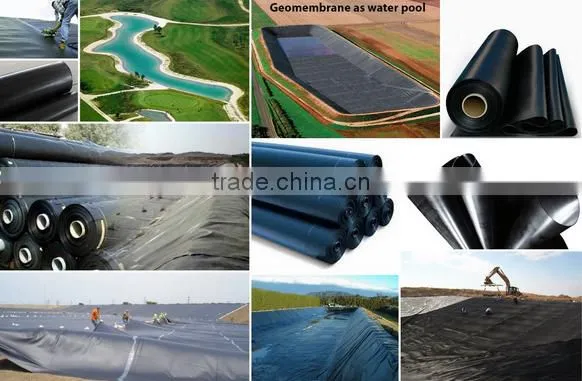

  •   Excellent long term exposed lining material
  •   Landfill liners
  •   Heap leach and mine ponds

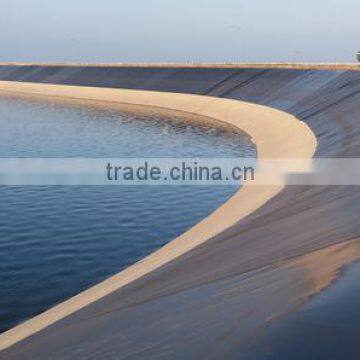

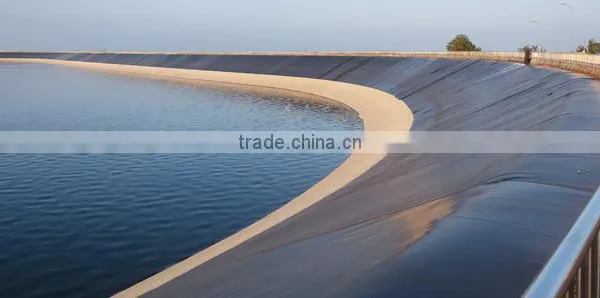

  •   All water containment applications
