PET Filament Spunbond Needle Punched Geotextile Fabric Price

Specifications

PET Filament Spunbond Needle Punched Geotextile Fabric Price
1.Good drainage performance
2.Good filtration performance

PET Filament Spunbond Needle Punched Geotextile Fabric Price

_____________________________________________________________________

Product Description

PET Filament Spunbond Needle Punched Geotextile is made polypropylene filament,

featured with good physical property,high tensile, resisiting tearing,bursting,stabling,etc.It

boasts excellent drainage,separation,filtration and protection performance.

 _____________________________________________________________________

Product Specifications and Technical Parameters

item		Value
Nominal breaking strength /(KM/m)			4.5	7.5	10	15	20	25	30	40	50
1	Breaking strength(MD/CD)(KN/m)		4.5	7.5	10	15	20	25	30	40	50
2	Elongation at break (MD/CD)/%		40-80
3	CBR mullen burst strength KN≥		0.8	1.6	1.9	2.9	3.9	5.3	6.4	7.9	8.5
4	Tear strength/KN		0.14	0.21	0.28	0.42	0.56	0.70	0.82	1.10	1.25
5	Sieve size O90 mm		0.05-0.20
6	Vertical permeability coefficient cm/s		K×(10-1-10-3)K=1.0-9.9
7	Thickess/mm ≥		0. 8	1.2	1.6	2.2	2.8	3.4	4.2	5.5	6.8
8	Width variation%		-0.5
9	Weight variation		-5

 _____________________________________________________________________

Geotextile joints to connect

 General Geotextile joints to connect there is overlap, welding and oversew three ways.

 Note:If geotextile joints to connect on the flat ground, overlap width>30cm.

            If geotextile joints to connect not on the flat ground, overlap width>50cm.

 _____________________________________________________________________

Application Range

Used in the area of highway, railway, dam, coastal beach for rein forcement, filtration, separation and

drainage, especially used in salt marshes and garbage burying field.

_____________________________________________________________________

Picture Information

Production Line

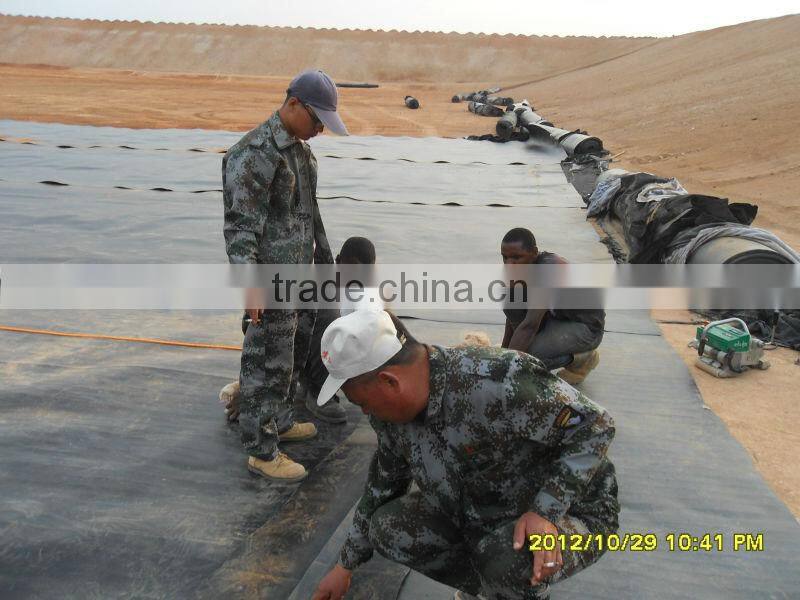

 Construction Project
