Manufacture supply waterproof HDPE Smooth Liners

Name: Manufacture supply waterproof HDPE Smooth Liners
Brand: Hongxiang
Price: USD $2.01 - 2.2 / Square Meter

FOB Price

USD $2.01 - $2.2 / Square Meter

2000 Square Meters(Min.Order)

Supply Ability 100000 Square Meter / Square Meters per Month
Port QingDao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Brand Name:	Hongxiang	Model Number:	GRI-GM13 1.5mm
Material:	HDPE

Product Description

Product Details

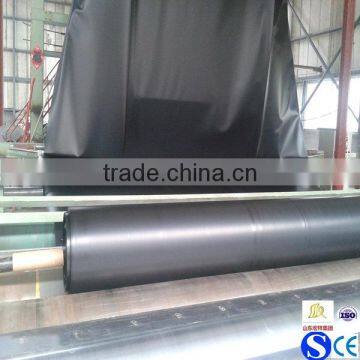

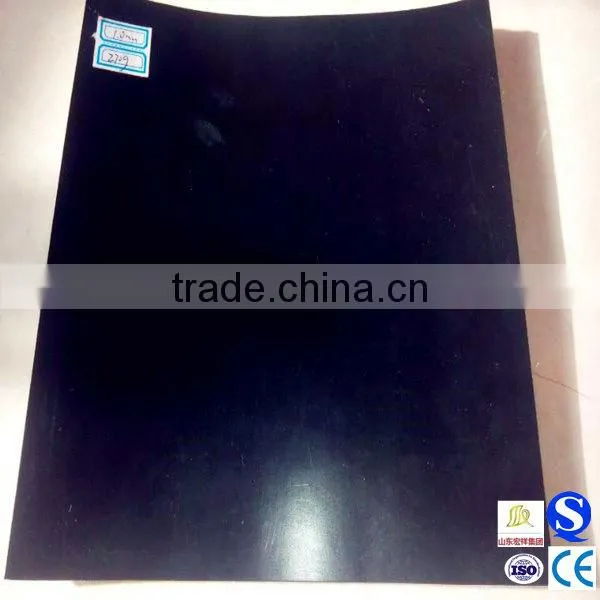

HongXiang new geo-material CO.LTD offers High Density Polyethylene (HDPE) smooth geomembranes in thicknesses of 0.5-3.0mm. Roll width 4-8m and vary in length and colours depending on the requirements of clients.

Features:

>Low Permeability - HDPE lining systems are secure because leachate does not penetrate them; methane gas will not escape from the HDPE cover system; and rainwater will not infiltrate an HDPE cap.

>Chemical Resistance - HDPE, resistant to a wide range of chemicals, is not threatened by typical solid or hazardous waste leachates. It is also suitable for sludge and secondary containment around chemical storage facilities.

>Ultraviolet Resistance - HDPE's resistance to UV exposure is further enhanced by the addition of carbon black. Additionally, with the absence of plasticizers, volatilization is not a problem.

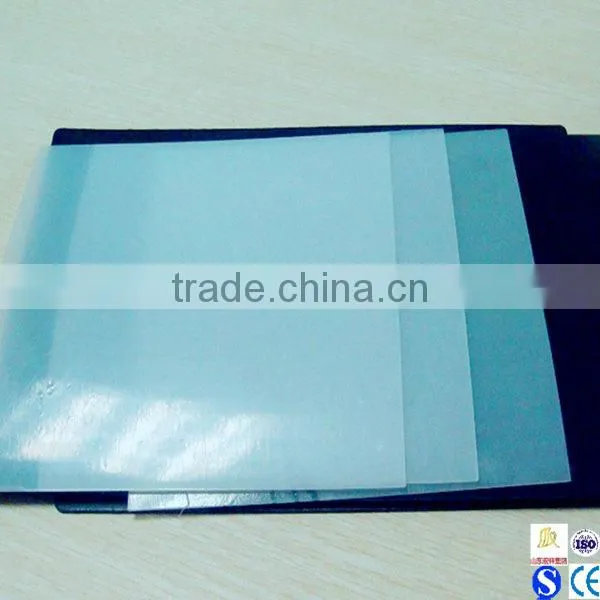

>Reflective Factor - HongXiang ® HDPE geomembranes come in white as well as black. A white surface helps mitigate liner temperature extremes and aids visual inspection.

Product Introduction

We are the largest production base and suppliers of premium quality HDPE Liner in China. These liners are manufactured using excellent quality raw material in compliance with international quality standards. Our Manufacturing Quality Control and Quality Assurance Program ensures that only the highest quality products represent the Hong Xiang ® name.
These liners are the industry standard for a wide range of applications. We offer these HDPE liners at reasonable price.

HONG XIANG HDPE smooth geomembranes are the preferred products for lining projects requiring low permeability, exceptional chemical and ultraviolet resistance properties, which makes them extremely cost-effective for many applications, such as:

• Landfill caps/closures
•Mining Heap Leach Pads
•Pond Liners, Agriculture Pond Liners, Canal linings, Retention ponds
• Raw water treatment reservoirs
•Potable water reservoirs
•Floating Covers
•Secondary containment for above ground
•storage tanks
•Solutions ponds for mining applications
• Waste water treatment lagoon

Product Parameters

NO		Value
NO	Item(mm)	0.75	1.0	1.25	1.50	2.0	2.50	3.0
1	Density (g/cm2)	0.939
2	Tensile propeties
	Yield strength (N/mm)	11	15	18	22	29	37	44
	Break strength (N/mm)	20	27	33	40	53	67	80
	Yield elongation (%)	12
	Break elongation (%)	≥450
3	Tear resistance (N)	93	125	156	187	249	311	374
4	Puncture resistance (N)	240	320	400	480	640	800	960
5	Stree crack tensistance (h)	≥1500
6	Carbon black
	Carbon black content (%)	2.0-3.0
	Carbon black dispersion	Carbon black dispersion (only near spherical agglomerates)for10 different
		views 9 in categories 1 or 2 and 1 in category3.
7	Oxidative induction time(OIT)
	Standard OIT(min)	100
	High pressure OIT(min)	400
8	Oven aging at 85°C
	Standard OIT-% retained after 90 days (%)	55
	High pressure OIT-% retained after 90 days (%)	80
9	UV Resistance
	Standard OIT retained after 1600 hrs (%)	50
	High pressure OITretained after 1600 hrs (%)	50
10	Low tempreture impact brittle property at -70°C	Pass
11	Premeability ( g.cm/(cm2).Pa)	≤1.0×10-13
12	Dimensional stability (%)	±2

Produc Applications

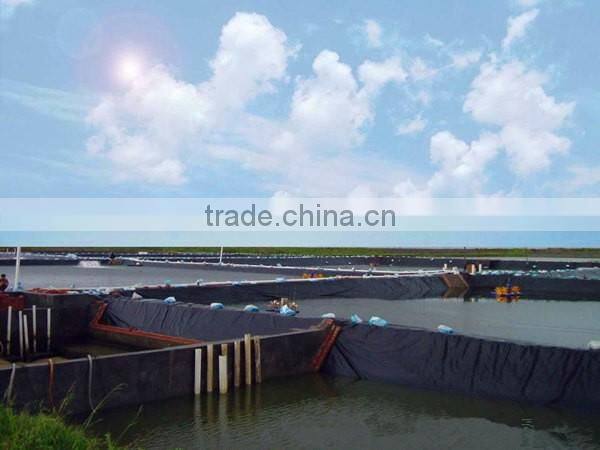

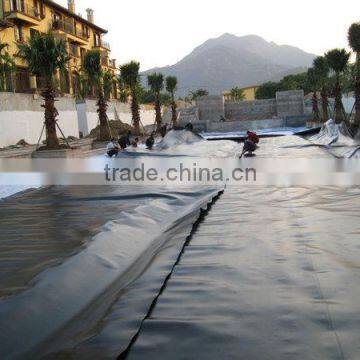

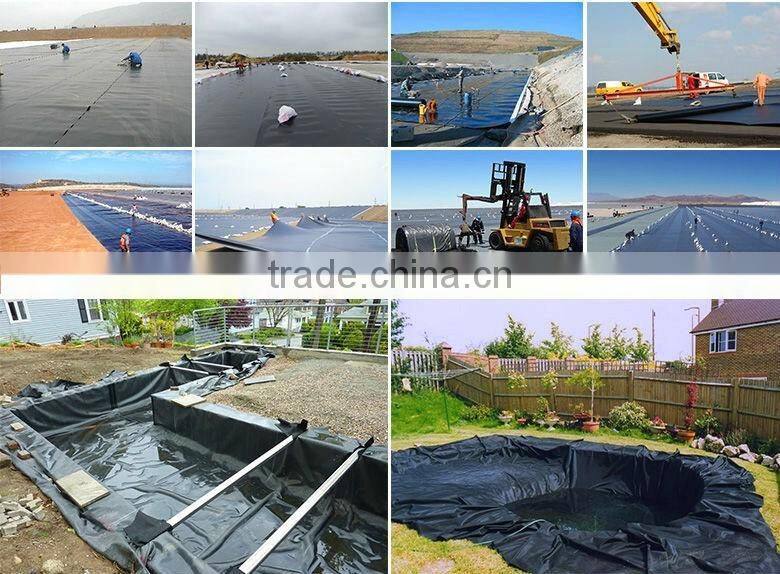

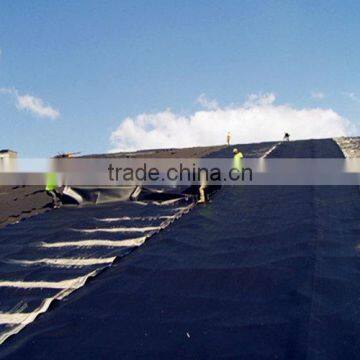

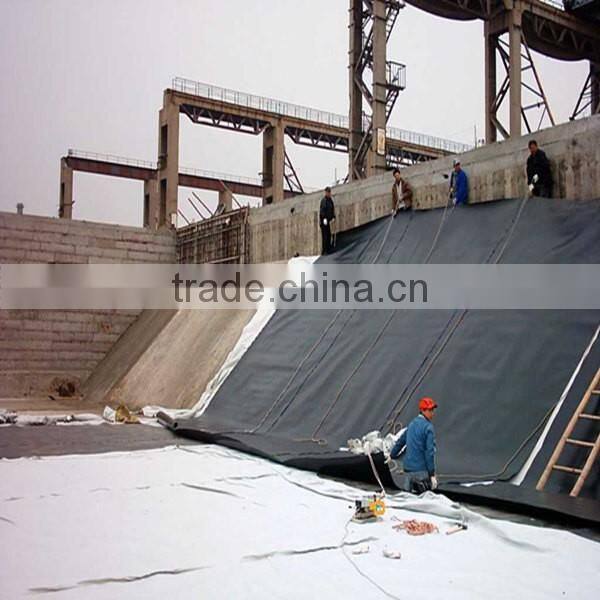

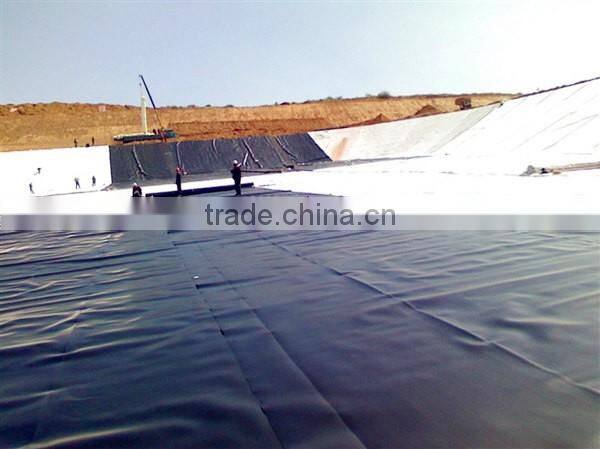

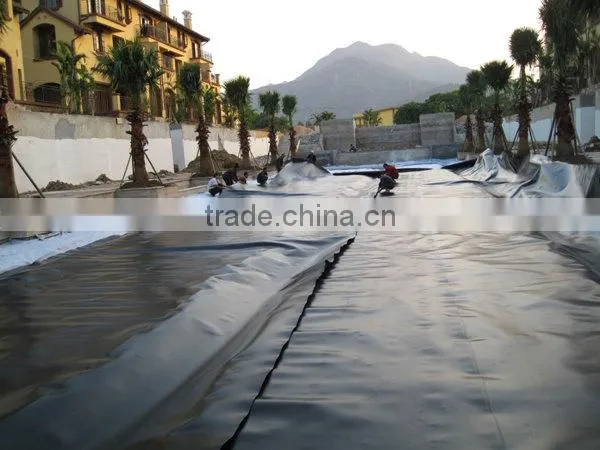

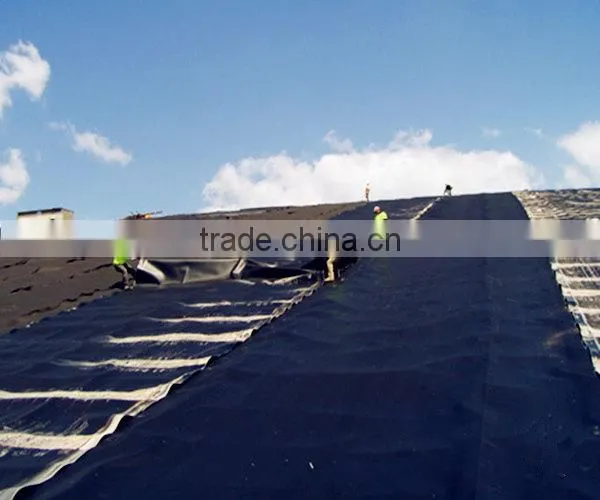

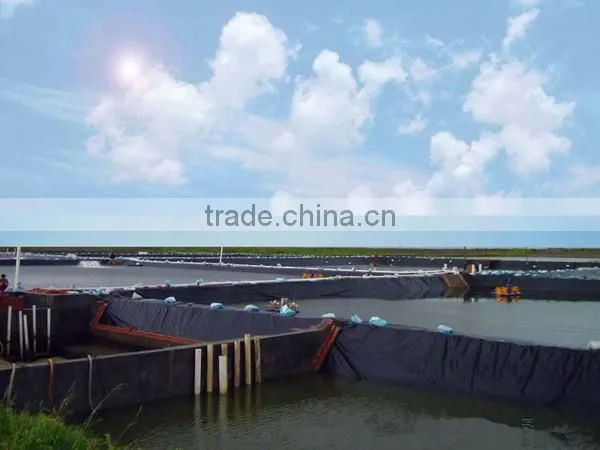

Product Applications

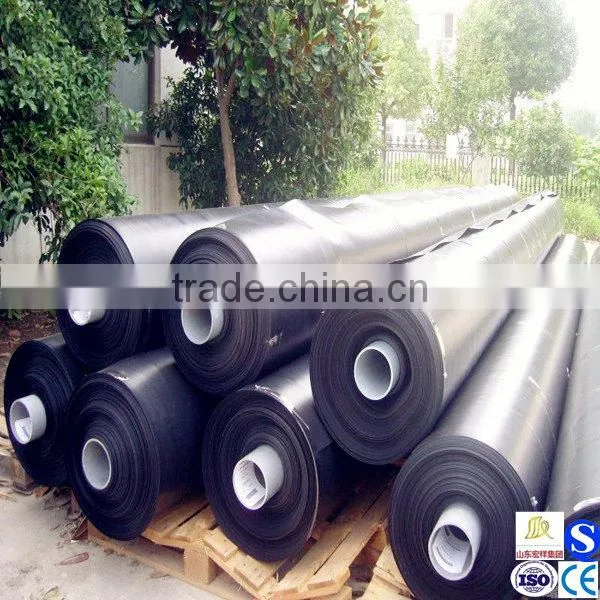

Packing and Delivery

Our Company

About us

1, Our company established in June 1987, with more than 25 years of experience in this field, now is the professional manufacturer of geosynthetics products and the largest production base in China.

Looking forward to cooperation with you, our professional team will let you satisfied with our product.

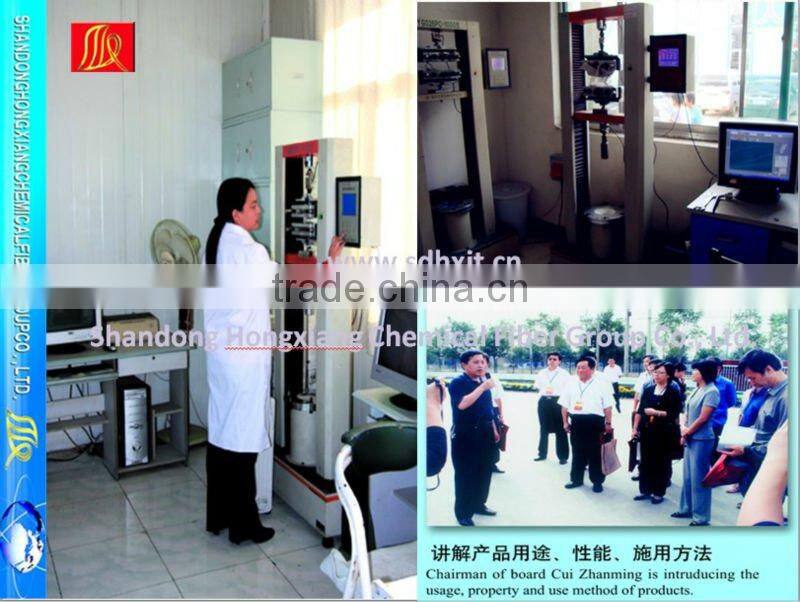

Equipment & technology

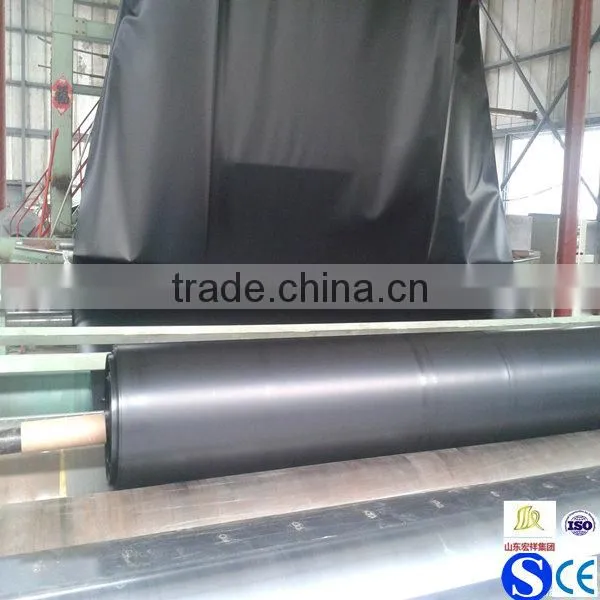

2, The equipment of Hong Xiang New Geo-Material Co,LTD, are mainly imported from Germany, Italy, Canada,France,and other well-known domestic enterprises,It has one full set of precise testing instrument,testing equipment and quality inspection team,Technology Research-Development team.

Service

3, Best service from Hong Xiang CO. Ltd.：＆ Manufacture for 90% of Geo-material ＆Own Shipping Agent,＆Own Construction Team.

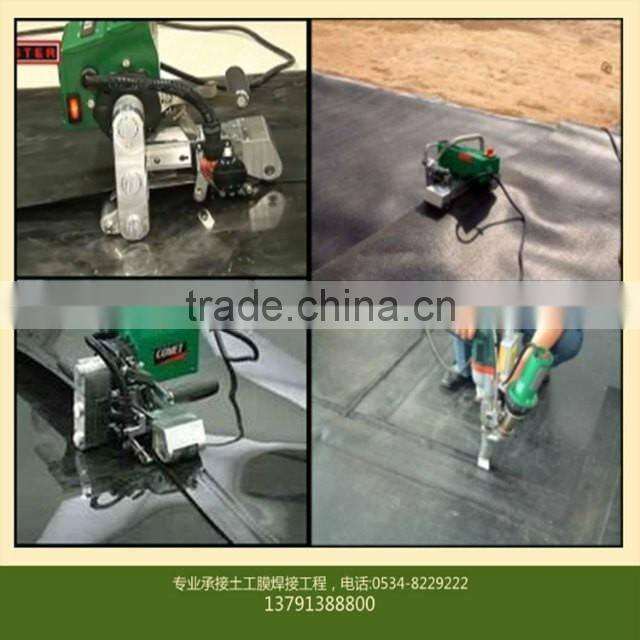

we can provide technical support
and services as pictures.

Contact Us

Hongxiang New Geo-Material Co., Ltd.: Contact nameNicky King; Phone086-0534-2777880; AddressNO.2269 Dongfeng Road Decheng District Dezhou,Shandong
