Filament Spunbond Nonwoven Geotextile

Filament Spunbond Nonwoven Geotextile photo-1
Filament Spunbond Nonwoven Geotextile photo-2

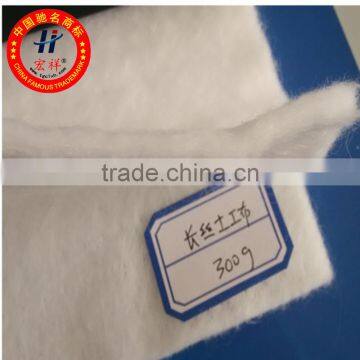

Filament Spunbond Nonwoven Geotextile photo-3
Filament Spunbond Nonwoven Geotextile photo-4
US$ 0.22 - 1.58 MOQ: 5800 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hongxiang
Model Number:
HX-100g-800g
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Hongxiang
Model Number HX-100g-800g
Geotextile Type Non-Woven Geotextiles
Product Description
  Filament Spunbond Nonwoven Geotextile Description:



Filament Spunbond Nonwoven Geotextile Description:



Made from virgin PET(polyester)chips,the continuous filament was extruded from PET chip by machine directly by spunbond process,and then punch together to get the stable 3D with higher strength fabric.So it has high strength, good creep property excellent and erosion resistance,aging-resistance and heat resistance.



Filament Spunbond Nonwoven Geotextile Property:



Good creep property and hydraulics property,resistance to corrosion,excellent anti-aging and heat-resistance quality.





Filament Spunbond Nonwoven Geotextile Application:



1.filtration of soils in drainage application by retaining soil particles while allowing for the free flow of water



2.Separation and reinforcement in road and railway construction



3.Prevention of soil movement in erosion control measures



4.Cushioning and protection in many containment projects





Filament Spunbond Nonwoven Geotextile Production standard:



GB/T17639-2008



JT/T 519-2004

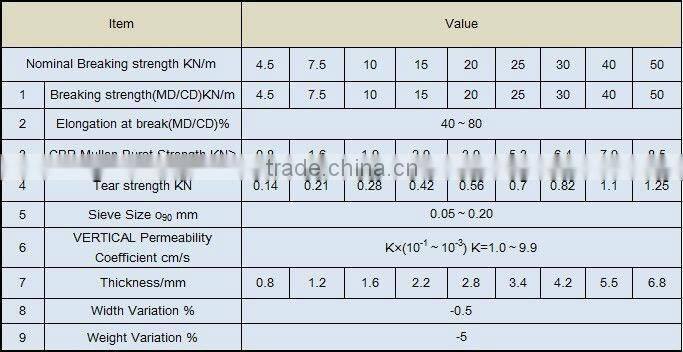

Specification
  Filament Spunbond Nonwoven Geotextile Specification:





1.100g/m2-800g/m2



2.4m-7m in roll width ,the length as clients’ request



Filament Spunbond Nonwoven Geotextile



workshop

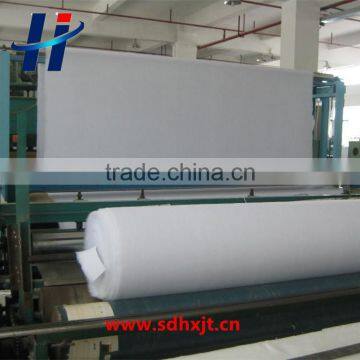

Filament Spunbond Nonwoven Geotextile Workshop
  Using nonwoven needle punched manufacturing process
  Filament Spunbond Nonwoven Geotextile
  Filament Spunbond Nonwoven Geotextile




  ·Producing Workshop Show:

Testing Procedure
Filament Spunbond Nonwoven Geotextile Testing Procedure
  We have implemented a strict and complete quality control system, which ensures that each
product can meet quality requirements of customers. Besides, all of our products have been
 strictly inspected before shipment.
Filament Spunbond Nonwoven Geotextile

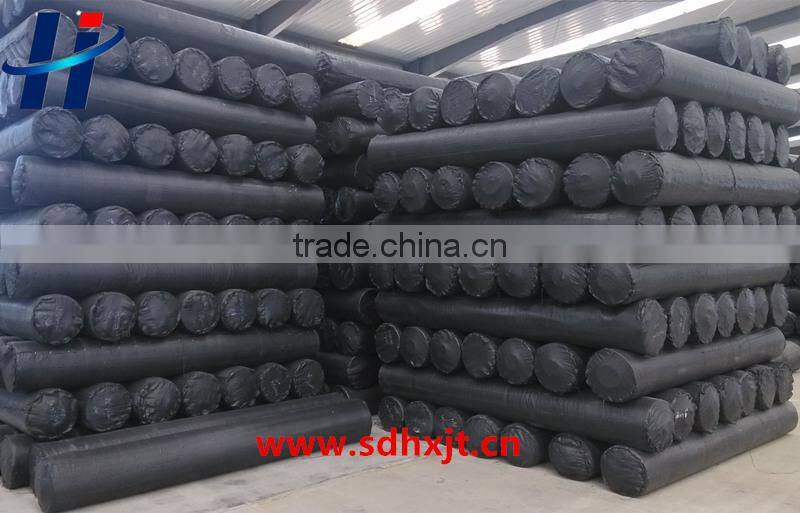

Packaging & Shipping
  Filament Spunbond Nonwoven Geotextile Packaging & Shipping
  After inspection, geotextile rolls are wrapped in woven cloth then loaded in container. Or as per requirements.
Filament Spunbond Nonwoven Geotextile
Filament Spunbond Nonwoven Geotextile
Short Fiber Nonwoven Geotextile Loading Quantity:
(1)1x20GP (5.89m(L) x2.35m(W) x2.39m(H)) : around 4T

(2)1x40GP (12.03m(L) x2.35m(W) x2.39m(H)) : around 8T

(3)1x40HQ (12.03m(L) x2.35m(W) x2.69m(H)) :around 8T

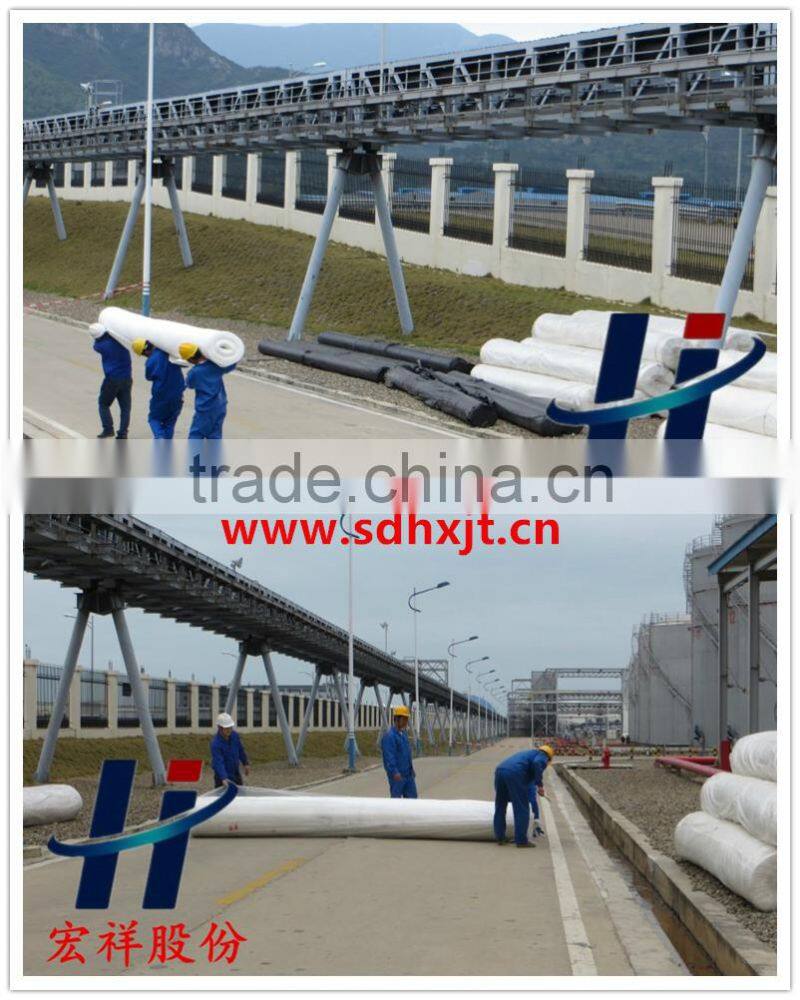

Application
   Filament Spunbond Nonwoven Geotextile Application:



  1. Filament Spunbond Nonwoven Geotextile  in road and railway construction

Filament Spunbond Nonwoven Geotextile
Filament Spunbond Nonwoven Geotextile


       2. Filament Spunbond Nonwoven Geotextile for slope protection:
Filament Spunbond Nonwoven Geotextile
     3.  Filament Spunbond Nonwoven Geotextile in Highway Construction
Filament Spunbond Nonwoven Geotextile
        4.   Filament Spunbond Nonwoven Geotextile in landfill Filament Spunbond Nonwoven Geotextile
 Filament Spunbond Nonwoven Geotextile

FAQ
FAQ:


Qualifiedand Safety:



    Our product was proved as good physical and mechanic performance, high tearing resistance, strong deformation adaptability, puncture, aging, ultra-violet radiation, oil and salt, alkali and corrosion resistance, high and low temperature resistance, non-toxicity, long operational life, good waterproof, drainage, anti-seepage and damp proof effects, complete width and thickness specifications, low cost and simple construction.



Questions and Answers:



Q: Can you accept sample order?



A: Yes, we accept samples with little and reasonable charge.



Q: What is your MOQ?



A: Normally, 5000 m2 per order.



Q: What is your delivery time? Can we short it in 7 days or less?



A: 7 days for sample, 20-25 days for mass production.



Q: What is your payment terms?



A: T/T (40% as deposit,60% against the B/L), Paypal (3% surcharge), Western Union or 20% deposit 80% L/C.



Q: How can I get my order?How can I know you sent the goods.



A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number or B/L.



Q:How about your quality?



A: Try a small order, you will have your own judgment!
