Fish film Chinese manufacturer best price Geomembrane fish farm pond liner
Product description
Type: HDPE geomembrane
Material: High-density polyethyle
Thickness: 0.1mm-3.0mm
Width:1m-8m
Roll length: 50m or at your request
Color: Black or at your request.
Density: 0.94g/cm3
Temperature range:-60oC -- +60oC
Lifetime: more than 50 years
Executive standard:GB/T 17643-2011
Specification
| NO | Item | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | ||
| 1 | Density (g/cm2) | 0.939 | ||||||
| 2 | Tensile propeties | |||||||
| Yield strength (N/mm) | 11 | 15 | 18 | 22 | 29 | 37 | 44 | |
| Break strength (N/mm) | 20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yield elongation (%) | 12 | |||||||
| Break elongation (%) | ≥450 | |||||||
| 3 | Tear resistance (N) | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| 4 | Puncture resistance (N) | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| 5 | Stree crack tensistance (h) | ≥1500 | ||||||
| 6 | Carbon black | |||||||
| Carbon black content (%) | 2.0-3.0 | |||||||
| Carbon black dispersion | Carbon black dispersion (only near spherical agglomerates)fo r10 different | |||||||
| views 9 in categories 1 or 2 and 1 in category3 | ||||||||
| 7 | Oxidative induction time(OIT) | |||||||
| Standard OIT(min) | 100 | |||||||
| High pressure OIT(min) | 400 | |||||||
| 8 | Oven aging at 85°C | |||||||
| Standard OIT-% retained after 90 days (%) | 55 | |||||||
| High pressure OIT-% retained after 90 days (%) | 80 | |||||||
| 9 | UV Resistance | |||||||
| Standard OIT retained after 1600 hrs (%) | 50 | |||||||
| High pressure OITretained after 1600 hrs (%) | 50 | |||||||
| 10 | Low tempreture impact brittle property at -70°C | Pass | ||||||
| 11 | Premeability ( g.cm/(cm2).Pa) | ≤1.0×10-13 | ||||||
| 12 | Dimensional stability (%) | ±2 | ||||||
Introduction
HDPE geomembrane is high density polyethylene resin as raw material to produce a waterproof barrier type materials.
HDPE geomembrane full name "high-density polyethylene film", have good environmental stress cracking resistance,
low temperature resistance, anti-aging, corrosion resistance.
Property
1.High tensile strength, good elasticity
2,impervious performance
3, the construction is simple and convenient, lightweight, easy to transport
4, physical, chemical property
5, low cost, high overall efficiency
6, health, environmental protection

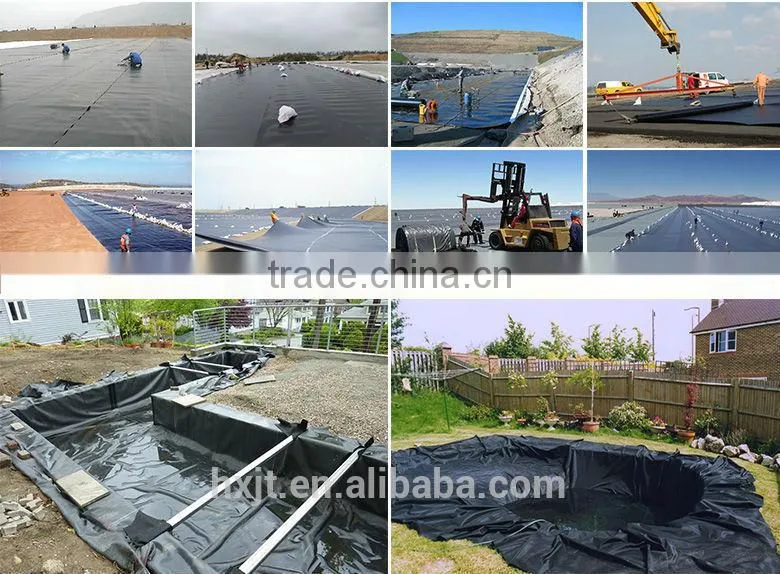

Application

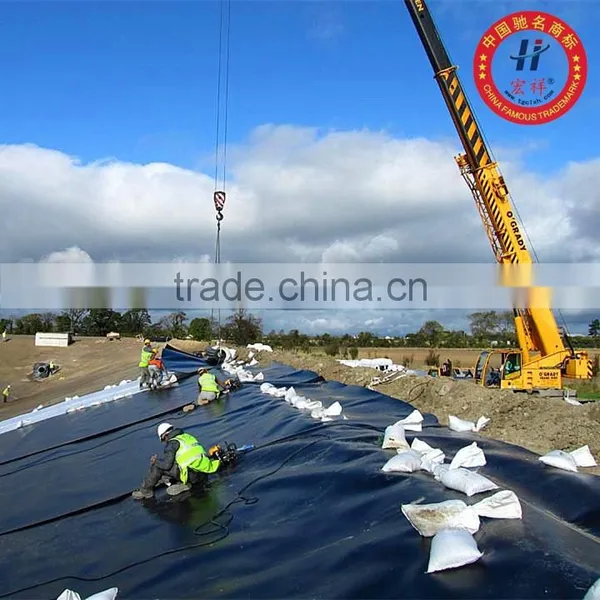

1, Environmental protection, sanitation, such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes, etc.;

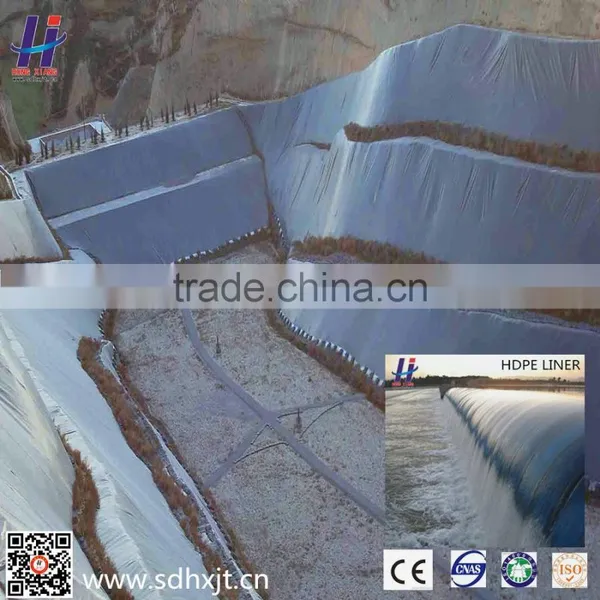

2, Water conservancy projects, such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection, etc.;
3, Municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control;
4, Polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof, etc;
5, Petrochemical, chemical plants, refineries, storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining, etc.
6, Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;
7, Agriculture: reservoir, the drinking pool, XuShuiTang, waste treatment, seepage of irrigation system;
8, Aquaculture: intensive, factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection, etc.;
9,Salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond Shan membrane.

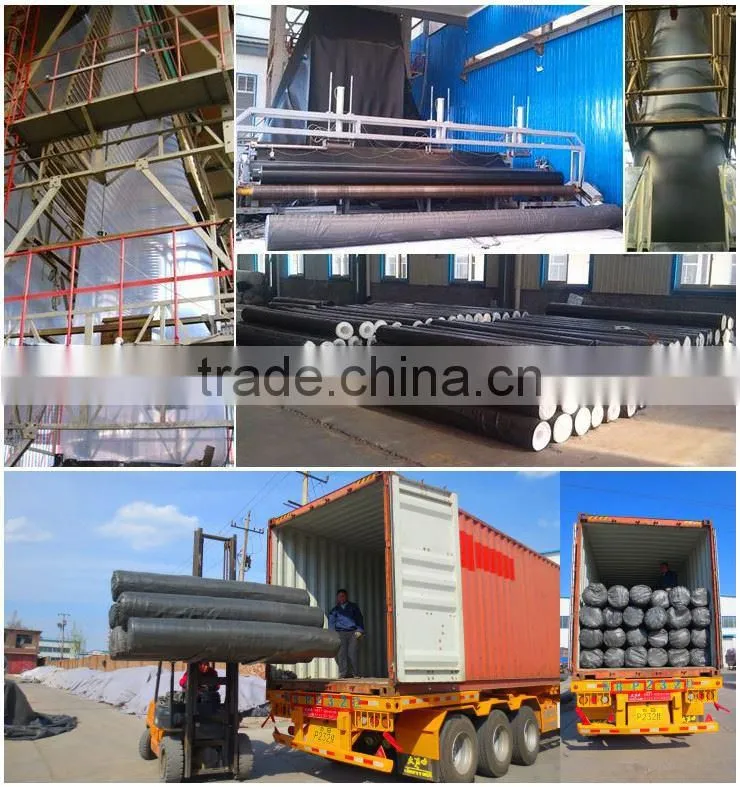

Packaging&shipping

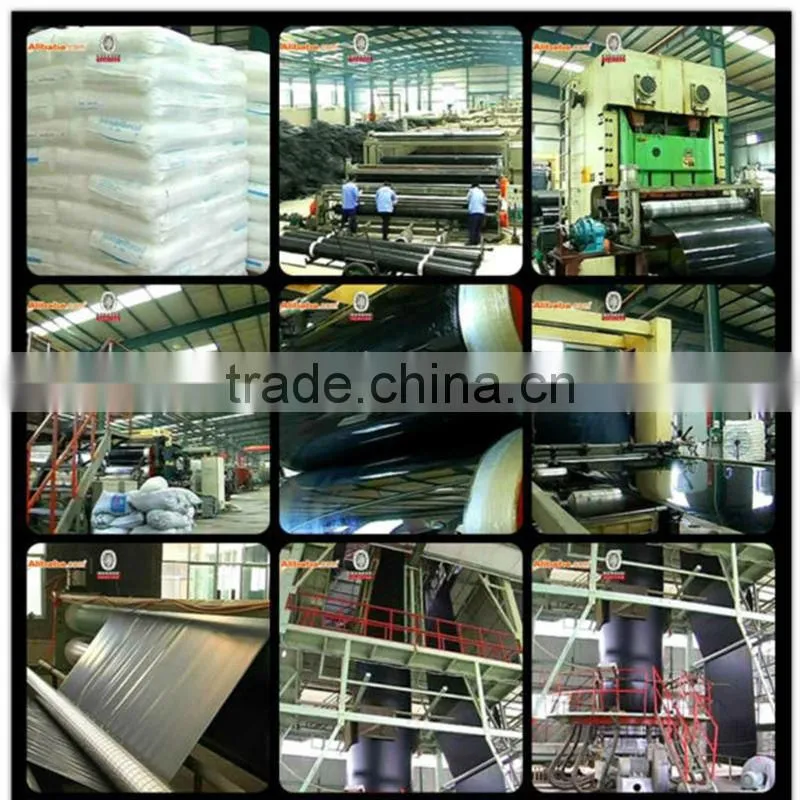

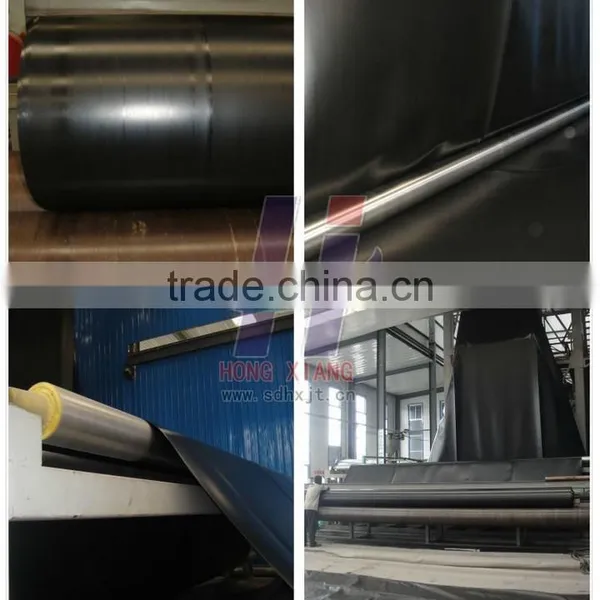

Our factory
Certificate
Customer
Sales network
Our service
1. The sample is free.
2. The quality of our products are qualified.
3. Our delivery speed will be the fastest
4. We can provide the most professinal technical guidance and service
FAQ
1. How about the delivery time?
Lead time since receipt of 30% T/T deposit payment: 3 weeks.
2. What kind of payments does we support?
T/T, L/C, Cash are accepted.
3. What's are the MOQ?
We can according to your condition to set the MOQ.
And we can provide you samples for quality inspection.
4. How to deal with the sample charge?
Accordeing to our company policy, the samples are free, we only charge the freight fee.
And we will return the freight fee If you set the order .
5. Can you produce the product according to customers' requirements ?
Sure, we are professional manufacturer, OEM and ODM are both welcome.
6. Can you tell me your main customers?
That's our customers' privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
