Place of Origin Shandong, China
Brand Name Hongxiang
Model Number hxdc-1.0
Material HDPE, LLDPE
Product Description

Tailings treatment project dedicated double color HDPE geomembrane Black and Green double color HDPE liner


Double color Geomembrane can be used HDPE or LLDPE production of the two sides of the same color can also be different,
Double color HDPE Geomembrane is an excellent product for large applications that require UV and Ozone resistance, chemical resistance or high-quality installations. Typically used in landfill and mining applications, this product is delivered in large rolls with a width of 8m and is heat welded in the field by trained technicians providing a high quality, test certified installation. Double color HDPE Geomembrane offers the most cost effective liner for large projects. Double color HDPE Geomembrane is available in thicknesses ranging from 0.75 to 3mm.


Specification

Tailings treatment project dedicated double color HDPE geomembrane Black and Green double color HDPE liner

Features
1.Low permeability

2.High ultra violet resistance
3.Resistant to wide range of chemicals

4.Economical over large project areas
5.Low puncture resistance than other membranes
6.High coefficient of linear thermal expansion
7.Available in textured finish for increased friction.



NO

  Value
Item(mm)
0.75
1.00
1.2
1.5
2.00
2.50
3.00
1
Density (g/cm2)

0.939
2
Tensile propeties
Yield strength (N/mm)
    11
    15
18
22
29
37
44
Break strength (N/mm)
20
27
33
40
53
67
80
Yield elongation (%)

12
Break elongation (%)

≥450
3
Tear resistance (N)
93
125
156
187
249
311
374
4
Puncture resistance (N)
240
320
400
480
640
800
960
5
Stree crack tensistance (h)
≥1500
6
Carbon black
Carbon black content (%)
2.0-3.0
Carbon black dispersion
Carbon black dispersion   (only near spherical agglomerates)for10 different
views 9 in categories 1   or 2 and 1 in category3.
7
Oxidative induction time(OIT)
Standard OIT(min)
100
High pressure OIT(min)
400
8
Oven aging at 85°C
Standard OIT-% retained after 90 days (%)
55
High pressure OIT-% retained after 90 days (%)
80
9
UV Resistance
Standard OIT retained after 1600 hrs (%)
50
High pressure OITretained after 1600 hrs (%)
50
10
Low tempreture impact brittle property at -70°C
Pass
11
Premeability ( g.cm/(cm2).Pa)
≤1.0×10-13
Packing & Delivery

Packed in pp woven bags


Application

Tailings treatment project dedicated double color HDPE geomembrane Black and Green double color HDPE liner

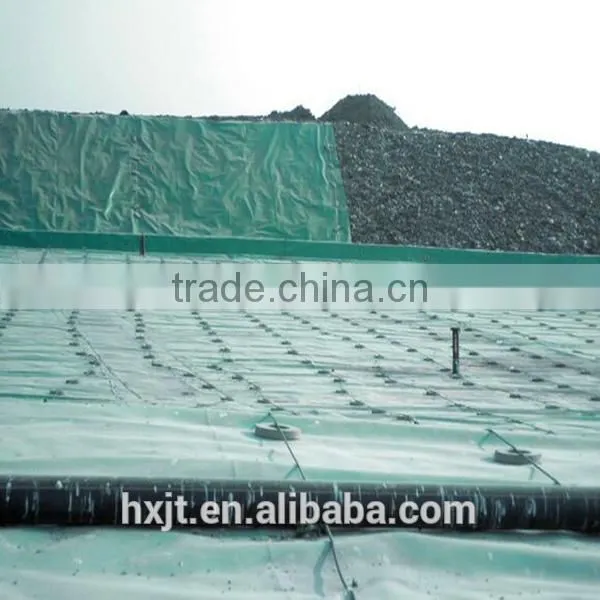

1.Landfill(primary &secondary containment)
2.Landfill caps/closures
3.Lagoon Liners
4.Mining Heap Leach Pads
5.Pond Liners
6.Agriculture Pond Liners
7.Canal Linings
8.Raw Water treatment reservoirs
9.Potable water reservoirs


Our Service

Installation


Double color HDPE geomembrane is a very technical product to install properly. HDPE requires specialized welding equipment and certified welding technicians to be installed properly.

The most common method of securing the liners on side slopes is by means of an anchor trench around the perimeter. A batten strip or an embed channel system is used to attach the liner to structures.
