Specifications
1)3D geomat2)Polyethylene (PE)
3)Tensile strength:0.8 ~ 3.5kn/m.
4)220-480g/m2
5)thickness:10~20mm
Specifications
1)3D geomat
2)Polyethylene (PE)
3)Tensile strength:0.8 ~ 3.5kn/m.
4)220-480g/m2
5)thickness:10~20mm

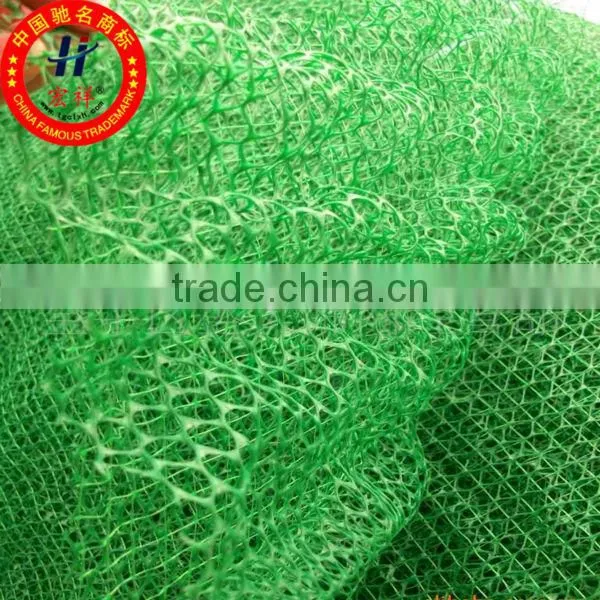

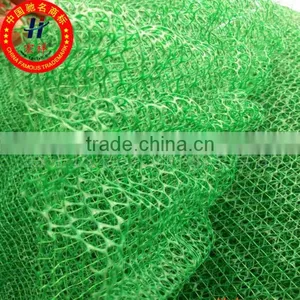

3D geomat (Erosion control mat) Characteristics:
It is a kind of 3D structural geosynthetic , which is applied to keep the water and land, increase the greening area, and improve the environment.
Function:
1.Before the greensward grows, it prevents the surface of the land from the erosion of the wind and rain.
2 .Form compound protection layer with the vegetable, standing the wash-out of the high water level and large speed current.
3.Replace the concrete, asphalt, and block, using in the slope surface protection of roadway, railway, river-way, dyke, and the hillside, etc
Specification of the erosion control mat (3D Geomat)
Item Spec |
EM2 |
EM3 |
EM4 |
EM5 |
Weight per sq.m. ≥(g/m2) |
220 |
260 |
350 |
430 |
Thickness ≥(mm) |
10 |
12 |
14 |
16 |
Width≥(m) |
2 |
|||
Length ≥(m) |
30 |
|||
Vertical tensile strength ≥(KN/m) |
0.8 |
1.4 |
2.0 |
3.2 |
Horizontal tensile strength ≥(KN/m) |
0.8 |
1.4 |
2.0 |
3.2 |
Remark |
The special spec or size can be manufactured according to the demands of the contract |
|||

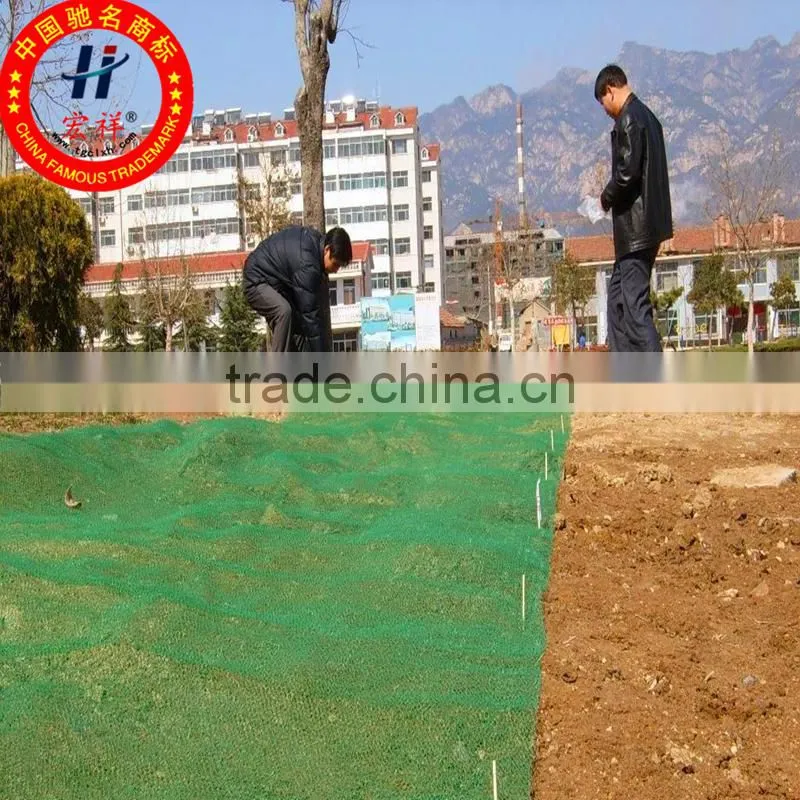

The application
Why Choose Hongxiang New Geo-material?
1. We are professional and largest in geo-material manufacturing: establish more than 20 years, HONGXIANG NEW GEO-MATERIAL producing capacity 660,000m2 per day
2. We have Professional Workers in our workshops, they have over 20 year experience on making HONGXIANG NEW GEO-MATERIAL
3. We have Professional Service Team, who can provide customer great experience and 100% technical support. No misunderstanding then No mistakes.
4. We have Extremely Strict QC System that can make sure our customer receive the quality goods.
5. We are honest and loyally. We will quote you the reasonable price and keep your trade secret loyally.
6. There are lots of more! Work with us once, you will know us very well!
Our company
